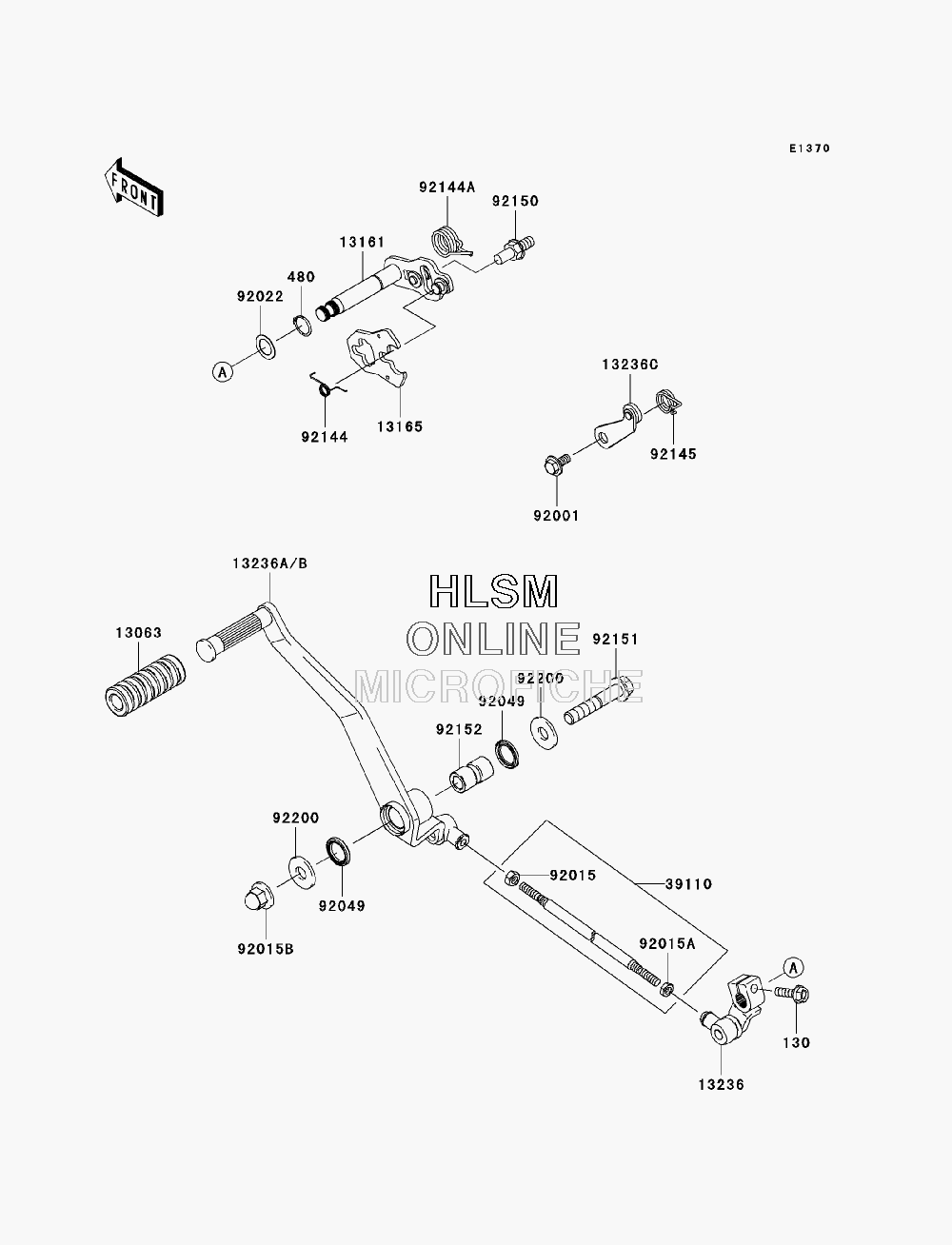

GEAR CHANGE MECHANISM для Kawasaki VULCAN 900 CUSTOM (VN900C9FA) - 2009 года выпуска`
-
№АртикулНазвание
-
130130CB0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
480480J1300 CIRCLIP-TYPE-C, 13MMCIRCLIP-TYPE-C, 13MM
-
1306313063-002 DAMPER, PEDALDAMPER, PEDAL
-
1316113161-0046 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1316513165-1151 PAWL, CHANGE LEVERPAWL, CHANGE LEVER
-
1323613236-0132 LEVER-COMPLEVER-COMP
-
13236B13236-0172 LEVER-COMPLEVER-COMP
-
13236C13236-1126 LEVER-COMP, POSITIONLEVER-COMP, POSITION
-
3911039110-1100 ROD-ASSY-TIEROD-ASSY-TIE
-
9200192001-1715 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
9201592015-1443 NUT, 6MMNUT, 6MM
-
92015A92015-1444 NUT, LEFT HANDED, 6MMNUT, LEFT HANDED, 6MM
-
92015B92015-1649 NUT, 10MMNUT, 10MM
-
9202292022-1224 WASHER, 13.2X20X0.5WASHER, 13.2X20X0.5
-
9204992049-0093 SEAL-OILSEAL-OIL
-
9214492144-1029 SPRINGSPRING
-
92144A92144-1074 SPRING, CHANGE PEDAL RETURNSPRING, CHANGE PEDAL RETURN
-
9214592145-0462 SPRING, RETURNSPRING, RETURN
-
9215092150-1869 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
9215192151-1785 BOLT, FLANGED, 10X54BOLT, FLANGED, 10X54
-
9215292152-0531 COLLAR, 10.5X17X30.5COLLAR, 10.5X17X30.5
-
9220092200-0352 WASHER, 11X26X2.6WASHER, 11X26X2.6
