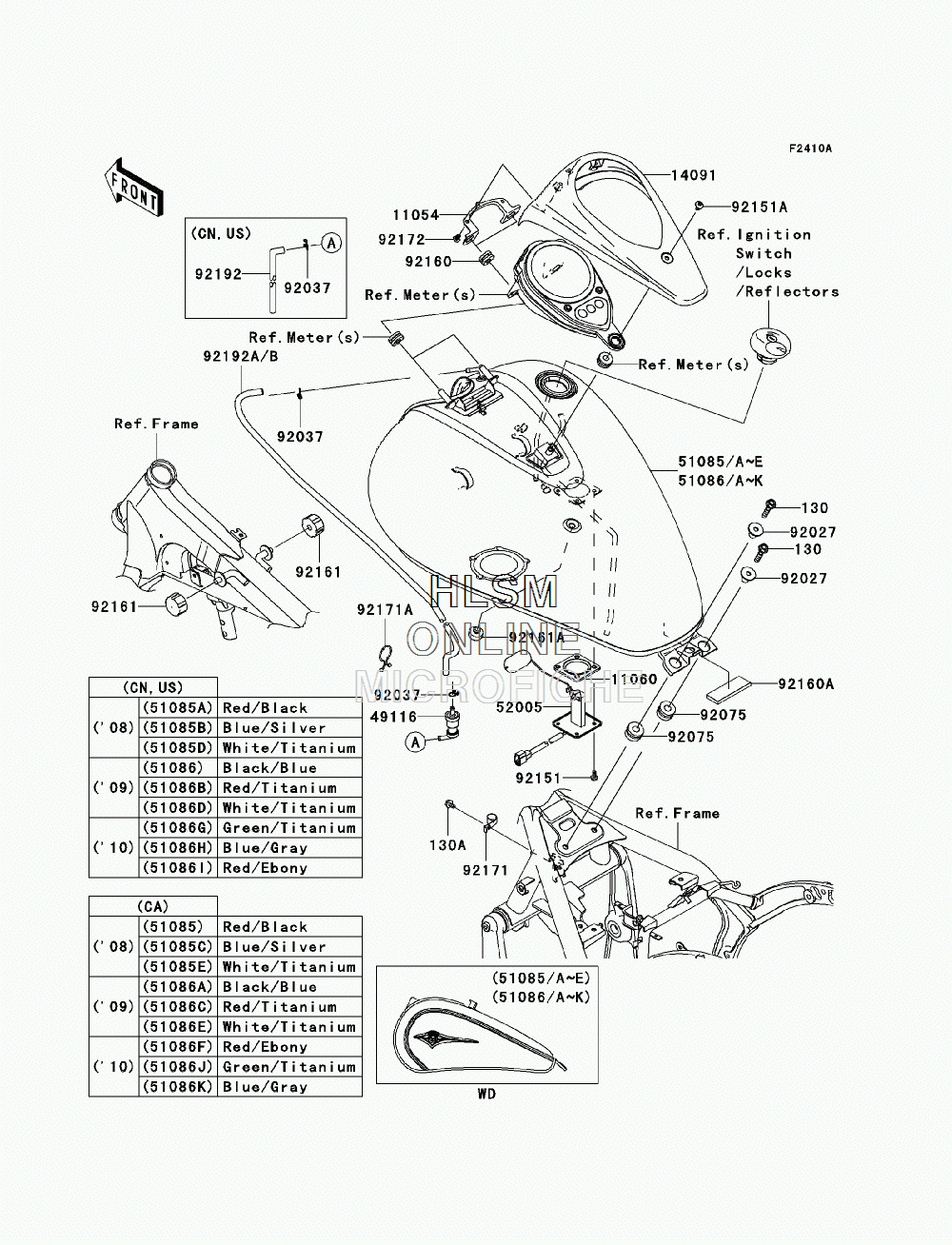

FUEL TANK для Kawasaki VULCAN 900 CLASSIC LT (VN900D9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 11054
    11054-0034 BRACKET,METER, FRONT
    BRACKET,METER, FRONT
  • 11060
    11060-1952 GASKET,FUEL GAUGE
    GASKET,FUEL GAUGE
  • 14091
    14091-0516 COVER,METER
    COVER,METER
  • 49116
    49116-0014 VALVE-ASSY,CHECK
    VALVE-ASSY,CHECK
  • 51086
    51086-5046-26C TANK-COMP-FUEL,BLACK/BLUE (EXCEPT CALIF.) (FOR 26C)
    TANK-COMP-FUEL,BLACK/BLUE (EXCEPT CALIF.) (FOR 26C)
  • 51086A
    51086-5047-26C TANK-COMP-FUEL,BLACK/BLUE (CALIF. ONLY) (FOR 26C)
    TANK-COMP-FUEL,BLACK/BLUE (CALIF. ONLY) (FOR 26C)
  • 51086B
    51086-5048-26D TANK-COMP-FUEL, RED/TITANIUM (EXCEPT CALIF.) (FOR 26D)
    TANK-COMP-FUEL, RED/TITANIUM (EXCEPT CALIF.) (FOR 26D)
  • 51086C
    51086-5049-26D TANK-COMP-FUEL, RED/TITANIUM (CALIF. ONLY) (FOR 26D)
    TANK-COMP-FUEL, RED/TITANIUM (CALIF. ONLY) (FOR 26D)
  • 51086D
    51086-5050-11T TANK-COMP-FUEL,WHITE/TITANIUM (EXCEPT CALIF.) (FOR 11T)
    TANK-COMP-FUEL,WHITE/TITANIUM (EXCEPT CALIF.) (FOR 11T)
  • 51086E
    51086-5051-11T TANK-COMP-FUEL,WHITE/TITANIUM (CALIF. ONLY) (FOR 11T)
    TANK-COMP-FUEL,WHITE/TITANIUM (CALIF. ONLY) (FOR 11T)
  • 130
    130BA0830 BOLT-FLANGED,8X30
    BOLT-FLANGED,8X30
  • 130A
    130BB0610 BOLT-FLANGED,6X10
    BOLT-FLANGED,6X10
  • 52005
    52005-0083 GAUGE,FUEL
    GAUGE,FUEL
  • 92027
    92027-1780 COLLAR,L=19.3
    COLLAR,L=19.3
  • 92037
    92037-147 CLAMP,TUBE (CALIF. ONLY)
    CLAMP,TUBE (CALIF. ONLY)
  • 92037
    92037-147 CLAMP,TUBE (EXCEPT CALIF.)
    CLAMP,TUBE (EXCEPT CALIF.)
  • 92075
    92075-1736 DAMPER
    DAMPER
  • 92151
    92151-1599 BOLT,5X12
    BOLT,5X12
  • 92151A
    92151-1940 BOLT,SOCKET,6X12
    BOLT,SOCKET,6X12
  • 92160
    92160-1162 DAMPER
    DAMPER
  • 92160A
    92160-1323 DAMPER
    DAMPER
  • 92161
    92161-0293 DAMPER,FUEL TANK
    DAMPER,FUEL TANK
  • 92161A
    92161-1065 DAMPER,SEAT
    DAMPER,SEAT
  • 92171
    92171-0595 CLAMP
    CLAMP
  • 92171A
    92171-1185 CLAMP
    CLAMP
  • 92172
    92172-0006 SCREW,TAPPING,5X14
    SCREW,TAPPING,5X14
  • 92192
    92192-0215 TUBE,TANK-SEPARATOR,BLUE (EXCEPT CALIF.)
    TUBE,TANK-SEPARATOR,BLUE (EXCEPT CALIF.)
  • 92192A
    92192-0303 TUBE,FUEL TANK-VALVE (EXCEPT CALIF.)
    TUBE,FUEL TANK-VALVE (EXCEPT CALIF.)
  • 92192B
    92192-0526 TUBE,FUEL TANK-VALVE (CALIF. ONLY)
    TUBE,FUEL TANK-VALVE (CALIF. ONLY)
