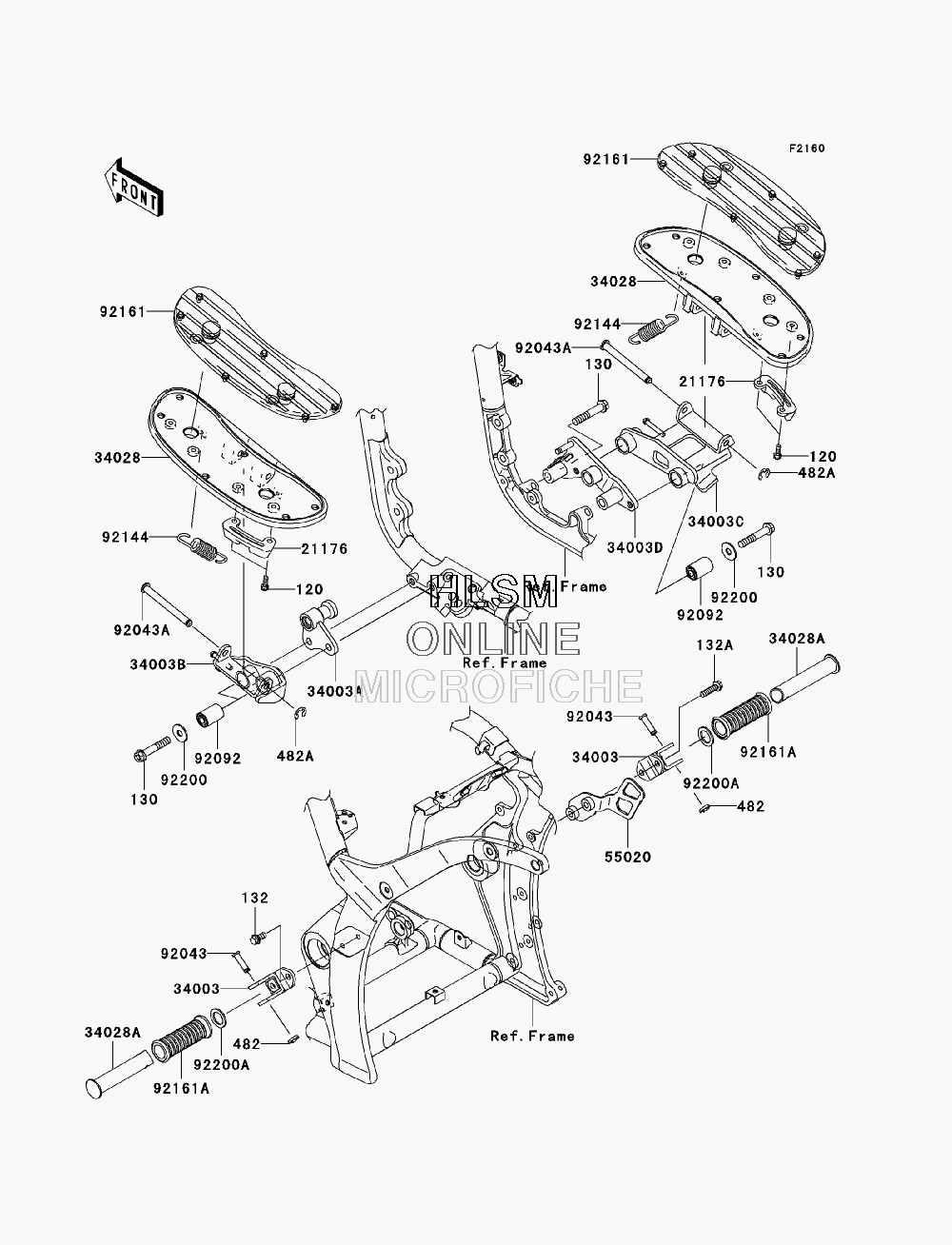

FOOTRESTS для Kawasaki VULCAN 2000 CLASSIC (VN2000H9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 120
    120CB0616 BOLT-SOCKET, 6X16
    BOLT-SOCKET, 6X16
  • 130
    130BB1055 BOLT-FLANGED, 10X55
    BOLT-FLANGED, 10X55
  • 132
    132BB0816 BOLT-FLANGED-SMALL, 8X16
    BOLT-FLANGED-SMALL, 8X16
  • 132A
    132BB0830 BOLT-FLANGED-SMALL, 8X30
    BOLT-FLANGED-SMALL, 8X30
  • 482
    482EA7000 CIRCLIP-TYPE-E
    CIRCLIP-TYPE-E
  • 482A
    482EA8000 CIRCLIP-TYPE-E, 8MM
    CIRCLIP-TYPE-E, 8MM
  • 21176
    21176-0021 SENSOR, BANK
    SENSOR, BANK
  • 34003
    34003-0030-18R HOLDER-STEP, REAR, BLACK
    HOLDER-STEP, REAR, BLACK
  • 34003A
    34003-0066-18R HOLDER-STEP, FRONT, LEFT HAND, F. S. BLACK
    HOLDER-STEP, FRONT, LEFT HAND, F. S. BLACK
  • 34003B
    34003-0067-18R HOLDER-STEP, FRONT, LEFT HAND, F. S. BLACK
    HOLDER-STEP, FRONT, LEFT HAND, F. S. BLACK
  • 34003C
    34003-0068-18R HOLDER-STEP, FRONT, RIGHT HAND, F. S. BLACK
    HOLDER-STEP, FRONT, RIGHT HAND, F. S. BLACK
  • 34003D
    34003-0069-18R HOLDER-STEP, FRONT, RIGHT HAND, F. S. BLACK
    HOLDER-STEP, FRONT, RIGHT HAND, F. S. BLACK
  • 34028
    34028-0011 STEP, FRONT
    STEP, FRONT
  • 34028A
    34028-0017 STEP, REAR
    STEP, REAR
  • 55020
    55020-0416-18R GUARD, MUFFLER, F. S. BLACK
    GUARD, MUFFLER, F. S. BLACK
  • 92043
    92043-1339 PIN, 8X36.5
    PIN, 8X36.5
  • 92043A
    92043-1707 PIN, 10X98.5
    PIN, 10X98.5
  • 92092
    92092-0005 BUSHING-RUBBER
    BUSHING-RUBBER
  • 92144
    92144-1266 SPRING
    SPRING
  • 92161
    92161-0126 DAMPER, FOOT BOARD
    DAMPER, FOOT BOARD
  • 92161A
    92161-0232 DAMPER, STEP
    DAMPER, STEP
  • 92200
    92200-0113 WASHER, 10.3X28X2.3
    WASHER, 10.3X28X2.3
  • 92200A
    92200-1482 WASHER, 22.5X33X2.3
    WASHER, 22.5X33X2.3
