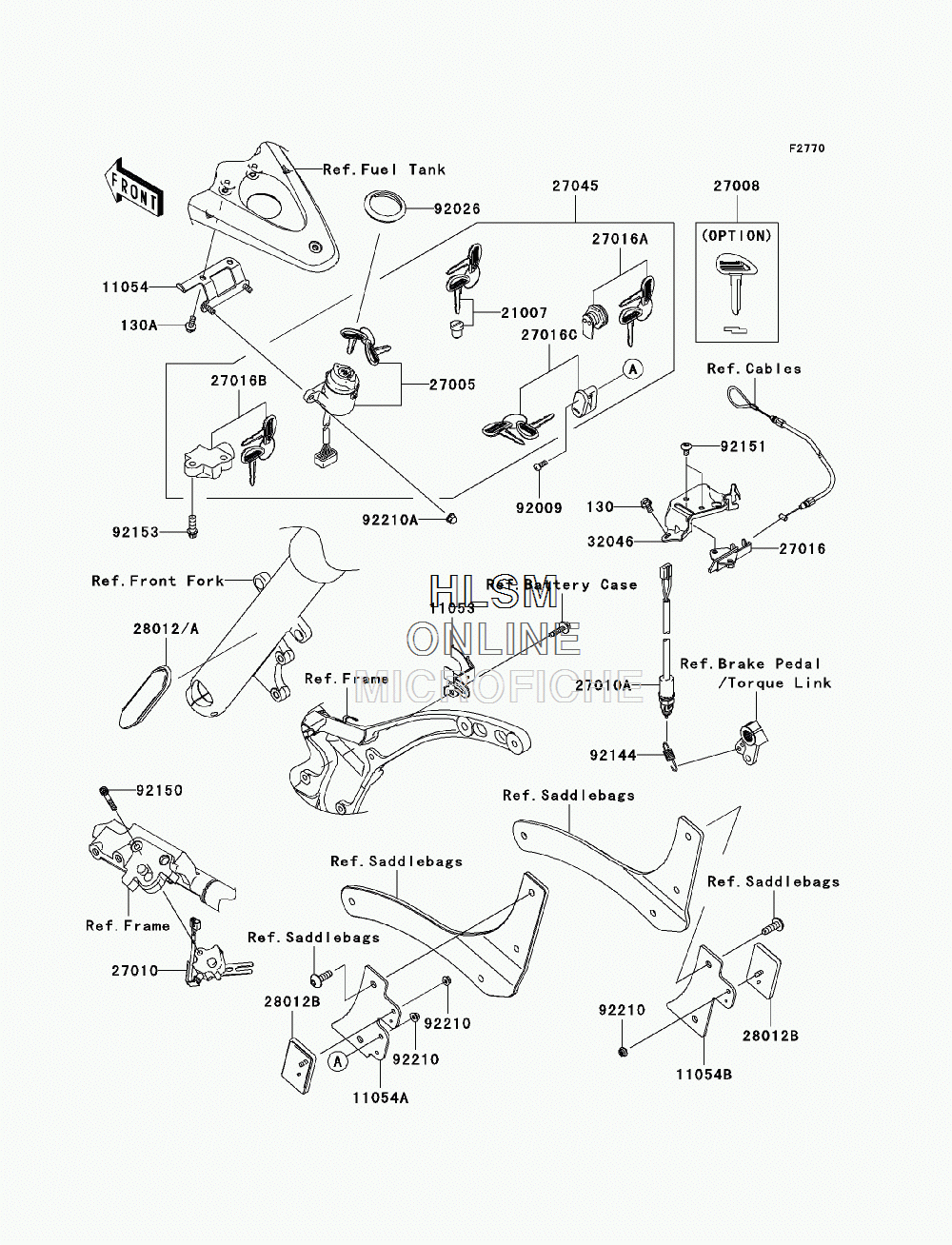

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki VULCAN 2000 CLASSIC LT (VN2000J9F) - 2009 года выпуска`
-
№АртикулНазвание
-
130130BB0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
130A130BB0614 BOLT-FLANGED,6X14BOLT-FLANGED,6X14
-
1105311053-0920 BRACKET,SIDE COVER LOCKBRACKET,SIDE COVER LOCK
-
1105411054-0095 BRACKET,IGNITION SWITCHBRACKET,IGNITION SWITCH
-
11054A11054-0357 BRACKET, REFLECTOR, REAR, LEFT HANDBRACKET, REFLECTOR, REAR, LEFT HAND
-
11054B11054-0358 BRACKET, REFLECTOR, REAR, RIGHT HANDBRACKET, REFLECTOR, REAR, RIGHT HAND
-
2100721007-5053 ROTOR,LOCK,TANK CAPROTOR,LOCK,TANK CAP
-
2700527005-0027 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-1211 KEY-LOCK,BLANK (OPTION)KEY-LOCK,BLANK (OPTION)
-
2701027010-0011 SWITCH,SIDE STANDSWITCH,SIDE STAND
-
27010A27010-0023 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-1115 LOCK-ASSY,SEAT STRIKERLOCK-ASSY,SEAT STRIKER
-
27016A27016-5279 LOCK-ASSY,LIDLOCK-ASSY,LID
-
27016B27016-5298 LOCK-ASSY,STEERINGLOCK-ASSY,STEERING
-
27016C27016-5311 LOCK-ASSY,HELMETLOCK-ASSY,HELMET
-
2704527045-5324 SWITCH-ASSYSWITCH-ASSY
-
28012A28012-0019 REFLECTOR-REFLEX, FRONT,SIDEREFLECTOR-REFLEX, FRONT,SIDE
-
28012B28012-1088 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
3204632046-0037 BRACKET-SEATBRACKET-SEAT
-
9200992009-1341 SCREW,5X14SCREW,5X14
-
9202692026-0018 SPACER,IGNITION SWITCHSPACER,IGNITION SWITCH
-
9214492144-1141 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215092150-1958 BOLT,SOCKET,6X40BOLT,SOCKET,6X40
-
9215192151-1219 BOLT,SOCKET,6X12BOLT,SOCKET,6X12
-
9215392153-1273 BOLT,TORX,8X22BOLT,TORX,8X22
-
9221092210-0007 NUT,FLANGED,5MMNUT,FLANGED,5MM
-
92210A92210-1252 NUT,CAP,6MMNUT,CAP,6MM
