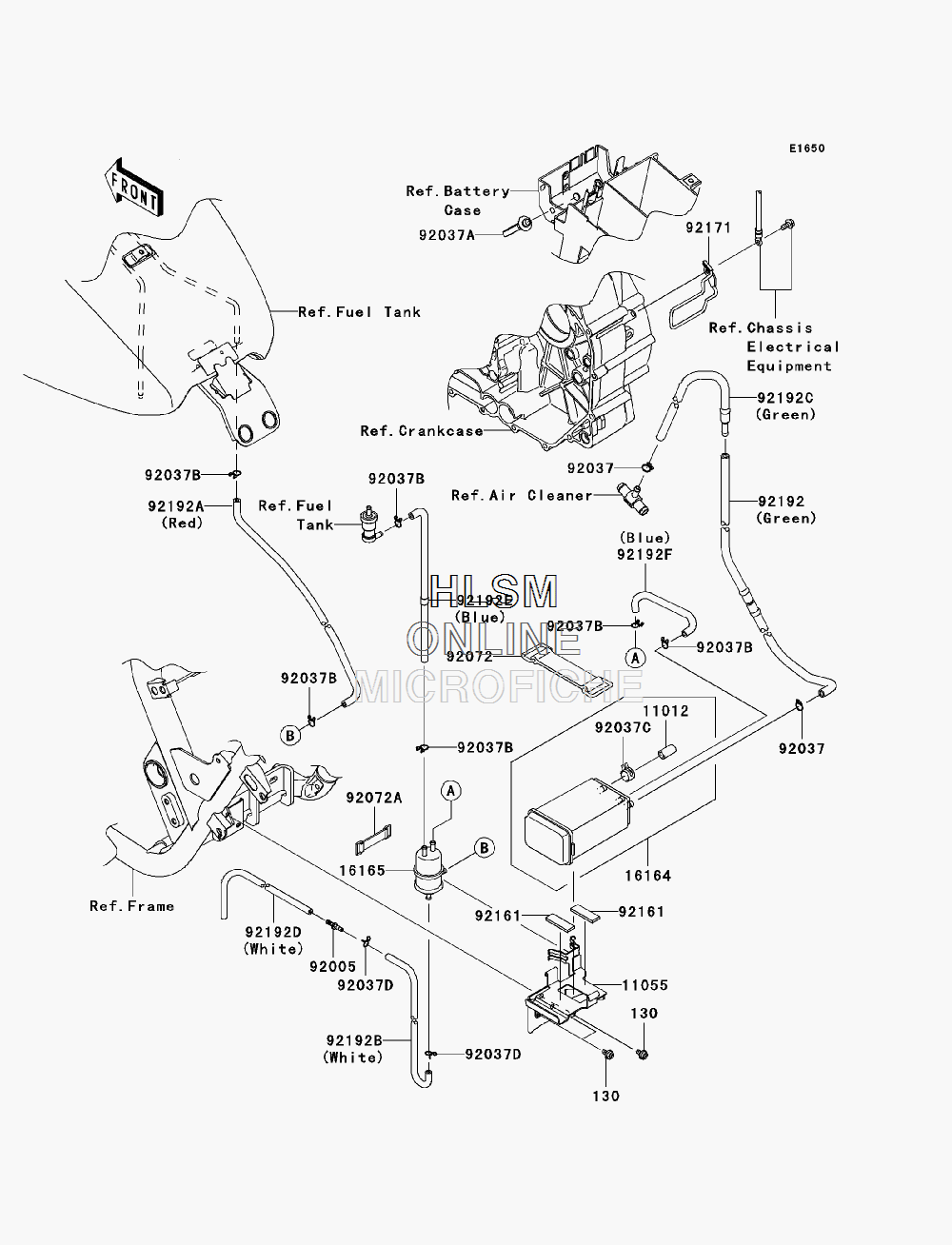

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki VULCAN 1700 NOMAD (VN1700C9F) - 2009 года выпуска`
-
№АртикулНазвание
-
130130BB0610 BOLT-FLANGED,6X10 (CALIF. ONLY)BOLT-FLANGED,6X10 (CALIF. ONLY)
-
1101211012-1388 CAP,CANISTER (CALIF. ONLY)CAP,CANISTER (CALIF. ONLY)
-
1105511055-1653 BRACKET (CALIF. ONLY)BRACKET (CALIF. ONLY)
-
1616416164-1054 CANISTER (CALIF. ONLY)CANISTER (CALIF. ONLY)
-
1616516165-1001 SEPARATOR (CALIF. ONLY)SEPARATOR (CALIF. ONLY)
-
9200592005-1206 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
9203792037-1104 CLAMP,HOSE (CALIF. ONLY)CLAMP,HOSE (CALIF. ONLY)
-
92037A92037-1459 CLAMP,CABLE (CALIF. ONLY)CLAMP,CABLE (CALIF. ONLY)
-
92037B92037-147 CLAMP,TUBE (CALIF. ONLY)CLAMP,TUBE (CALIF. ONLY)
-
92037C92037-1512 CLAMP,CANISTER (CALIF. ONLY)CLAMP,CANISTER (CALIF. ONLY)
-
92037D92037-1712 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9207292072-1384 BAND (CALIF. ONLY)BAND (CALIF. ONLY)
-
92072A92072-1419 BAND,L=50 (CALIF. ONLY)BAND,L=50 (CALIF. ONLY)
-
9216192161-0124 DAMPER (CALIF. ONLY)DAMPER (CALIF. ONLY)
-
9217192171-1798 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9219292192-0657 TUBE,CANISTER-1ST FTG,GREEN (CALIF. ONLY)TUBE,CANISTER-1ST FTG,GREEN (CALIF. ONLY)
-
92192A92192-0660 TUBE,SEPARATOR-TANK, RED (CALIF. ONLY)TUBE,SEPARATOR-TANK, RED (CALIF. ONLY)
-
92192B92192-0692 TUBE,FITTING-SEP.WHITE (CALIF. ONLY)TUBE,FITTING-SEP.WHITE (CALIF. ONLY)
-
92192C92192-0760 TUBE,1ST FTG-2ND FTG,GREEN (CALIF. ONLY)TUBE,1ST FTG-2ND FTG,GREEN (CALIF. ONLY)
-
92192D92192-0761 TUBE,THROBO-FITTING,WHITE (CALIF. ONLY)TUBE,THROBO-FITTING,WHITE (CALIF. ONLY)
-
92192E92192-0809 TUBE,CHECKVALVE-SEP.,BLUE (CALIF. ONLY)TUBE,CHECKVALVE-SEP.,BLUE (CALIF. ONLY)
-
92192F92192-0824 TUBE,CANISTER-SEPARATOR,BLUE (CALIF. ONLY)TUBE,CANISTER-SEPARATOR,BLUE (CALIF. ONLY)
