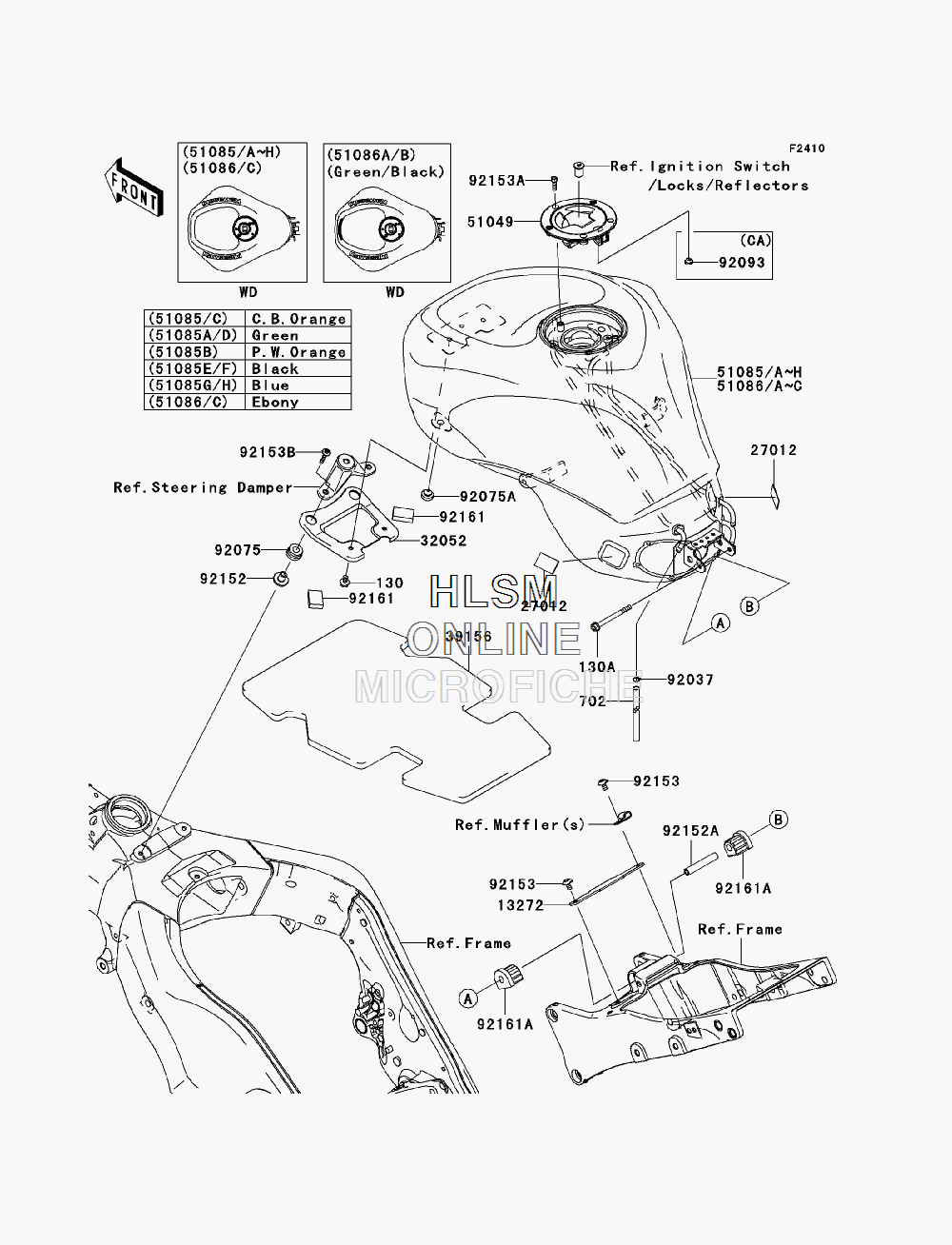

FUEL TANK для Kawasaki NINJA ZX-10R (ZX1000E9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 13272
    13272-0505 PLATE,FUEL TANK, REAR
    PLATE,FUEL TANK, REAR
  • 27012
    27012-0115 HOOK
    HOOK
  • 32052
    32052-0095 BRACKET-TANK, FRONT
    BRACKET-TANK, FRONT
  • 39156
    39156-0451 PAD,FUEL TANK
    PAD,FUEL TANK
  • 51049
    51049-0014 CAP-TANK,FUEL
    CAP-TANK,FUEL
  • 51085
    51085-5303-17L TANK-COMP-FUEL,C.B.ORANGE (CALIF. ONLY) (FOR 17L)
    TANK-COMP-FUEL,C.B.ORANGE (CALIF. ONLY) (FOR 17L)
  • 51085C
    51085-5409-17L TANK-COMP-FUEL,C.B.ORANGE (EXCEPT CALIF.) (FOR 17L)
    TANK-COMP-FUEL,C.B.ORANGE (EXCEPT CALIF.) (FOR 17L)
  • 51085D
    51085-5409-777 TANK-COMP-FUEL,L.GREEN (CANADA ONLY) (FOR 777)
    TANK-COMP-FUEL,L.GREEN (CANADA ONLY) (FOR 777)
  • 51086
    51086-5045-H8 TANK-COMP-FUEL,EBONY (EXCEPT CALIF.) (FOR H8)
    TANK-COMP-FUEL,EBONY (EXCEPT CALIF.) (FOR H8)
  • 51086C
    51086-5070-H8 TANK-COMP-FUEL,EBONY (CALIF. ONLY) (FOR H8)
    TANK-COMP-FUEL,EBONY (CALIF. ONLY) (FOR H8)
  • 92037
    92037-010 CLAMP,TUBE
    CLAMP,TUBE
  • 92075
    92075-1123 DAMPER,RUBBER
    DAMPER,RUBBER
  • 92075A
    92075-1983 DAMPER
    DAMPER
  • 92093
    92093-1030 SEAL,FUEL TANK CAP (CALIF. ONLY)
    SEAL,FUEL TANK CAP (CALIF. ONLY)
  • 92152
    92152-0091 COLLAR
    COLLAR
  • 92152A
    92152-1182 COLLAR,6.8X10X60
    COLLAR,6.8X10X60
  • 92153
    92153-0410 BOLT,SOCKET,6X10
    BOLT,SOCKET,6X10
  • 92153A
    92153-1616 BOLT,SOCKET,5X16
    BOLT,SOCKET,5X16
  • 92153B
    92153-1627 BOLT,SOCKET,6X30
    BOLT,SOCKET,6X30
  • 130
    130BA0610 BOLT-FLANGED,6X10
    BOLT-FLANGED,6X10
  • 130A
    130BB0670 BOLT-FLANGED,6X70
    BOLT-FLANGED,6X70
  • 702
    702A06750 TUBE-RUBBER,6X9X750
    TUBE-RUBBER,6X9X750
  • 92161
    92161-0585 DAMPER
    DAMPER
  • 92161A
    92161-1330 DAMPER,FUEL TANK, REAR
    DAMPER,FUEL TANK, REAR
