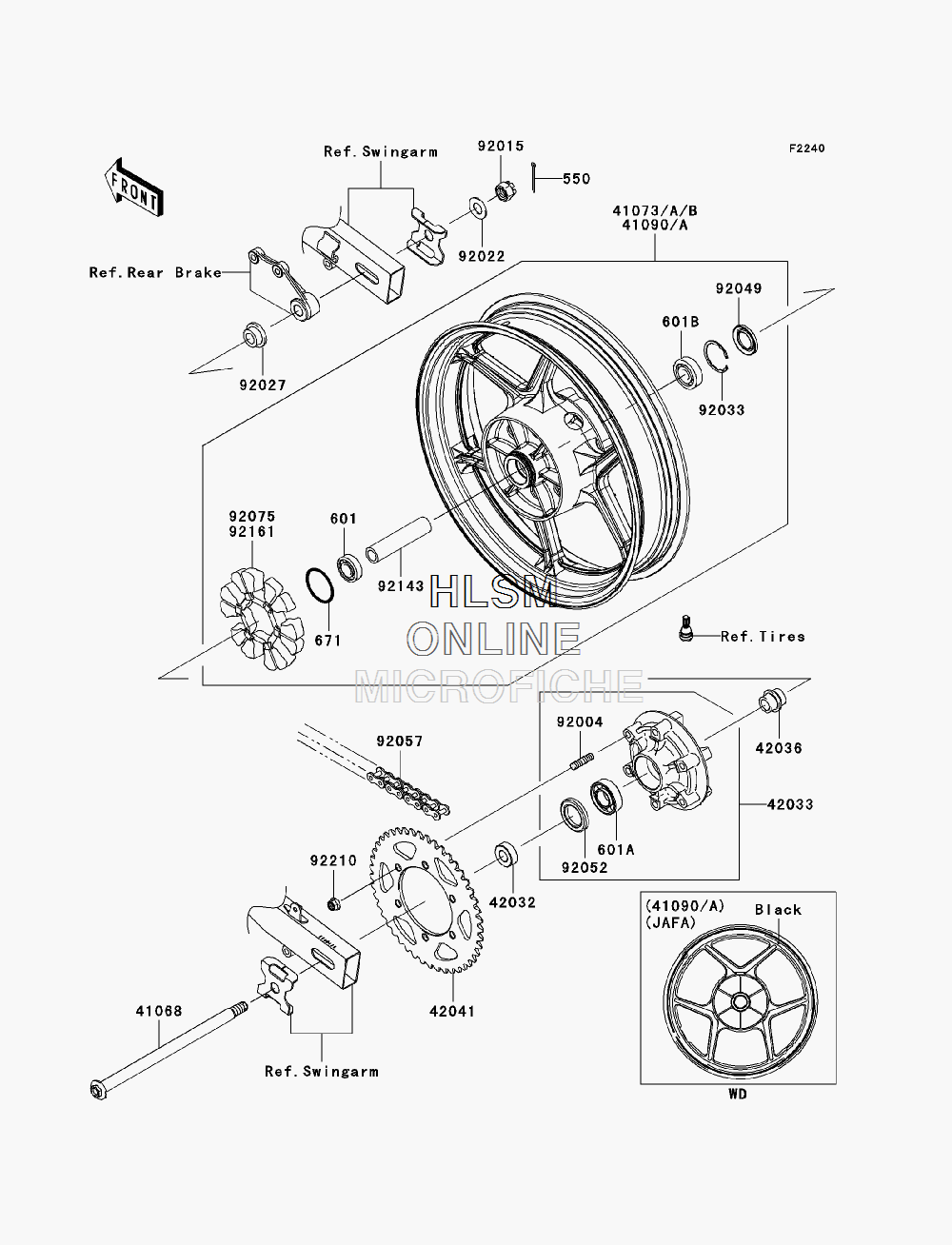

WHEEL - REAR W/ CHAIN для Kawasaki NINJA 250R (EX250J9FA) - 2009 года выпуска

  • №
    Артикул
    Название
  • 550
    550AA4035 PIN-COTTER,4.0X35
    PIN-COTTER,4.0X35
  • 601
    601B6203UU BEARING-BALL,#6203UUC3
    BEARING-BALL,#6203UUC3
  • 601A
    601B6205G BEARING-BALL,#6205G
    BEARING-BALL,#6205G
  • 601B
    601B6303UU BEARING-BALL,6303LLUC3/2ASU68
    BEARING-BALL,6303LLUC3/2ASU68
  • 671
    671B2550 O RING
    O RING
  • 41068
    41068-1223 AXLE, REAR
    AXLE, REAR
  • 41073B
    41073-0153-15U WHEEL-ASSY, REAR,BLACK/GREEN
    WHEEL-ASSY, REAR,BLACK/GREEN
  • 42032
    42032-063 COLLAR, REAR AXLE,L=13
    COLLAR, REAR AXLE,L=13
  • 42033
    42033-0030 COUPLING-ASSY, REAR HUB
    COUPLING-ASSY, REAR HUB
  • 42036
    42036-1055 SLEEVE, REAR HUB,L=30
    SLEEVE, REAR HUB,L=30
  • 42041
    42041-0011 SPROCKET-HUB,45T
    SPROCKET-HUB,45T
  • 92004
    92004-0028 STUD,10X19
    STUD,10X19
  • 92015
    92015-1947 NUT,CASTLE,16MM
    NUT,CASTLE,16MM
  • 92022
    92022-1916 WASHER,17.5X34X2.0
    WASHER,17.5X34X2.0
  • 92027
    92027-1785 COLLAR, REAR HUB
    COLLAR, REAR HUB
  • 92033
    92033-1042 RING-SNAP,47MM
    RING-SNAP,47MM
  • 92049
    92049-1056 SEAL-OIL,BJN28475
    SEAL-OIL,BJN28475
  • 92052
    92052-006 SEAL-OIL,TWC35527
    SEAL-OIL,TWC35527
  • 92057
    92057-1411 CHAIN,DRIVE,EK520SR-O2X106L
    CHAIN,DRIVE,EK520SR-O2X106L
  • 92143
    92143-1416 COLLAR, REAR HUB,L=111
    COLLAR, REAR HUB,L=111
  • 92161
    92161-0700 DAMPER, REAR HUB SHOCK
    DAMPER, REAR HUB SHOCK
  • 92210
    92210-0276 NUT,LOCK,FLANGED,10MM
    NUT,LOCK,FLANGED,10MM
