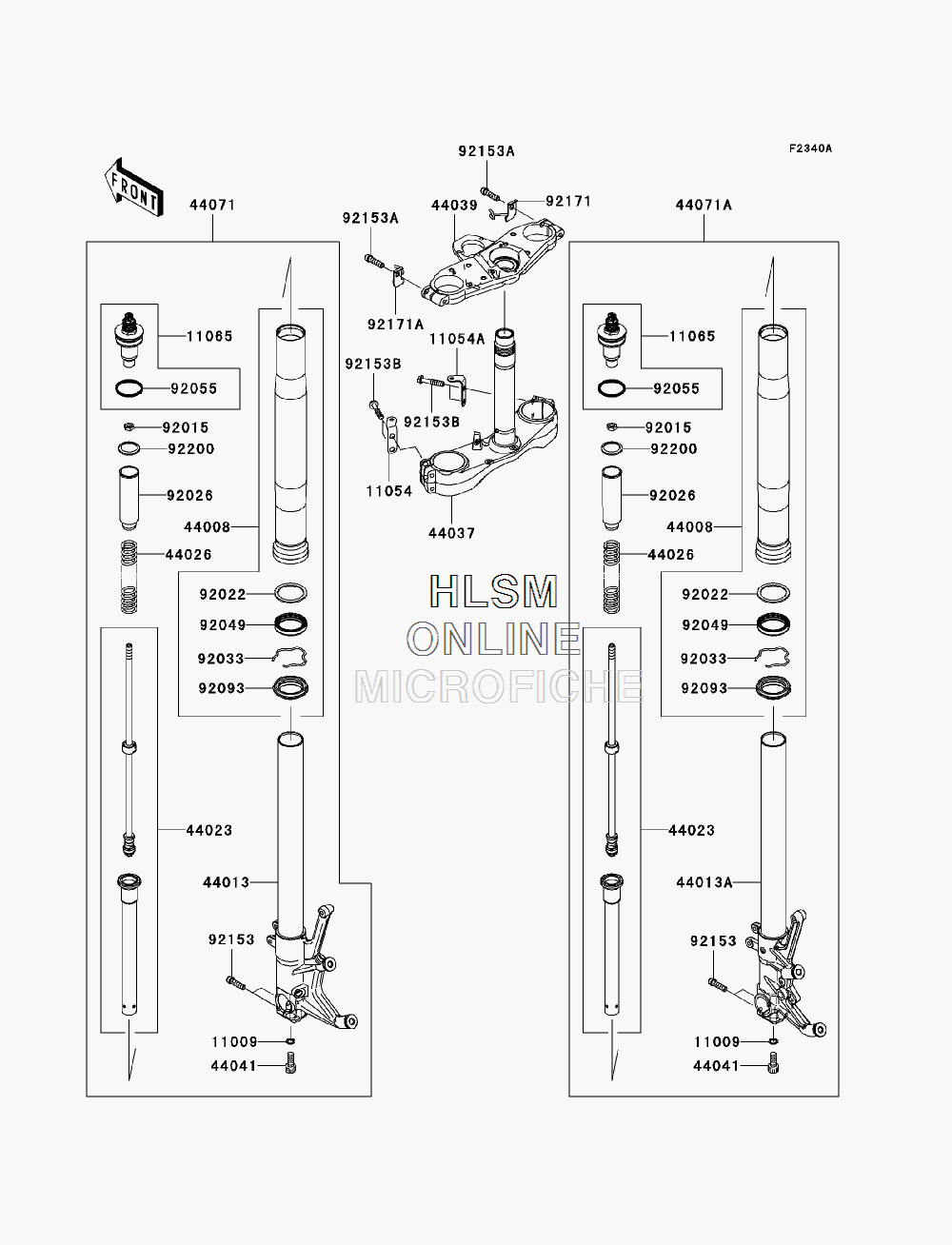

FRONT FORK (JKBZGNA1 9A022220 AND ABOVE) для Kawasaki CONCOURS 14 ABS (ZG1400A9F) - 2009 года выпуска
-
№АртикулНазвание
-
1100911009-1325 GASKET, PIPE-COMP-SUSPGASKET, PIPE-COMP-SUSP
-
1105411054-0480 BRACKET, HARNESS CLAMP, LEFT HANDBRACKET, HARNESS CLAMP, LEFT HAND
-
11054A11054-1223 BRACKET, UNDER BRACKET, RIGHT HANDBRACKET, UNDER BRACKET, RIGHT HAND
-
1106511065-0337-11G CAP, FORK, GRAYCAP, FORK, GRAY
-
4400844008-0052-KX PIPE-FORK OUTER, SILVERPIPE-FORK OUTER, SILVER
-
4401344013-0096-18R PIPE-FORK INNER, LEFT HAND, BLACKPIPE-FORK INNER, LEFT HAND, BLACK
-
44013A44013-0097-18R PIPE-FORK INNER, RIGHT HAND, BLACKPIPE-FORK INNER, RIGHT HAND, BLACK
-
4402344023-0082 CYLINDER-SET-FORKCYLINDER-SET-FORK
-
4402644026-0107 SPRING-FRONT FORKSPRING-FRONT FORK
-
4403744037-0061 HOLDER-FORK UNDERHOLDER-FORK UNDER
-
4403944039-0052-458 HOLDER-FORK UPPER, P. SILVERHOLDER-FORK UPPER, P. SILVER
-
4404144041-040 BOLT, SOCKET, FORK CYLINDERBOLT, SOCKET, FORK CYLINDER
-
4407144071-5054 DAMPER-ASSY, FORK, LEFT HANDDAMPER-ASSY, FORK, LEFT HAND
-
44071A44071-5055 DAMPER-ASSY, FORK, RIGHT HANDDAMPER-ASSY, FORK, RIGHT HAND
-
9201592015-1795 NUTNUT
-
9202292022-1299 WASHERWASHER
-
9202692026-0045 SPACER, FORKSPACER, FORK
-
9203392033-1077 RING-SNAPRING-SNAP
-
9204992049-1522 SEAL-OIL, FORK OUTER TUBESEAL-OIL, FORK OUTER TUBE
-
9205592055-1333 RING-O, FORK, AIR TUBERING-O, FORK, AIR TUBE
-
9209392093-1480 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
9215392153-0006 BOLT, SOCKET, 8X40BOLT, SOCKET, 8X40
-
92153A92153-0506 BOLT, SOCKET, 8X40BOLT, SOCKET, 8X40
-
92153B92153-1884 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
9217192171-1632 CLAMP, CABLECLAMP, CABLE
-
92171A92171-1634 CLAMP, CABLECLAMP, CABLE
-
9220092200-0085 WASHERWASHER
