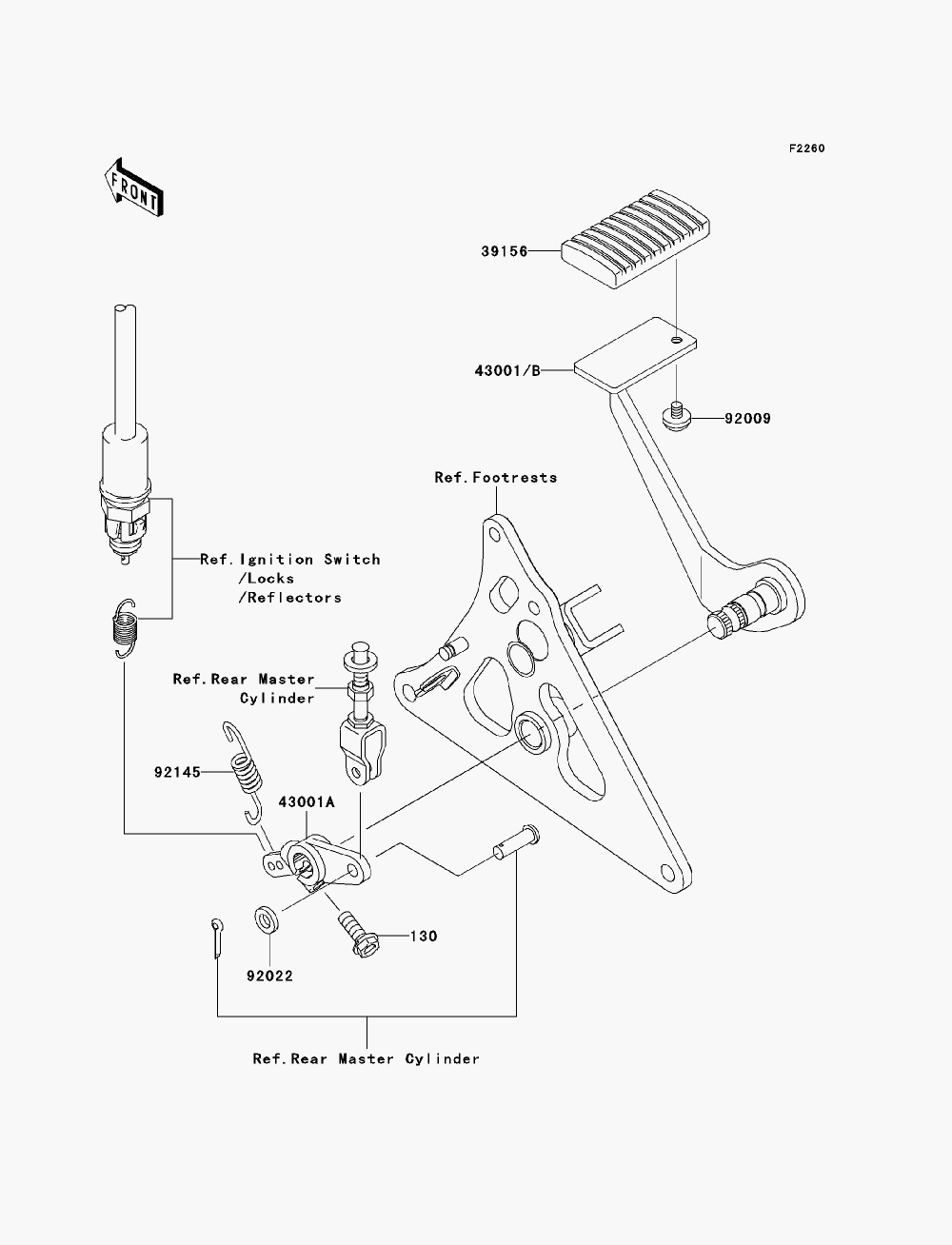

BRAKE PEDAL W/ TORQUE LINK для Kawasaki VULCAN 1600 MEAN STREAK (VN1600B8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130J0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
3915639156-1677 PAD, BRAKE PEDALPAD, BRAKE PEDAL
-
4300143001-0071 LEVER-BRAKE, PEDAL (CANADA ONLY)LEVER-BRAKE, PEDAL (CANADA ONLY)
-
43001A43001-1431 LEVER-BRAKELEVER-BRAKE
-
43001B43001-1438 LEVER-BRAKE, PEDAL (USA ONLY)LEVER-BRAKE, PEDAL (USA ONLY)
-
9200992009-1677 SCREW, 6X8SCREW, 6X8
-
9202292022-1582 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
-
9214592145-0191 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
