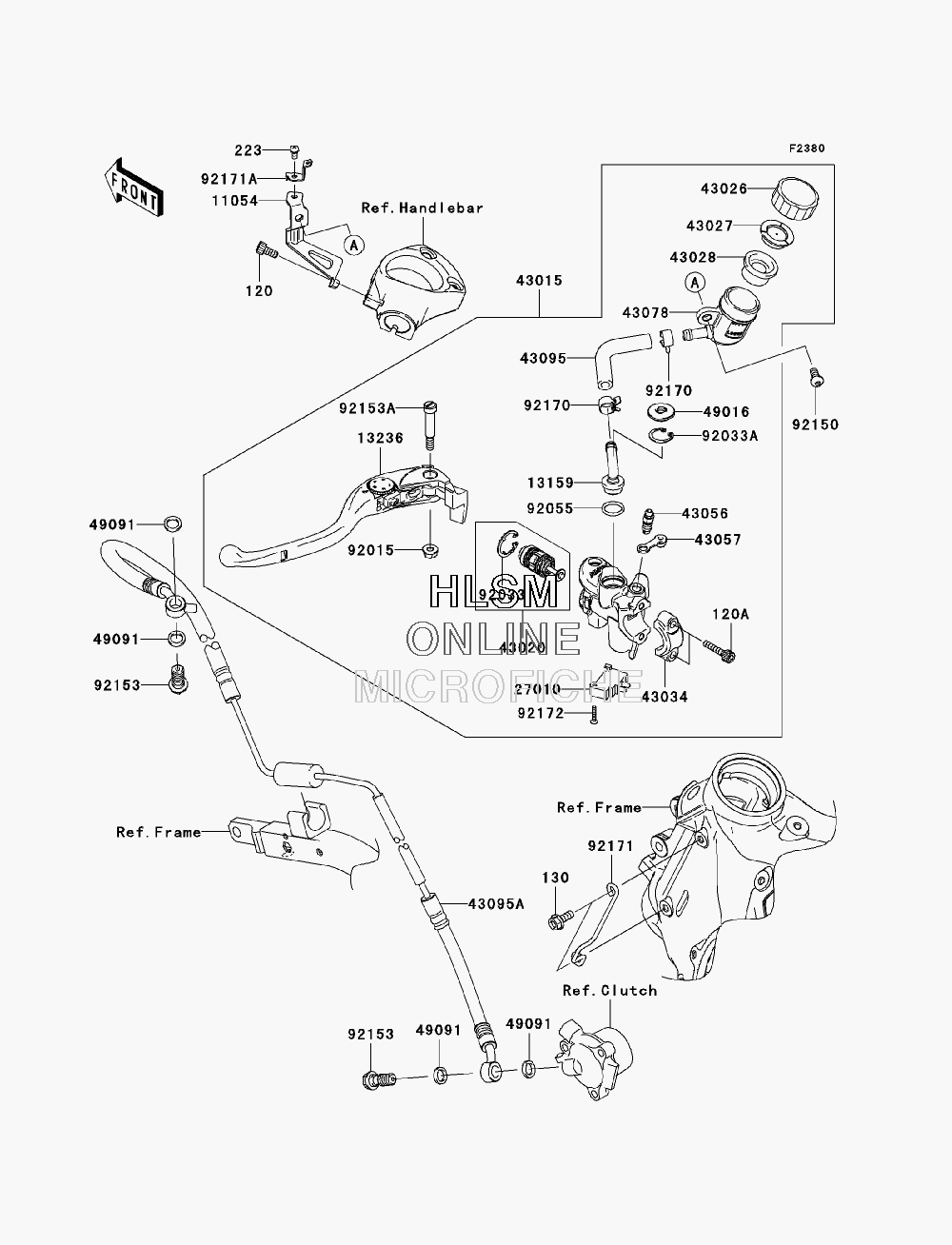

CLUTCH MASTER CYLINDER для Kawasaki NINJA ZX-14 (ZX1400C8FA) - 2008 года выпуска`
-
№АртикулНазвание
-
120120CA0612 BOLT-SOCKET, 6X12BOLT-SOCKET, 6X12
-
120A120CB0622 BOLT-SOCKET, 6X22BOLT-SOCKET, 6X22
-
130130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
223223AA0408 SCREW-PAN-WS-CROS, 4X8SCREW-PAN-WS-CROS, 4X8
-
1105411054-0207 BRACKET, CLUTCH RESERVOIRBRACKET, CLUTCH RESERVOIR
-
1315913159-1061 CONNECTORCONNECTOR
-
1323613236-0104 LEVER-COMP, CLUTCHLEVER-COMP, CLUTCH
-
2701027010-0051 SWITCH, CLUTCHSWITCH, CLUTCH
-
4301543015-0115 CYLINDER-ASSY-MASTER, CLUTCHCYLINDER-ASSY-MASTER, CLUTCH
-
4302043020-0013 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1070 CAP-BRAKECAP-BRAKE
-
4302743027-1054 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1073 DIAPHRAGMDIAPHRAGM
-
4303443034-1016 HOLDER-BRAKE, MASTER CYLINDERHOLDER-BRAKE, MASTER CYLINDER
-
4305643056-1056 BREATHER-BRAKEBREATHER-BRAKE
-
4305743057-1001 CAP-BREATHERCAP-BREATHER
-
4307843078-1102 RESERVOIRRESERVOIR
-
4309543095-0040 HOSE-BRAKE, FRONT MASTER CYLINDERHOSE-BRAKE, FRONT MASTER CYLINDER
-
43095A43095-0410 HOSE-BRAKE, CLUTCHHOSE-BRAKE, CLUTCH
-
4901649016-1147 COVER-SEALCOVER-SEAL
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9201592015-1233 NUT, FLANGED, 6MM, BLACKNUT, FLANGED, 6MM, BLACK
-
9203392033-0034 RING-SNAPRING-SNAP
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9205592055-1251 RING-O, MASTER CYLINDERRING-O, MASTER CYLINDER
-
9215092150-1836 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
92153A92153-0868 BOLT, LEVERBOLT, LEVER
-
9217092170-1091 CLAMP, HOSECLAMP, HOSE
-
9217192171-0633 CLAMP, CLUTCH HOSECLAMP, CLUTCH HOSE
-
92171A92171-0637 CLAMP, RESERVOIR CAPCLAMP, RESERVOIR CAP
-
9217292172-0349 SCREW, 3X16SCREW, 3X16
