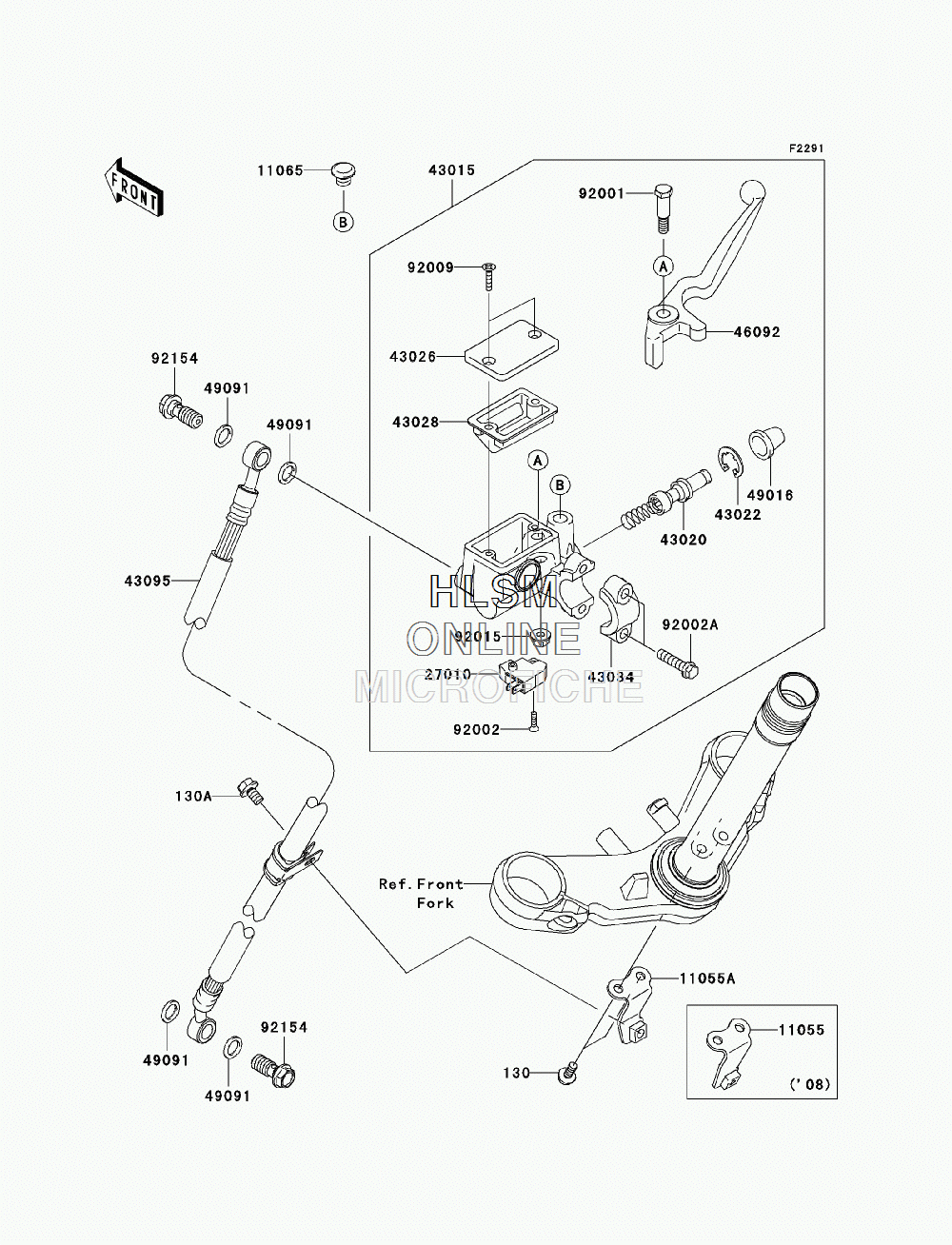

BRAKE - MASTER CYLINDER - FRONT для Kawasaki NINJA 250R (EX250J8F) - 2008 года выпуска`
-
№АртикулНазвание
-
130130BB0512 BOLT-FLANGED,5X12BOLT-FLANGED,5X12
-
130A130BB0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
1105511055-0485 BRACKET,BRAKE HOSE CLAMPBRACKET,BRAKE HOSE CLAMP
-
1106511065-0218 CAP,DUMMYCAP,DUMMY
-
2701027010-1170 SWITCH,BRAKESWITCH,BRAKE
-
4301543015-0110 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-1095 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302243022-1010 STOPPER-BRAKE,PISTONSTOPPER-BRAKE,PISTON
-
4302643026-1074 CAP-BRAKECAP-BRAKE
-
4302843028-1061 DIAPHRAGMDIAPHRAGM
-
4303443034-1016 HOLDER-BRAKE,MASTER CYLINDERHOLDER-BRAKE,MASTER CYLINDER
-
4309543095-0450 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4609246092-0028 LEVER-GRIP, FRONT BRAKELEVER-GRIP, FRONT BRAKE
-
4901649016-1044 COVER-SEAL,MASTER CYLINDERCOVER-SEAL,MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
9200192001-1728 BOLT, FRONT BRAKE LEVERBOLT, FRONT BRAKE LEVER
-
9200292002-1323 BOLT,SCREW,4X12BOLT,SCREW,4X12
-
92002A92002-1894 BOLTBOLT
-
9200992009-1458 SCREW,4MMSCREW,4MM
-
9201592015-1233 NUT,FLANGED,6MM,BLACKNUT,FLANGED,6MM,BLACK
-
9215492154-0226 BOLT,OIL,L=23BOLT,OIL,L=23
