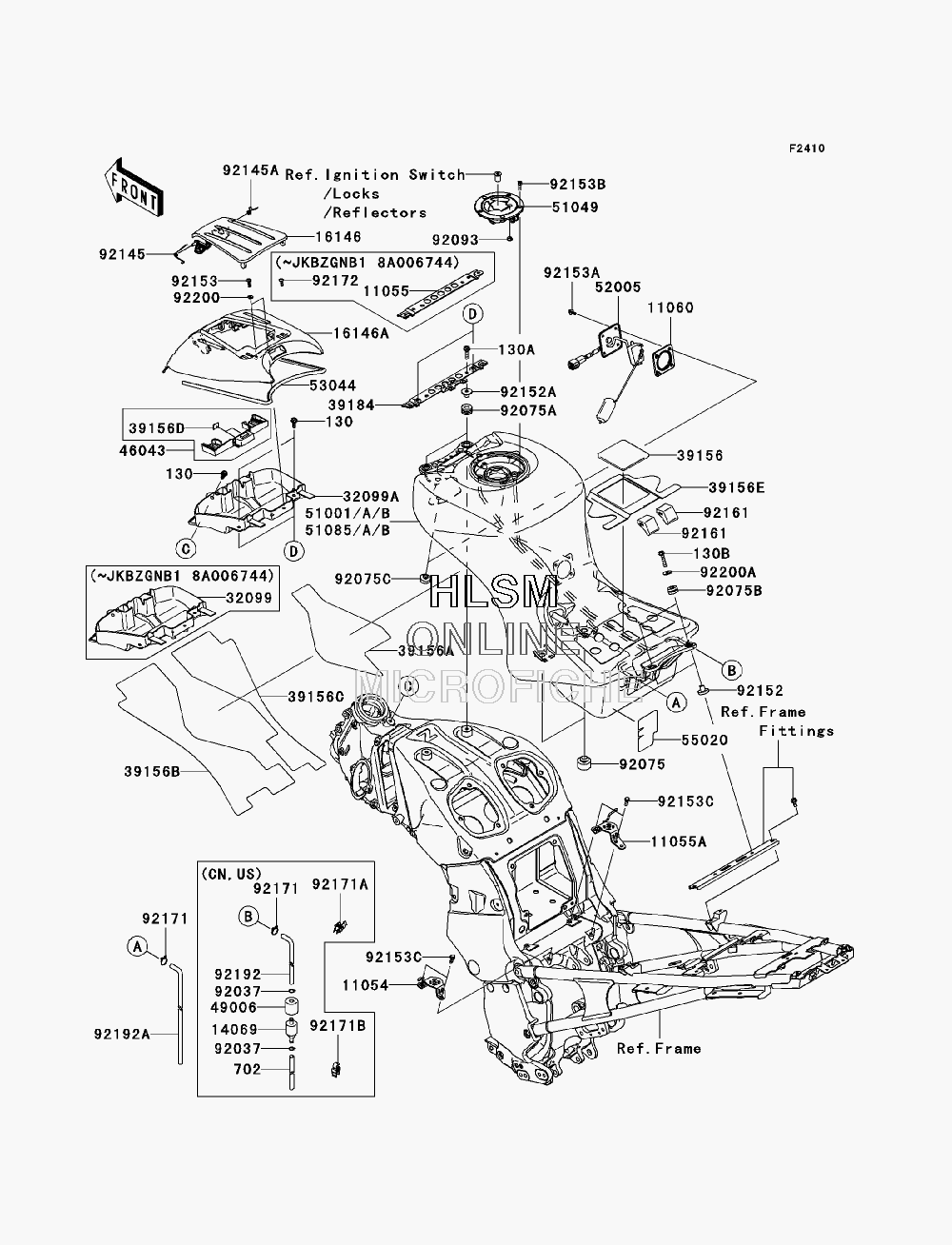

FUEL TANK для Kawasaki CONCOURS 14 (ZG1400B8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 11054
    11054-0681 BRACKET, FUEL TANK, CNT, LEFT HAND
    BRACKET, FUEL TANK, CNT, LEFT HAND
  • 11055
    11055-0347 BRACKET, CASE (UP TO JKBZGNB1 8A006744)
    BRACKET, CASE (UP TO JKBZGNB1 8A006744)
  • 11055A
    11055-0348 BRACKET, FUEL TANK, CNT, RIGHT HAND
    BRACKET, FUEL TANK, CNT, RIGHT HAND
  • 11060
    11060-1952 GASKET, FUEL GAUGE
    GASKET, FUEL GAUGE
  • 14069
    14069-1051 BREATHER (EXCEPT CALIF.)
    BREATHER (EXCEPT CALIF.)
  • 16146
    16146-0081 COVER-ASSY
    COVER-ASSY
  • 16146A
    16146-0084 COVER-ASSY
    COVER-ASSY
  • 32099
    32099-0031 CASE (UP TO JKBZGNB1 8A006744)
    CASE (UP TO JKBZGNB1 8A006744)
  • 32099A
    32099-0039 CASE (JKBZGNB1 8A006745 AND ABOVE)
    CASE (JKBZGNB1 8A006745 AND ABOVE)
  • 39156
    39156-0129 PAD, SEAT
    PAD, SEAT
  • 39156A
    39156-0147 PAD, FUEL TANK, CNT
    PAD, FUEL TANK, CNT
  • 39156B
    39156-0173 PAD, FUEL TANK, LEFT HAND
    PAD, FUEL TANK, LEFT HAND
  • 39156C
    39156-0174 PAD, FUEL TANK, RIGHT HAND
    PAD, FUEL TANK, RIGHT HAND
  • 39156D
    39156-0176 PAD
    PAD
  • 39156E
    39156-0373 PAD, FUEL TANK
    PAD, FUEL TANK
  • 39184
    39184-0012 BRACKET-ASSY, CASE (JKBZGNB1 8A006745 AND ABOVE)
    BRACKET-ASSY, CASE (JKBZGNB1 8A006745 AND ABOVE)
  • 46043
    46043-0005 KNOB-ASSY
    KNOB-ASSY
  • 49006
    49006-1267 BOOT, BREATHER (EXCEPT CALIF.)
    BOOT, BREATHER (EXCEPT CALIF.)
  • 51001A
    51001-0216-17N TANK-COMP-FUEL, N. SILVER (EXCEPT CALIF.)
    TANK-COMP-FUEL, N. SILVER (EXCEPT CALIF.)
  • 51049
    51049-0012 CAP-TANK, FUEL
    CAP-TANK, FUEL
  • 51085A
    51085-5280-17N TANK-COMP-FUEL, N. SILVER (CALIF. ONLY)
    TANK-COMP-FUEL, N. SILVER (CALIF. ONLY)
  • 52005
    52005-0026 GAUGE, FUEL
    GAUGE, FUEL
  • 53044
    53044-0028 TRIM
    TRIM
  • 55020
    55020-0290 GUARD, FUEL TANK
    GUARD, FUEL TANK
  • 92037
    92037-147 CLAMP, TUBE (EXCEPT CALIF.)
    CLAMP, TUBE (EXCEPT CALIF.)
  • 92075
    92075-015 DAMPER
    DAMPER
  • 92075A
    92075-1690 DAMPER
    DAMPER
  • 92075B
    92075-209 DAMPER
    DAMPER
  • 92075C
    92075-281 DAMPER
    DAMPER
  • 92093
    92093-1030 SEAL, FUEL TANK CAP
    SEAL, FUEL TANK CAP
  • 92145
    92145-0474 SPRING
    SPRING
  • 92145A
    92145-0475 SPRING
    SPRING
  • 92152
    92152-0364 COLLAR
    COLLAR
  • 92152A
    92152-0365 COLLAR
    COLLAR
  • 92153
    92153-1244 BOLT, SOCKET, 5X16 (JKBZGNB1 8A006745 AND ABOVE)
    BOLT, SOCKET, 5X16 (JKBZGNB1 8A006745 AND ABOVE)
  • 92153A
    92153-1421 BOLT, FLANGED, 5X12
    BOLT, FLANGED, 5X12
  • 92153B
    92153-1616 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92153C
    92153-1694 BOLT, FLANGED, 6X20
    BOLT, FLANGED, 6X20
  • 92161
    92161-0458 DAMPER
    DAMPER
  • 92171
    92171-0573 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92171
    92171-0573 CLAMP (EXCEPT CALIF.)
    CLAMP (EXCEPT CALIF.)
  • 92171A
    92171-1708 CLAMP (EXCEPT CALIF.)
    CLAMP (EXCEPT CALIF.)
  • 130
    130BA0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 130A
    130BA0625 BOLT-FLANGED, 6X25
    BOLT-FLANGED, 6X25
  • 130B
    130BA0630 BOLT-FLANGED, 6X30
    BOLT-FLANGED, 6X30
  • 702
    702A07200 TUBE-RUBBER, 7X10X200 (EXCEPT CALIF.)
    TUBE-RUBBER, 7X10X200 (EXCEPT CALIF.)
  • 92171B
    92171-1709 CLAMP (EXCEPT CALIF.)
    CLAMP (EXCEPT CALIF.)
  • 92172
    92172-0265 SCREW, TAPPING, 5X14 (UP TO JKBZGNB1 8A006744)
    SCREW, TAPPING, 5X14 (UP TO JKBZGNB1 8A006744)
  • 92192
    92192-0611 TUBE (EXCEPT CALIF.)
    TUBE (EXCEPT CALIF.)
  • 92192A
    92192-0693 TUBE, DRAIN
    TUBE, DRAIN
  • 92200
    92200-0006 WASHER, NYLONE, 5.3X11.5X0.5 (JKBZGNB1 8A006745 AND ABOVE)
    WASHER, NYLONE, 5.3X11.5X0.5 (JKBZGNB1 8A006745 AND ABOVE)
  • 92200A
    92200-0283 WASHER, 6.5X20X1.6
    WASHER, 6.5X20X1.6
