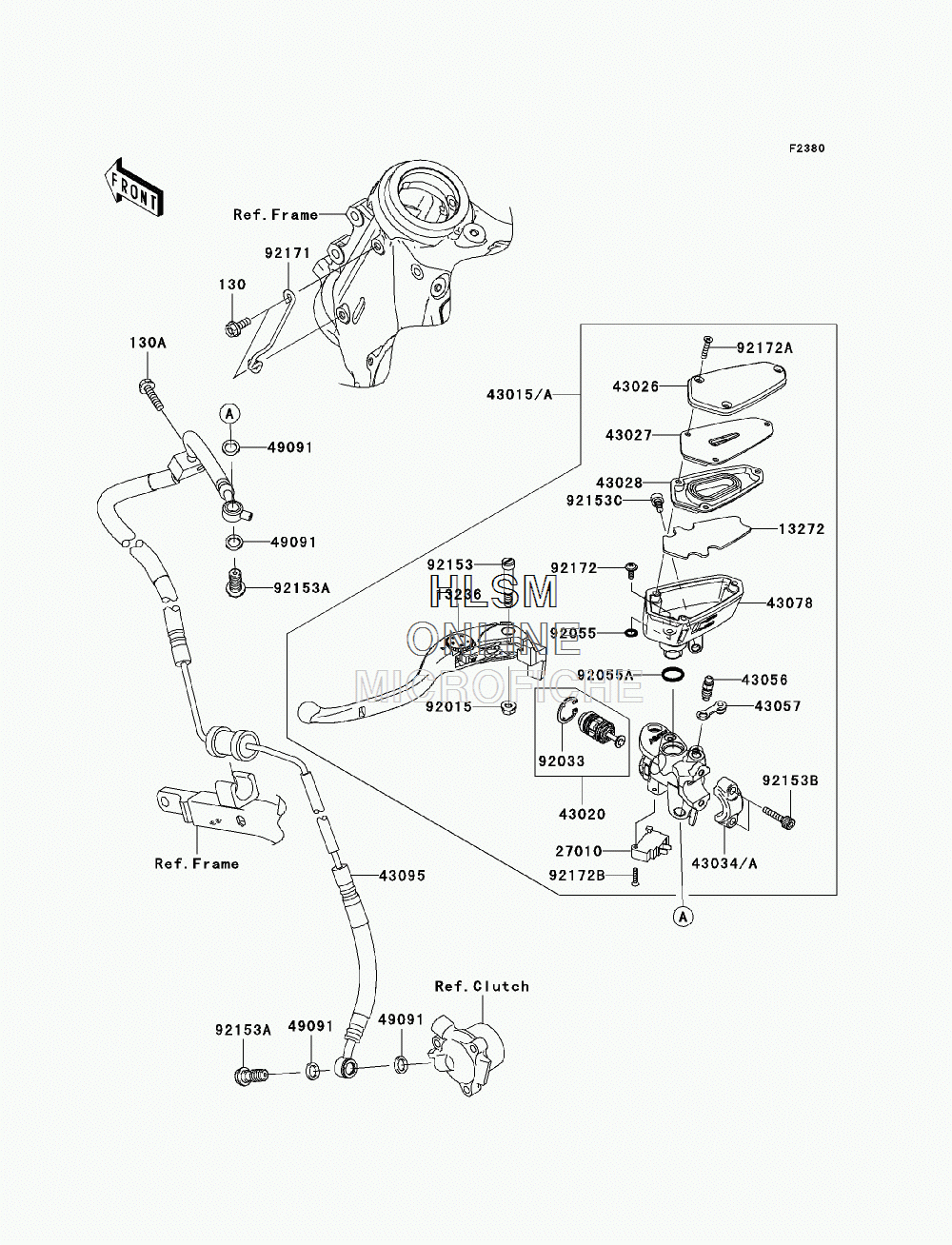

CLUTCH MASTER CYLINDER для Kawasaki CONCOURS 14 ABS (ZG1400A8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 130
    130BA0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 130A
    130BA0625 BOLT-FLANGED, 6X25
    BOLT-FLANGED, 6X25
  • 13236
    13236-0104 LEVER-COMP, CLUTCH
    LEVER-COMP, CLUTCH
  • 13272
    13272-0220 PLATE
    PLATE
  • 27010
    27010-0051 SWITCH, CLUTCH
    SWITCH, CLUTCH
  • 43015
    43015-0085 CYLINDER-ASSY-MASTER, CLUTCH (UP TO JKBZGNA1 9A022218)
    CYLINDER-ASSY-MASTER, CLUTCH (UP TO JKBZGNA1 9A022218)
  • 43020
    43020-0013 PISTON-COMP-BRAKE
    PISTON-COMP-BRAKE
  • 43026
    43026-0012 CAP-BRAKE
    CAP-BRAKE
  • 43027
    43027-0003 PLATE-DIAPHRAGM
    PLATE-DIAPHRAGM
  • 43028
    43028-0008 DIAPHRAGM
    DIAPHRAGM
  • 43034A
    43034-1016 HOLDER-BRAKE, MASTER CYLINDER (UP TO JKBZGNA1 9A022218)
    HOLDER-BRAKE, MASTER CYLINDER (UP TO JKBZGNA1 9A022218)
  • 43056
    43056-1056 BREATHER-BRAKE
    BREATHER-BRAKE
  • 43057
    43057-1001 CAP-BREATHER
    CAP-BREATHER
  • 43078
    43078-0049 RESERVOIR
    RESERVOIR
  • 43095
    43095-0298 HOSE-BRAKE, CLUTCH
    HOSE-BRAKE, CLUTCH
  • 49091
    49091-0001 WASHER-SEAL, 10.1X14.5X1.5
    WASHER-SEAL, 10.1X14.5X1.5
  • 92015
    92015-1233 NUT, FLANGED, 6MM, BLACK
    NUT, FLANGED, 6MM, BLACK
  • 92033
    92033-0034 RING-SNAP
    RING-SNAP
  • 92055
    92055-0137 RING-O
    RING-O
  • 92055A
    92055-1251 RING-O, MASTER CYLINDER
    RING-O, MASTER CYLINDER
  • 92153
    92153-0868 BOLT, LEVER
    BOLT, LEVER
  • 92153A
    92153-1419 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92153B
    92153-1518 BOLT, SOCKET, 6X22
    BOLT, SOCKET, 6X22
  • 92153C
    92153-1853 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 92171
    92171-0633 CLAMP, CLUTCH HOSE
    CLAMP, CLUTCH HOSE
  • 92172
    92172-0319 SCREW
    SCREW
  • 92172A
    92172-0320 SCREW, 4X20
    SCREW, 4X20
  • 92172B
    92172-0349 SCREW, 3X16
    SCREW, 3X16
