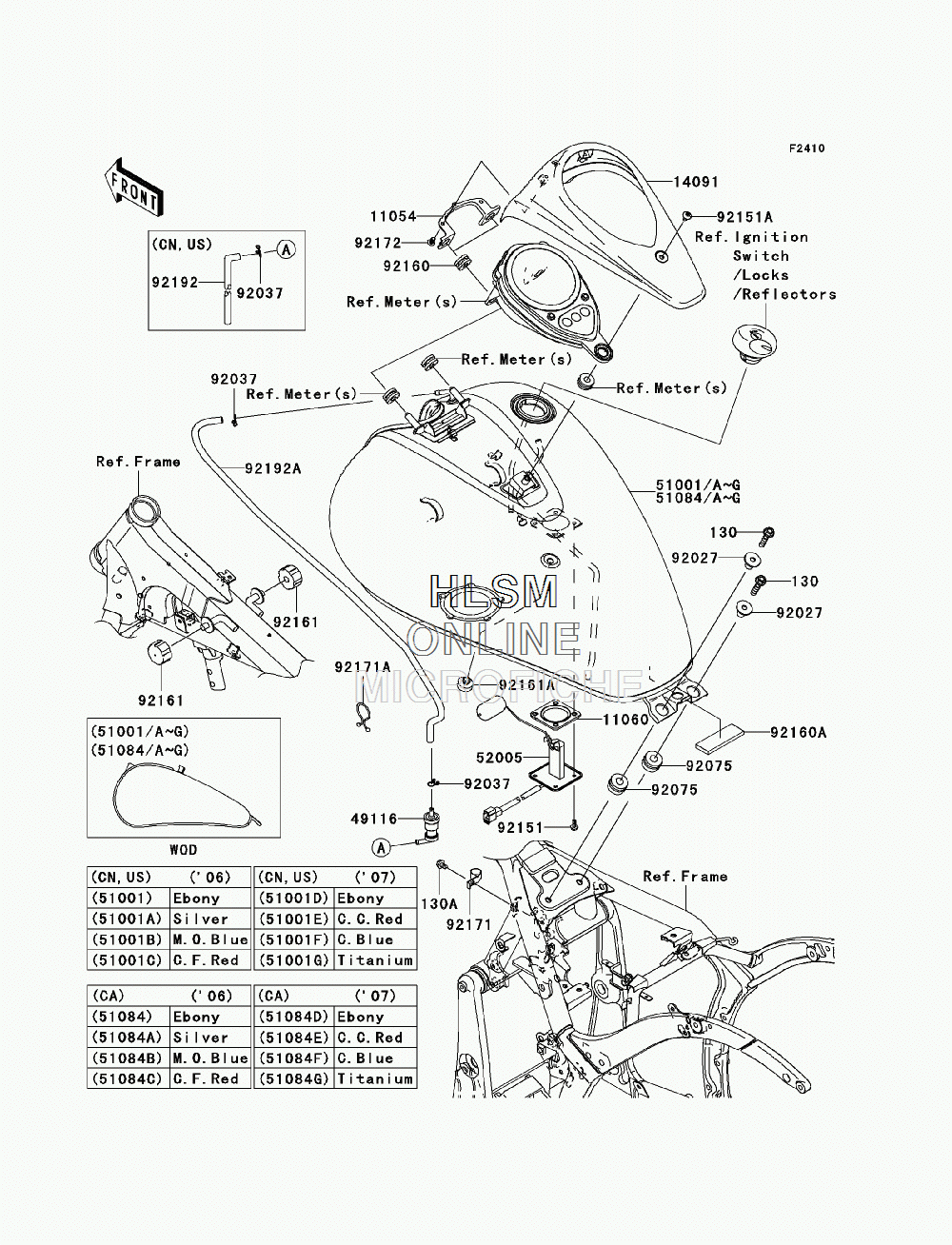

FUEL TANK для Kawasaki VULCAN 900 CLASSIC (VN900B7F) - 2007 года выпуска
-
№АртикулНазвание
-
1105411054-0034 BRACKET,METER, FRONTBRACKET,METER, FRONT
-
1106011060-1952 GASKET,FUEL GAUGEGASKET,FUEL GAUGE
-
1409114091-0516 COVER,METERCOVER,METER
-
4911649116-0014 VALVE-ASSY,CHECKVALVE-ASSY,CHECK
-
51001D51001-0146-H8 TANK-COMP-FUEL,EBONY (EXCEPT CALIF.)TANK-COMP-FUEL,EBONY (EXCEPT CALIF.)
-
51001E51001-0146-L1 TANK-COMP-FUEL,C.C.RED (EXCEPT CALIF.)TANK-COMP-FUEL,C.C.RED (EXCEPT CALIF.)
-
51001F51001-0146-17Q TANK-COMP-FUEL,C.BLUE (EXCEPT CALIF.)TANK-COMP-FUEL,C.BLUE (EXCEPT CALIF.)
-
51001G51001-0146-740 TANK-COMP-FUEL,M.TITANIUM (EXCEPT CALIF.)TANK-COMP-FUEL,M.TITANIUM (EXCEPT CALIF.)
-
51084D51084-5406-H8 TANK-COMP-FUEL,EBONY (CALIF. ONLY)TANK-COMP-FUEL,EBONY (CALIF. ONLY)
-
51084E51084-5406-L1 TANK-COMP-FUEL,C.C.RED (CALIF. ONLY)TANK-COMP-FUEL,C.C.RED (CALIF. ONLY)
-
51084F51084-5406-17Q TANK-COMP-FUEL,C.BLUE (CALIF. ONLY)TANK-COMP-FUEL,C.BLUE (CALIF. ONLY)
-
51084G51084-5406-740 TANK-COMP-FUEL,M.TITANIUM (CALIF. ONLY)TANK-COMP-FUEL,M.TITANIUM (CALIF. ONLY)
-
130130BA0830 BOLT-FLANGED,8X30BOLT-FLANGED,8X30
-
130A130BB0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
5200552005-0020 GAUGE,FUELGAUGE,FUEL
-
9202792027-1780 COLLAR,L=19.3COLLAR,L=19.3
-
9203792037-147 CLAMP,TUBE (CALIF. ONLY)CLAMP,TUBE (CALIF. ONLY)
-
9203792037-147 CLAMP,TUBE (EXCEPT CALIF.)CLAMP,TUBE (EXCEPT CALIF.)
-
9207592075-1736 DAMPERDAMPER
-
9215192151-1599 BOLT,5X12BOLT,5X12
-
92151A92151-1940 BOLT,SOCKET,6X12BOLT,SOCKET,6X12
-
9216092160-1162 DAMPERDAMPER
-
92160A92160-1323 DAMPERDAMPER
-
9216192161-0293 DAMPER,FUEL TANKDAMPER,FUEL TANK
-
92161A92161-1065 DAMPER,SEATDAMPER,SEAT
-
9217192171-0595 CLAMPCLAMP
-
92171A92171-1185 CLAMPCLAMP
-
9217292172-0006 SCREW,TAPPING,5X14SCREW,TAPPING,5X14
-
9219292192-0215 TUBE,TANK-SEPARATOR,BLUE (EXCEPT CALIF.)TUBE,TANK-SEPARATOR,BLUE (EXCEPT CALIF.)
-
92192A92192-0303 TUBE,FUEL TANK-VALVETUBE,FUEL TANK-VALVE
