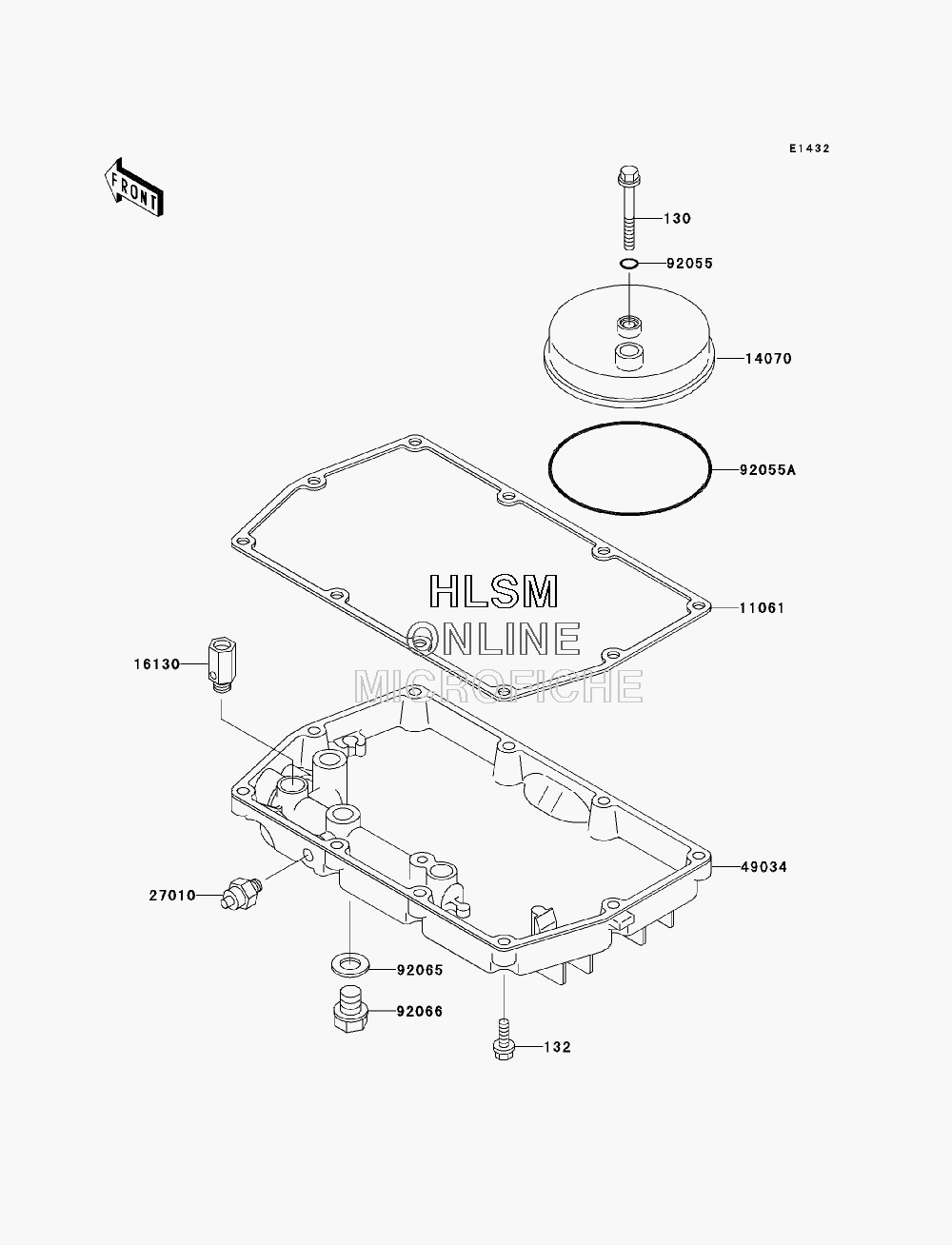

BREATHER COVER W/ OIL PAN для Kawasaki VULCAN 500 LTD (EN500C7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130BD0645 BOLT-FLANGED, 6X45BOLT-FLANGED, 6X45
-
132132BD0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
1106111061-0275 GASKET, OIL PANGASKET, OIL PAN
-
1407014070-1082 BODY-BREATHERBODY-BREATHER
-
1613016130-1001 VALVE-ASSY-RELIEFVALVE-ASSY-RELIEF
-
2701027010-1313 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
4903449034-1108 PAN-OILPAN-OIL
-
9205592055-1089 RING-O, 6MMRING-O, 6MM
-
92055A92055-1284 RING-O, 92X1.9RING-O, 92X1.9
-
9206592065-097 GASKET, 12X22X2GASKET, 12X22X2
-
9206692066-1174 PLUG, OIL DRAIN, 12X15PLUG, OIL DRAIN, 12X15
