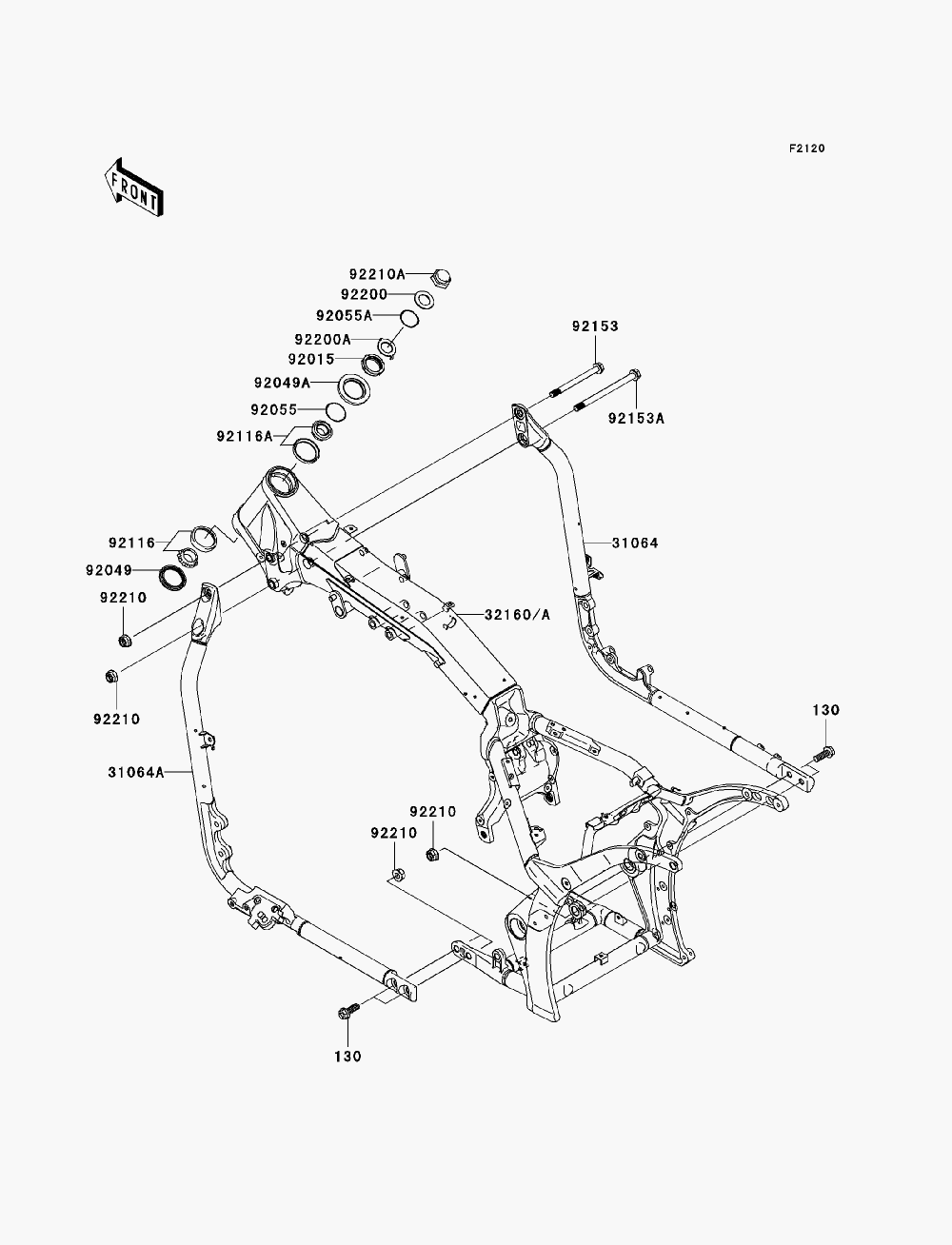

FRAME для Kawasaki VULCAN 2000 (VN2000A7F) - 2007 года выпуска

  • №
    Артикул
    Название
  • 130
    130W1235 BOLT-FLANGED, 12X35
    BOLT-FLANGED, 12X35
  • 31064
    31064-0026 PIPE-COMP, DOWNTUBE, RIGHT HAND
    PIPE-COMP, DOWNTUBE, RIGHT HAND
  • 31064A
    31064-0032 PIPE-COMP, DOWNTUBE, LEFT HAND
    PIPE-COMP, DOWNTUBE, LEFT HAND
  • 32160A
    32160-0208 FRAME-COMP
    FRAME-COMP
  • 92015
    92015-1848 NUT, STEERING STEM, 35MM
    NUT, STEERING STEM, 35MM
  • 92049
    92049-1383 SEAL-OIL, XMHE 43 55 4J
    SEAL-OIL, XMHE 43 55 4J
  • 92049A
    92049-1483 SEAL-OIL, MX043N2
    SEAL-OIL, MX043N2
  • 92055
    92055-1452 RING-O, 34.5X2.0
    RING-O, 34.5X2.0
  • 92055A
    92055-1459 RING-O, ID=24.5
    RING-O, ID=24.5
  • 92116
    92116-1072 BEARING-ROLLER, 32907JR-2
    BEARING-ROLLER, 32907JR-2
  • 92116A
    92116-1074 BEARING-ROLLER, 32907JR-3
    BEARING-ROLLER, 32907JR-3
  • 92153
    92153-0598 BOLT, FLANGED, 12X132
    BOLT, FLANGED, 12X132
  • 92153A
    92153-0599 BOLT, FLANGED, 12X168
    BOLT, FLANGED, 12X168
  • 92200
    92200-0105 WASHER, 25.5X42X2.3
    WASHER, 25.5X42X2.3
  • 92200A
    92200-0137 WASHER, CLAW, 25.5X40X2.3
    WASHER, CLAW, 25.5X40X2.3
  • 92210
    92210-0110 NUT, LOCK, FLANGED, 12MM
    NUT, LOCK, FLANGED, 12MM
  • 92210A
    92210-1166 NUT, CAP, 25MM
    NUT, CAP, 25MM
