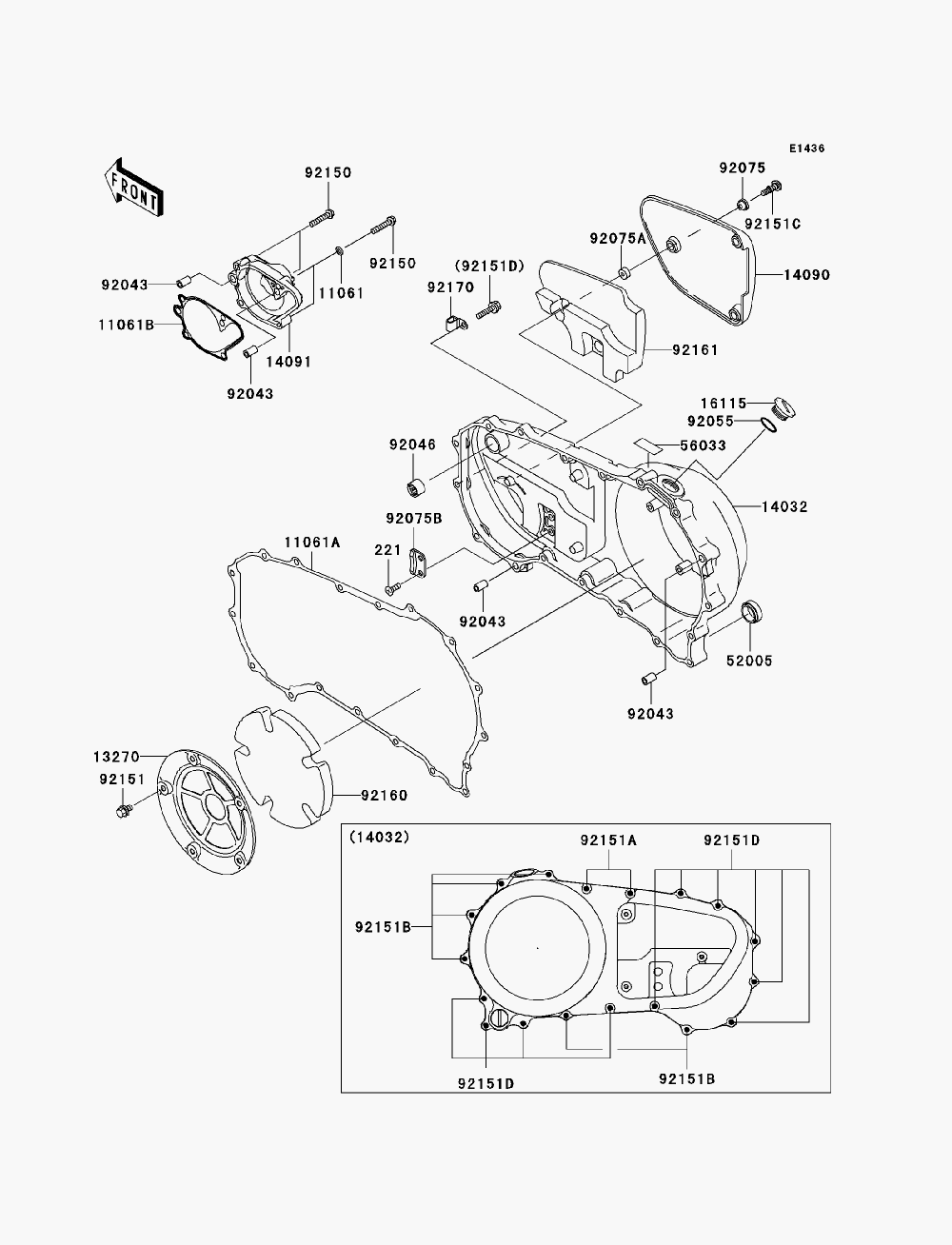

ENGINE COVER(S) - RIGHT для Kawasaki VULCAN 1600 NOMAD (VN1600D7F) - 2007 года выпуска
-
№АртикулНазвание
-
221221B0612 SCREW-CSK-CROS, 6X12SCREW-CSK-CROS, 6X12
-
1106111061-0107 GASKETGASKET
-
11061A11061-1081 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11061B11061-1172 GASKET, WATER PUMP COVERGASKET, WATER PUMP COVER
-
1327013270-1592 PLATEPLATE
-
1403214032-1493 COVER-CLUTCHCOVER-CLUTCH
-
1409014090-1678 COVER, CLUTCH OUTERCOVER, CLUTCH OUTER
-
1409114091-0124 COVER, WATER PUMPCOVER, WATER PUMP
-
1611516115-1063 CAP-OIL FILLERCAP-OIL FILLER
-
5200552005-1009 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5603356033-1156 LABEL-MANUAL, OIL CAPACITYLABEL-MANUAL, OIL CAPACITY
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204692046-1163 BEARING-NEEDLE, HK1212BEARING-NEEDLE, HK1212
-
9205592055-049 RING-O, 31.7X2.4RING-O, 31.7X2.4
-
9207592075-1855 DAMPERDAMPER
-
92075A92075-1856 DAMPERDAMPER
-
92075B92075-1905 DAMPERDAMPER
-
9215092150-1021 BOLT, 6X30BOLT, 6X30
-
9215192151-1064 BOLT, 6X10BOLT, 6X10
-
92151A92151-1134 BOLT, 6X30BOLT, 6X30
-
92151B92151-1135 BOLT, 6X35BOLT, 6X35
-
92151C92151-1273 BOLT, SOCKET, 6X22.5BOLT, SOCKET, 6X22.5
-
92151D92151-1930 BOLT, FLANGED-SMALL, 6X25BOLT, FLANGED-SMALL, 6X25
-
9216092160-1716 DAMPERDAMPER
-
9216192161-1139 DAMPERDAMPER
-
9217092170-1804 CLAMPCLAMP
