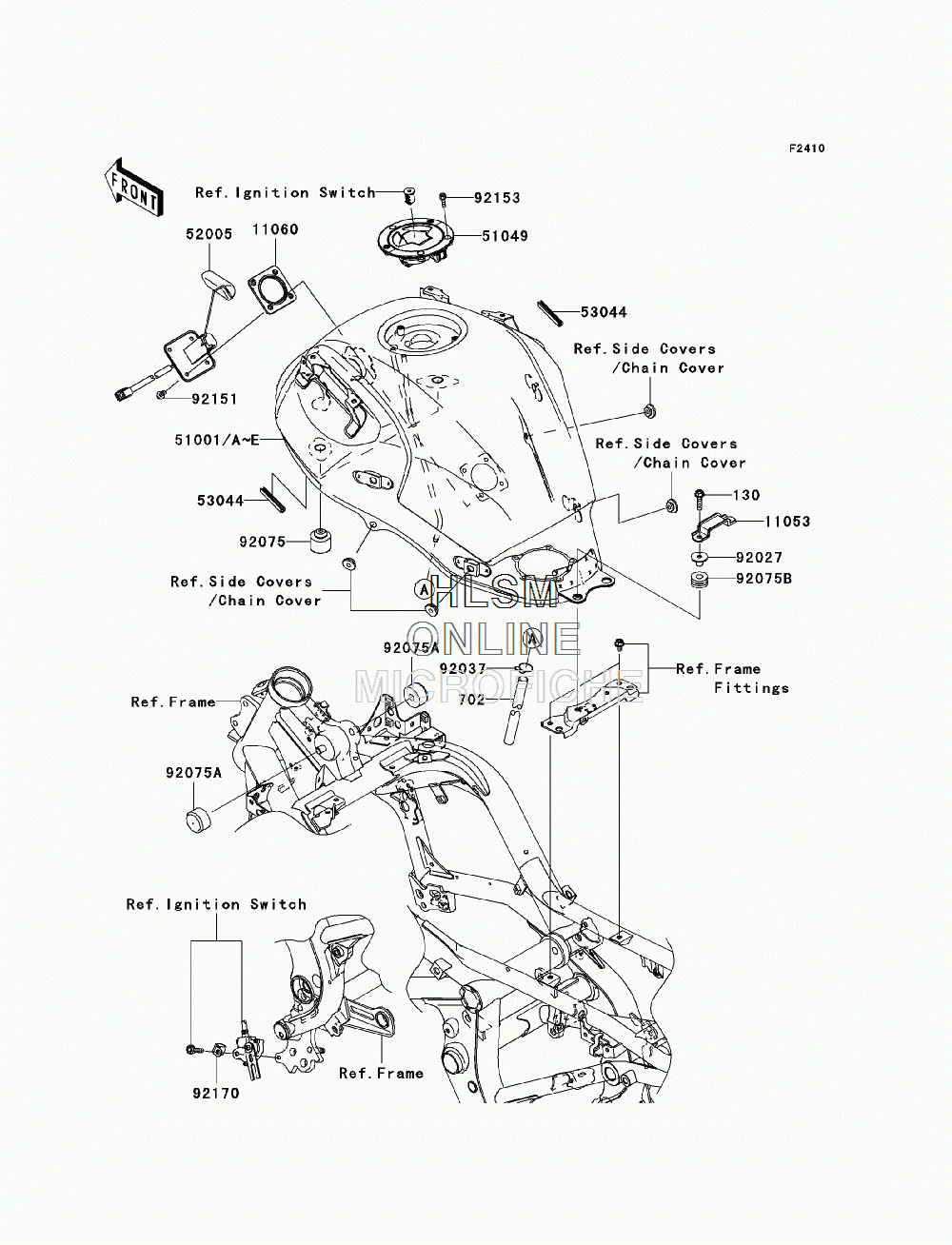

FUEL TANK для Kawasaki VERSYS (CANADA ONLY) (KLE650A7F) - 2007 года выпуска

  • №
    Артикул
    Название
  • 130
    130BB0625 BOLT-FLANGED, 6X25
    BOLT-FLANGED, 6X25
  • 702
    702A06750 TUBE-RUBBER, 6X9X750
    TUBE-RUBBER, 6X9X750
  • 11053
    11053-1812 BRACKET, SEAT
    BRACKET, SEAT
  • 11060
    11060-1952 GASKET, FUEL GAUGE
    GASKET, FUEL GAUGE
  • 51001
    51001-0117-H8 TANK-COMP-FUEL, EBONY (UP TO JKALEEA1 7A006848) (FOR H8)
    TANK-COMP-FUEL, EBONY (UP TO JKALEEA1 7A006848) (FOR H8)
  • 51001A
    51001-0117-17L TANK-COMP-FUEL, C. ORANGE (UP TO JKALEEA1 7A006848) (FOR 17L)
    TANK-COMP-FUEL, C. ORANGE (UP TO JKALEEA1 7A006848) (FOR 17L)
  • 51001D
    51001-0194-H8 TANK-COMP-FUEL, EBONY (JKALEEA1 7A006849 AND ABOVE) (FOR H8)
    TANK-COMP-FUEL, EBONY (JKALEEA1 7A006849 AND ABOVE) (FOR H8)
  • 51001E
    51001-0194-17L TANK-COMP-FUEL, C. ORANGE (JKALEEA1 7A006849 AND ABOVE) (FOR 17L)
    TANK-COMP-FUEL, C. ORANGE (JKALEEA1 7A006849 AND ABOVE) (FOR 17L)
  • 51049
    51049-0012 CAP-TANK, FUEL
    CAP-TANK, FUEL
  • 52005
    52005-0023 GAUGE, FUEL
    GAUGE, FUEL
  • 53044
    53044-1249 TRIM, L=60
    TRIM, L=60
  • 92027
    92027-251 COLLAR, L=13.1
    COLLAR, L=13.1
  • 92037
    92037-010 CLAMP, TUBE
    CLAMP, TUBE
  • 92075
    92075-1002 DAMPER
    DAMPER
  • 92075A
    92075-125 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92075B
    92075-1690 DAMPER
    DAMPER
  • 92151
    92151-1599 BOLT, 5X12
    BOLT, 5X12
  • 92153
    92153-1616 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92170
    92170-1833 CLAMP
    CLAMP
