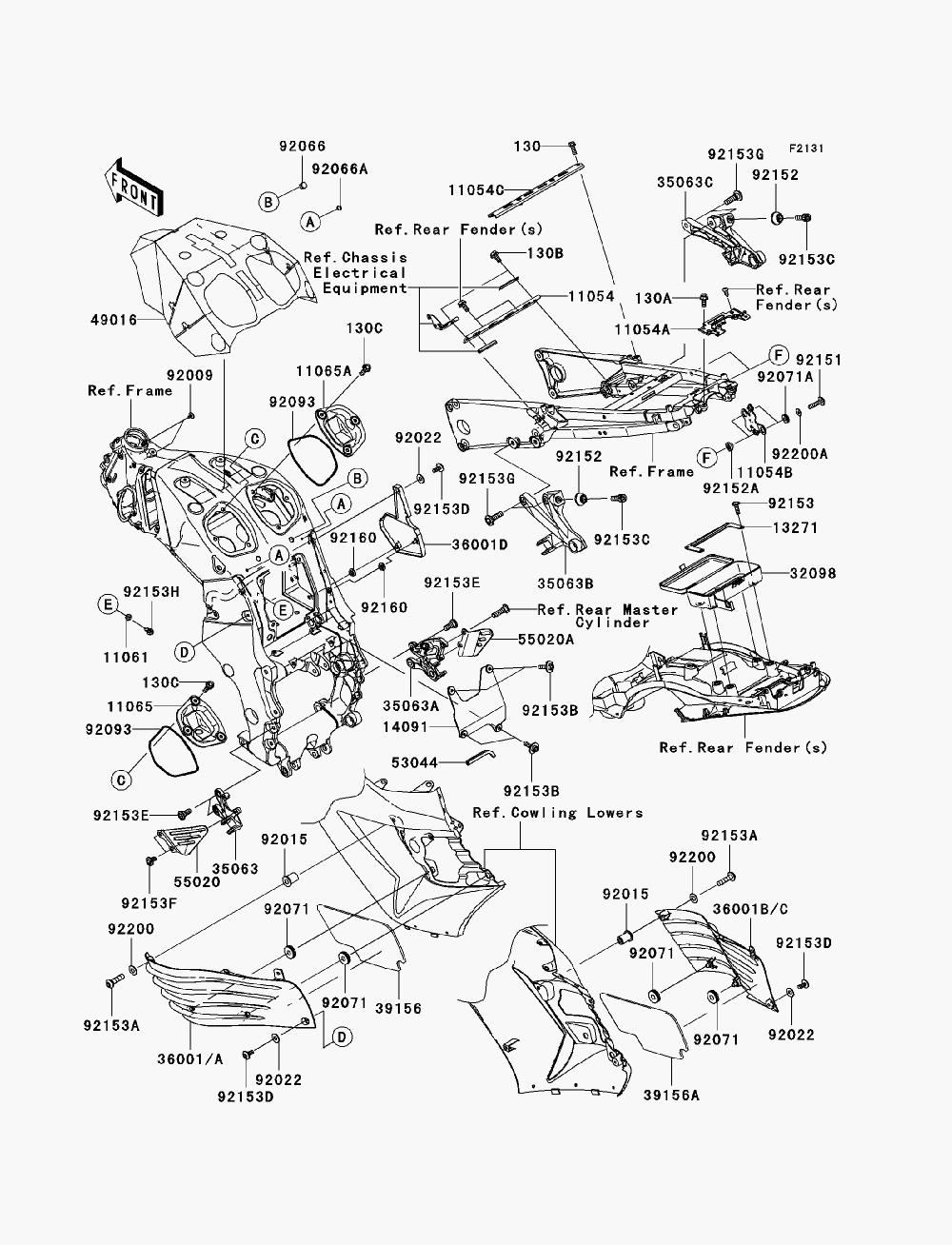

FRAME FITTINGS для Kawasaki NINJA ZX-14 (ZX1400A7FA) - 2007 года выпуска`
-
№АртикулНазвание
-
1105411054-0225 BRACKET, REAR FENDER, FRONTBRACKET, REAR FENDER, FRONT
-
11054A11054-0694 BRACKET, REAR FENDER & TAIL COVERBRACKET, REAR FENDER & TAIL COVER
-
11054B11054-0718 BRACKET, REGULATORBRACKET, REGULATOR
-
11054C11054-0757 BRACKET, FUEL TANK, REARBRACKET, FUEL TANK, REAR
-
1106111061-0107 GASKETGASKET
-
1106511065-0132 CAP, AIR CLEANER, LEFT HANDCAP, AIR CLEANER, LEFT HAND
-
11065A11065-0133 CAP, AIR CLEANER, RIGHT HANDCAP, AIR CLEANER, RIGHT HAND
-
1327113271-0779 PLATE, TOOL CASEPLATE, TOOL CASE
-
1409114091-0534 COVER, BATTERY, BACKCOVER, BATTERY, BACK
-
3209832098-0009 CASE-TOOLCASE-TOOL
-
3506335063-0234-11E STAY, FRONT, LEFT HAND, F.S.BLACKSTAY, FRONT, LEFT HAND, F.S.BLACK
-
35063A35063-0235-11E STAY, FRONT, RIGHT HAND, F.S.BLACKSTAY, FRONT, RIGHT HAND, F.S.BLACK
-
35063B35063-0353-11E STAY, REAR, LEFT HAND, F.S.BLACKSTAY, REAR, LEFT HAND, F.S.BLACK
-
35063C35063-0354-11E STAY, REAR, RIGHT HAND, F.S.BLACKSTAY, REAR, RIGHT HAND, F.S.BLACK
-
36001A36001-0069-17X COVER-SIDE, KNEE GRIP, LEFT HAND, REDCOVER-SIDE, KNEE GRIP, LEFT HAND, RED
-
36001C36001-0070-17X COVER-SIDE, KNEE GRIP, RIGHT HAND, REDCOVER-SIDE, KNEE GRIP, RIGHT HAND, RED
-
36001D36001-0080-11J COVER-SIDE, BATTERY, RIGHT HAND, BLACKCOVER-SIDE, BATTERY, RIGHT HAND, BLACK
-
3915639156-0185 PAD, KNEE GRIP COVER, LEFT HANDPAD, KNEE GRIP COVER, LEFT HAND
-
39156A39156-0186 PAD, KNEE GRIP COVER, RIGHT HANDPAD, KNEE GRIP COVER, RIGHT HAND
-
4901649016-0034 COVER-SEALCOVER-SEAL
-
5304453044-1200 TRIM, L=100TRIM, L=100
-
5502055020-0211 GUARD, FRONT STEP, LEFT HANDGUARD, FRONT STEP, LEFT HAND
-
55020A55020-0212 GUARD, FRONT STEP, RIGHT HANDGUARD, FRONT STEP, RIGHT HAND
-
9200992009-1661 SCREW, 6X10SCREW, 6X10
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202292022-1143 WASHER, 6.5X16X1WASHER, 6.5X16X1
-
9206692066-1081 PLUGPLUG
-
92066A92066-1547 PLUGPLUG
-
9207192071-056 GROMMETGROMMET
-
92071A92071-1115 GROMMETGROMMET
-
9209392093-1507 SEALSEAL
-
9215192151-1611 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
9215292152-0426 COLLARCOLLAR
-
92152A92152-0470 COLLARCOLLAR
-
9215392153-0478 BOLT, 6X18BOLT, 6X18
-
92153A92153-1244 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
92153B92153-1423 BOLT, 6X16BOLT, 6X16
-
92153C92153-1522 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
130130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130B130BA0618 BOLT-FLANGED, 6X18BOLT-FLANGED, 6X18
-
130C130BA0622 BOLT-FLANGED, 6X22BOLT-FLANGED, 6X22
-
92153D92153-1612 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
92153E92153-1621 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
92153F92153-1622 BOLT, 6MMBOLT, 6MM
-
92153G92153-1630 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
92153H92153-1676 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
9216092160-1613 DAMPERDAMPER
-
9220092200-0006 WASHER, NYLONE, 5.3X11.5X0.5WASHER, NYLONE, 5.3X11.5X0.5
-
92200A92200-0283 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
