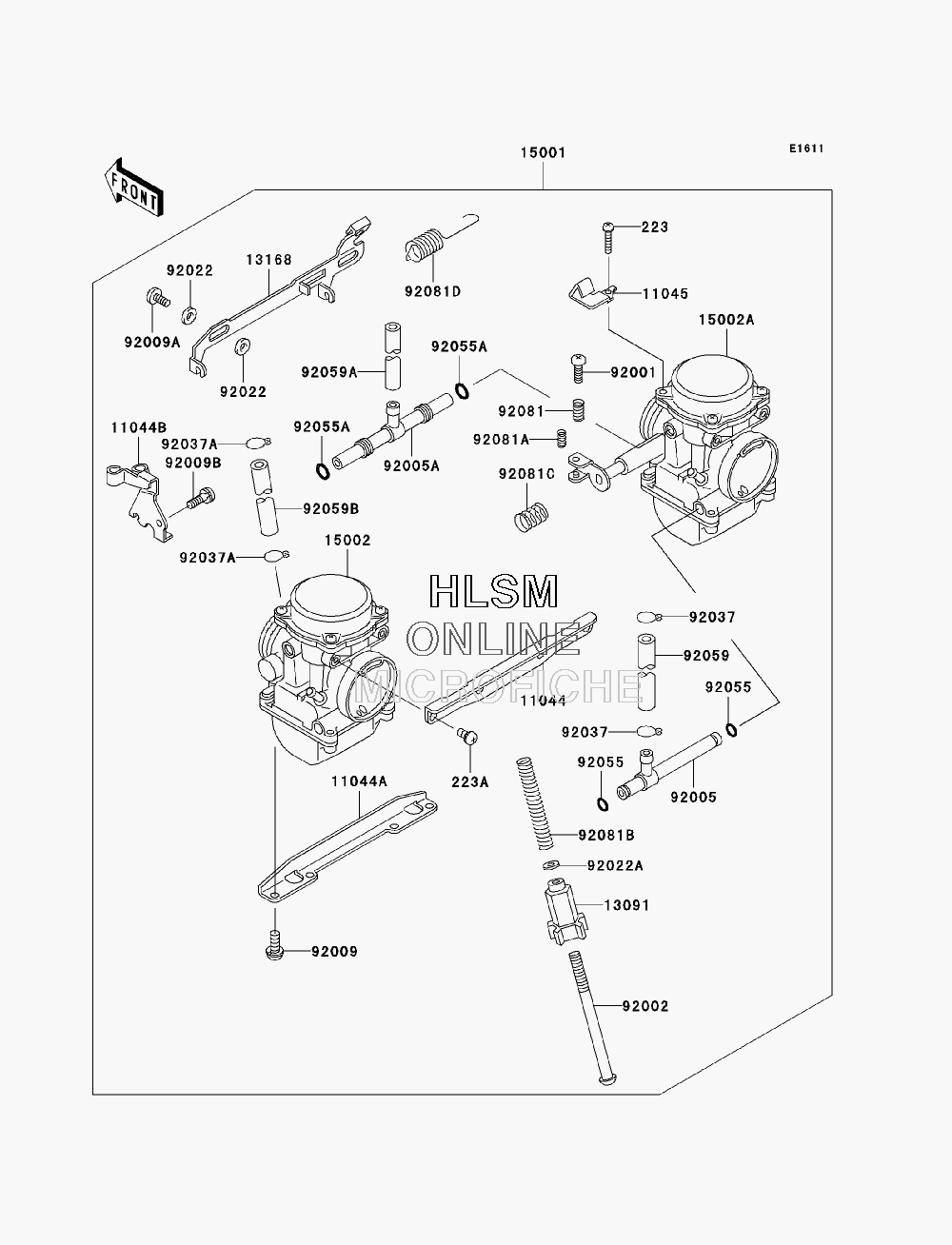

CARBURETOR для Kawasaki NINJA 500R (EX500D7F) - 2007 года выпуска

  • №
    Артикул
    Название
  • 223
    223AB0420 SCREW-PAN-WS-CROS, 4X20
    SCREW-PAN-WS-CROS, 4X20
  • 223A
    223AB0510 SCREW-PAN-WS-CROS, 5X10
    SCREW-PAN-WS-CROS, 5X10
  • 11044
    11044-1313 BRACKET, CARBURETOR STAY, UPP
    BRACKET, CARBURETOR STAY, UPP
  • 11044A
    11044-1314 BRACKET, CARBURETOR STAY, 6MM
    BRACKET, CARBURETOR STAY, 6MM
  • 11044B
    11044-1546 BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 11045
    11045-1824 BRACKET, STARTER LEVER
    BRACKET, STARTER LEVER
  • 13091
    13091-1382 HOLDER, THROTTLE STOP SCREW
    HOLDER, THROTTLE STOP SCREW
  • 13168
    13168-1360 LEVER
    LEVER
  • 15001
    15001-1334 CARBURETOR-ASSY
    CARBURETOR-ASSY
  • 15002
    15002-1492 CARBURETOR, LEFT HAND
    CARBURETOR, LEFT HAND
  • 15002A
    15002-1493 CARBURETOR, RIGHT HAND
    CARBURETOR, RIGHT HAND
  • 92001
    92001-1998 BOLT, THROTTLE ADJUST
    BOLT, THROTTLE ADJUST
  • 92002
    92002-1552 BOLT, THROTTLE STOP SCREW
    BOLT, THROTTLE STOP SCREW
  • 92005
    92005-1133 FITTING
    FITTING
  • 92005A
    92005-1134 FITTING
    FITTING
  • 92009
    92009-1129 SCREW, 6X16
    SCREW, 6X16
  • 92009A
    92009-1262 SCREW
    SCREW
  • 92009B
    92009-1365 SCREW, 5X10
    SCREW, 5X10
  • 92022
    92022-1199 WASHER, 6.1X11X0.8, POLYACETAL
    WASHER, 6.1X11X0.8, POLYACETAL
  • 92022A
    92022-1480 WASHER, PLAIN, STOP SPRING
    WASHER, PLAIN, STOP SPRING
  • 92037
    92037-1075 CLAMP, FUEL TUBE
    CLAMP, FUEL TUBE
  • 92037A
    92037-1477 CLAMP, TUBE
    CLAMP, TUBE
  • 92055
    92055-1004 RING-O
    RING-O
  • 92055A
    92055-1223 RING-O
    RING-O
  • 92059
    92059-1236 TUBE, FUEL, 7.3X12.5X220
    TUBE, FUEL, 7.3X12.5X220
  • 92059A
    92059-1465 TUBE, 6.5X9.5X500
    TUBE, 6.5X9.5X500
  • 92059B
    92059-1634 TUBE, 5X9X140
    TUBE, 5X9X140
  • 92081
    92081-1620 SPRING
    SPRING
  • 92081A
    92081-1621 SPRING, THROTTLE ADJUST LWR
    SPRING, THROTTLE ADJUST LWR
  • 92081B
    92081-1875 SPRING, THROTTLE STOP SCREW
    SPRING, THROTTLE STOP SCREW
  • 92081C
    92081-1876 SPRING
    SPRING
  • 92081D
    92081-1893 SPRING, STARTER LEVER
    SPRING, STARTER LEVER
