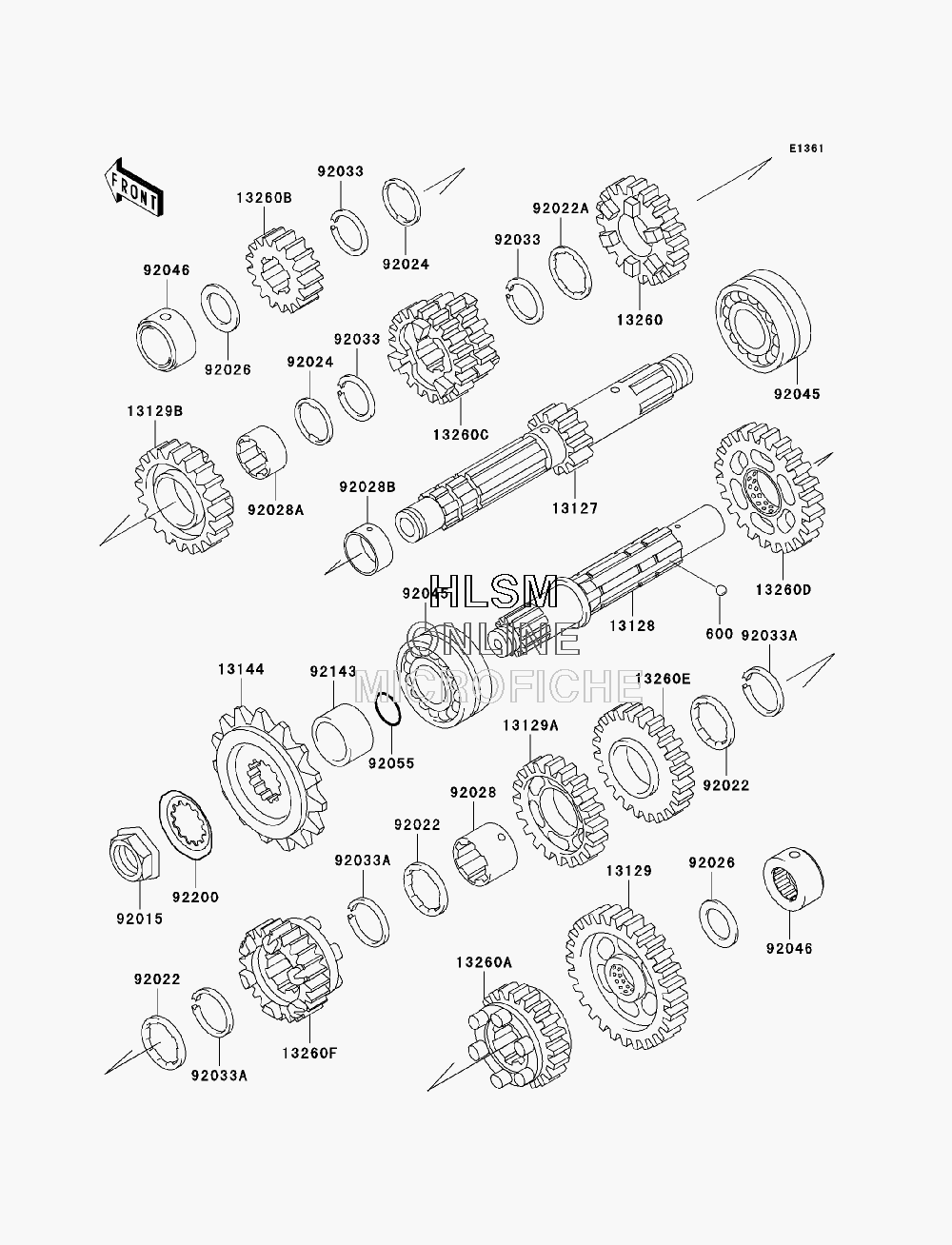

TRANSMISSION для Kawasaki Vulcan 500 LTD - 2006 года выпуска

  • №
    Артикул
    Название
  • 600
    600A0500 BALL-STEEL, 5/32"
    BALL-STEEL, 5/32"
  • 13127
    13127-1148 SHAFT-TRANSMISSION INPUT, 14T
    SHAFT-TRANSMISSION INPUT, 14T
  • 13128
    13128-1212 SHAFT-TRANSMISSION OUTPUT
    SHAFT-TRANSMISSION OUTPUT
  • 13129
    13129-1564 GEAR, OUTPUT LOW, 36T
    GEAR, OUTPUT LOW, 36T
  • 13129A
    13129-1660 GEAR, OUTPUT 4TH, 27T
    GEAR, OUTPUT 4TH, 27T
  • 13129B
    13129-1859 GEAR, INPUT TOP, 27T
    GEAR, INPUT TOP, 27T
  • 13144
    13144-1272 SPROCKET-OUTPUT, 16T
    SPROCKET-OUTPUT, 16T
  • 13260
    13260-1203 GEAR, INPUT 5TH, 26T
    GEAR, INPUT 5TH, 26T
  • 13260A
    13260-1388 GEAR, OUTPUT 5TH, 25T
    GEAR, OUTPUT 5TH, 25T
  • 13260B
    13260-1507 GEAR, INPUT 2ND, 18T
    GEAR, INPUT 2ND, 18T
  • 13260C
    13260-1508 GEAR, INPUT 3RD & 4TH, 21T & 24T
    GEAR, INPUT 3RD & 4TH, 21T & 24T
  • 13260D
    13260-1572 GEAR, OUTPUT 2ND, 31T
    GEAR, OUTPUT 2ND, 31T
  • 13260E
    13260-1573 GEAR, OUTPUT 3RD, 28T
    GEAR, OUTPUT 3RD, 28T
  • 13260F
    13260-1585 GEAR, OUTPUT TOP, 23T
    GEAR, OUTPUT TOP, 23T
  • 92015
    92015-1963 NUT, 20MM
    NUT, 20MM
  • 92022
    92022-1139 WASHER, TOOTHED, 28.3X33.5X1
    WASHER, TOOTHED, 28.3X33.5X1
  • 92022A
    92022-1861 WASHER, TOOTHED, 25.3X31.8X1.6
    WASHER, TOOTHED, 25.3X31.8X1.6
  • 92024
    92024-033 WASHER, TOOTHED, 25.5X32X1
    WASHER, TOOTHED, 25.5X32X1
  • 92026
    92026-1022 SPACER, 20.3X30X2.0
    SPACER, 20.3X30X2.0
  • 92028
    92028-1364 BUSHING, OUTPUT 3RD & 4TH GEAR
    BUSHING, OUTPUT 3RD & 4TH GEAR
  • 92028A
    92028-1552 BUSHING, INPUT TOP GEAR
    BUSHING, INPUT TOP GEAR
  • 92028B
    92028-1639 BUSHING
    BUSHING
  • 92033
    92033-026 RING-SNAP, 24MM
    RING-SNAP, 24MM
  • 92033A
    92033-1037 RING-SNAP, 25.9X30.6X1.2
    RING-SNAP, 25.9X30.6X1.2
  • 92045
    92045-035 BEARING-BALL, 83993SH2-CS
    BEARING-BALL, 83993SH2-CS
  • 92046
    92046-1161 BEARING-NEEDLE, NKZ20X34X17
    BEARING-NEEDLE, NKZ20X34X17
  • 92055
    92055-035 RING-O
    RING-O
  • 92143
    92143-1843 COLLAR, 25X40X12
    COLLAR, 25X40X12
  • 92200
    92200-1065 WASHER
    WASHER
