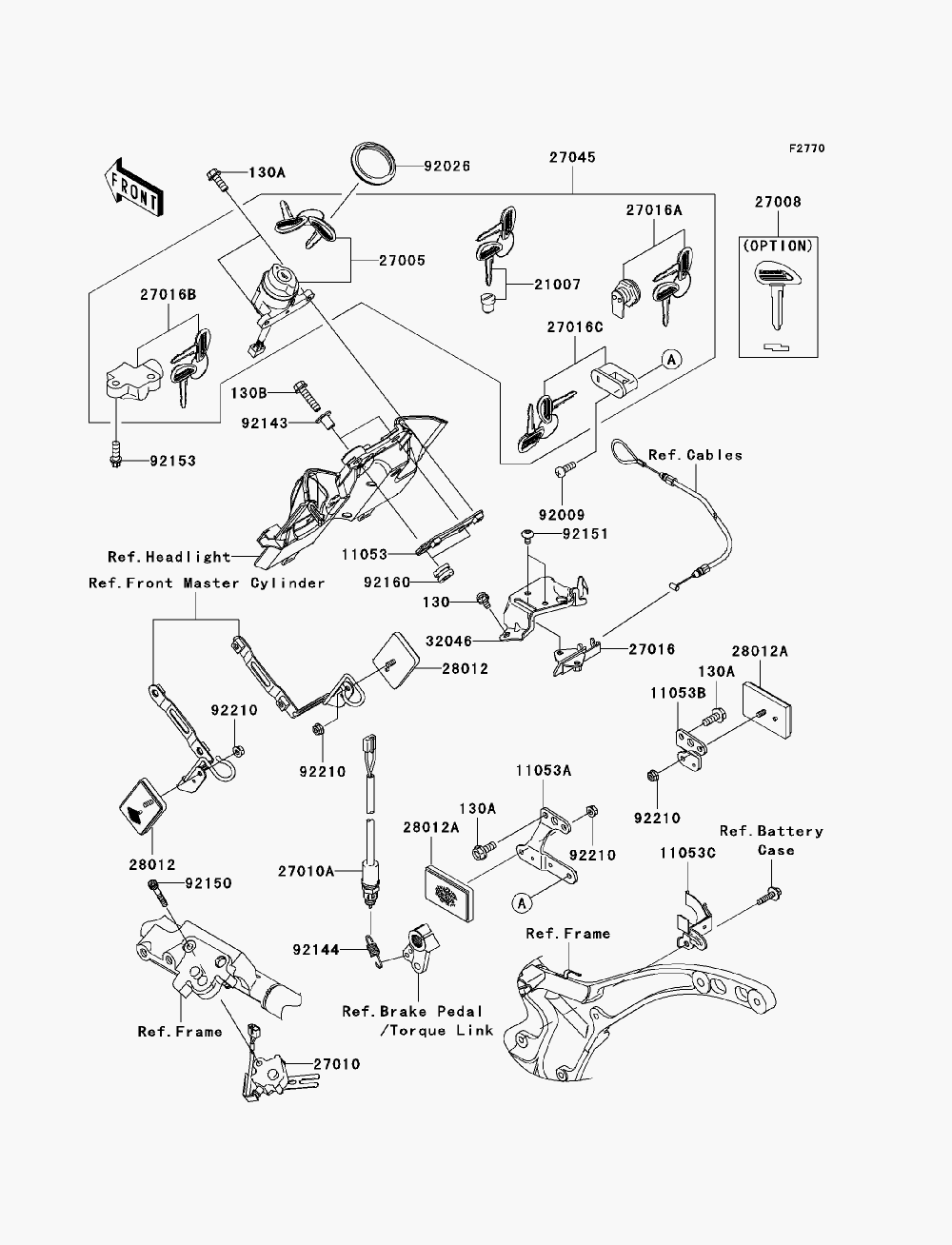

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Vulcan 2000 - 2006 года выпуска`
-
№АртикулНазвание
-
130130L0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130L0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130B130L0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
1105311053-0218 BRACKET, IGNITION SWITCHBRACKET, IGNITION SWITCH
-
11053A11053-0222 BRACKET, REFLECTOR, REAR, LEFT HANDBRACKET, REFLECTOR, REAR, LEFT HAND
-
11053B11053-0223 BRACKET, REFLECTOR, REAR, RIGHT HANDBRACKET, REFLECTOR, REAR, RIGHT HAND
-
11053C11053-0920 BRACKET, SIDE COVER LOCKBRACKET, SIDE COVER LOCK
-
2100721007-5053 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-0004 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-1211 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-0011 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-0023 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-1115 LOCK-ASSY, SEAT STRIKERLOCK-ASSY, SEAT STRIKER
-
27016A27016-5279 LOCK-ASSY, LIDLOCK-ASSY, LID
-
27016B27016-5298 LOCK-ASSY, STEERINGLOCK-ASSY, STEERING
-
27016C27016-5311 LOCK-ASSY, HELMETLOCK-ASSY, HELMET
-
2704527045-5212 SWITCH-ASSYSWITCH-ASSY
-
2801228012-1009 REFLECTOR-REFLEX, FRONTREFLECTOR-REFLEX, FRONT
-
28012A28012-1088 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
3204632046-0037 BRACKET-SEATBRACKET-SEAT
-
9200992009-1341 SCREW, 5X14SCREW, 5X14
-
9202692026-0018 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
9214392143-1041 COLLAR, L=15.6COLLAR, L=15.6
-
9214492144-1141 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215092150-1958 BOLT, SOCKET, 6X40BOLT, SOCKET, 6X40
-
9215192151-1219 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9215392153-1273 BOLT, TORX, 8X22BOLT, TORX, 8X22
-
9216092160-1167 DAMPERDAMPER
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
