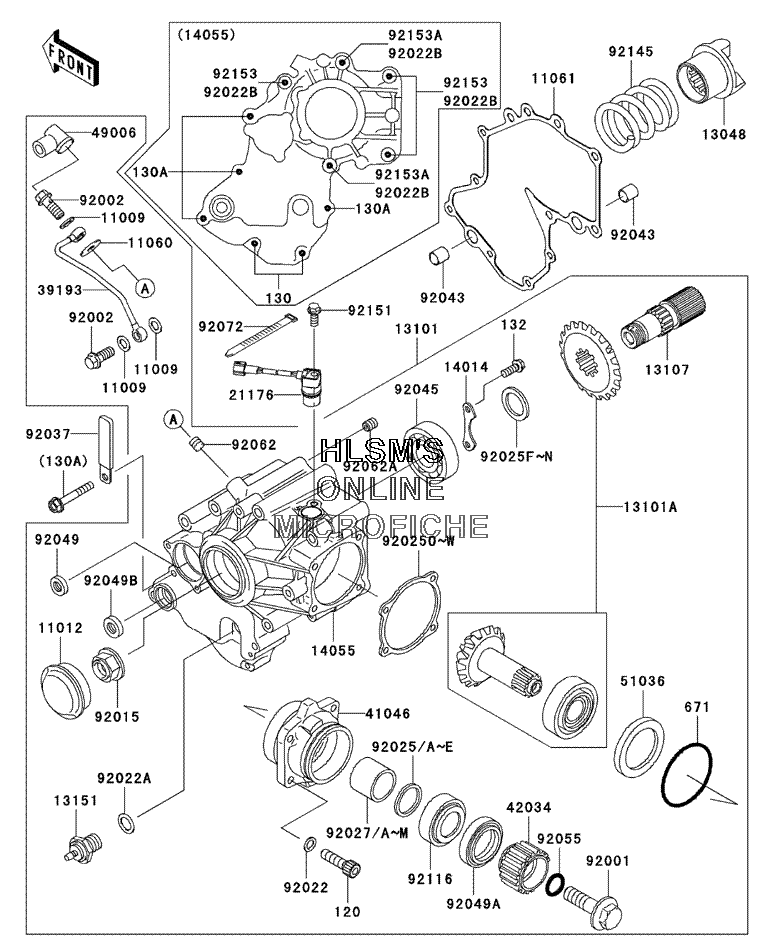

FRONT BEVEL GEAR для Kawasaki Vulcan 1600 Classic - 2006 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1344 GASKET, 8.2X14X1.0
    GASKET, 8.2X14X1.0
  • 11012
    11012-1071 CAP
    CAP
  • 11060
    11060-1872 GASKET, OIL PIPE, 8.2X25X1.0
    GASKET, OIL PIPE, 8.2X25X1.0
  • 11061
    11061-0046 GASKET, BEVEL GEAR CASE
    GASKET, BEVEL GEAR CASE
  • 13048
    13048-1085 CAM, DAMPER
    CAM, DAMPER
  • 13101
    13101-0020 GEAR, ASSY
    GEAR, ASSY
  • 13101A
    13101-5088 GEAR, ASSY, BEVEL, FRONT
    GEAR, ASSY, BEVEL, FRONT
  • 13107
    13107-1525 SHAFT, BEVEL, FRONT
    SHAFT, BEVEL, FRONT
  • 13151
    13151-1010 SWITCH, COMP, NEUTRAL
    SWITCH, COMP, NEUTRAL
  • 14014
    14014-1136 PLATE, POSITION
    PLATE, POSITION
  • 14055
    14055-0006 CASE, GEAR, FRONT BEVEL
    CASE, GEAR, FRONT BEVEL
  • 21176
    21176-0037 SENSOR, SPEED
    SENSOR, SPEED
  • 39193
    39193-1026 PIPE, OIL
    PIPE, OIL
  • 41046
    41046-1099 HOUSING, BEARING
    HOUSING, BEARING
  • 42034
    42034-1091 COUPLING, FRONT DRIVEN
    COUPLING, FRONT DRIVEN
  • 49006
    49006-1040 BOOT, DUST
    BOOT, DUST
  • 51036
    51036-1002 CUP
    CUP
  • 92001
    92001-1169 BOLT, FLANGED, 12X42
    BOLT, FLANGED, 12X42
  • 92002
    92002-1429 BOLT, 8X20
    BOLT, 8X20
  • 92015
    92015-1554 NUT, 24MM
    NUT, 24MM
  • 92022
    92022-1028 WASHER, 8.5X13X1
    WASHER, 8.5X13X1
  • 92022A
    92022-1211 WASHER, 12X18X1.0
    WASHER, 12X18X1.0
  • 92022B
    92022-1582 WASHER, 8.5X16X1.2
    WASHER, 8.5X16X1.2
  • 92025
    92025-1072 SHIM, 25.2X29.8X1.70
    SHIM, 25.2X29.8X1.70
  • 92025A
    92025-1073 SHIM, 25.2X29.8X1.72
    SHIM, 25.2X29.8X1.72
  • 92025B
    92025-1074 SHIM, 25.2X29.8X1.74
    SHIM, 25.2X29.8X1.74
  • 92025C
    92025-1075 SHIM, 25.2X29.8X1.76
    SHIM, 25.2X29.8X1.76
  • 92025D
    92025-1076 SHIM, 25.2X29.8X1.78
    SHIM, 25.2X29.8X1.78
  • 92025E
    92025-1077 SHIM, 25.2X29.8X1.80
    SHIM, 25.2X29.8X1.80
  • 92025F
    92025-1688 SHIM, 25.3X36X0.15
    SHIM, 25.3X36X0.15
  • 92025G
    92025-1689 SHIM, 25.3X36X0.50
    SHIM, 25.3X36X0.50
  • 92025H
    92025-1690 SHIM, 25.3X36X0.60
    SHIM, 25.3X36X0.60
  • 92025I
    92025-1691 SHIM, 25.3X36X0.70
    SHIM, 25.3X36X0.70
  • 92025J
    92025-1692 SHIM, 25.3X36X0.80
    SHIM, 25.3X36X0.80
  • 92025K
    92025-1693 SHIM, 25.3X36X0.90
    SHIM, 25.3X36X0.90
  • 92025L
    92025-1694 SHIM, 25.3X36X1.00
    SHIM, 25.3X36X1.00
  • 92025M
    92025-1695 SHIM, 25.3X36X1.10
    SHIM, 25.3X36X1.10
  • 92025N
    92025-1696 SHIM, 25.3X36X1.20
    SHIM, 25.3X36X1.20
  • 92025O
    92025-1818 SHIM, T=0.15
    SHIM, T=0.15
  • 92025P
    92025-1819 SHIM, T=0.50
    SHIM, T=0.50
  • 120
    120S0830 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 130
    130S0630 BOLT, FLANGED, 6X30
    BOLT, FLANGED, 6X30
  • 130A
    130S0640 BOLT, FLANGED, 6X40
    BOLT, FLANGED, 6X40
  • 132
    132G0616 BOLT, FLANGED, SMALL, 6X16
    BOLT, FLANGED, SMALL, 6X16
  • 92025Q
    92025-1820 SHIM, T=0.60
    SHIM, T=0.60
  • 92025R
    92025-1821 SHIM, T=0.70
    SHIM, T=0.70
  • 92025S
    92025-1822 SHIM, T=0.80
    SHIM, T=0.80
  • 92025T
    92025-1823 SHIM, T=0.90
    SHIM, T=0.90
  • 92025U
    92025-1824 SHIM, T=1.00
    SHIM, T=1.00
  • 92025V
    92025-1825 SHIM, T=1.20
    SHIM, T=1.20
  • 92025W
    92025-1826 SHIM, T=0.10
    SHIM, T=0.10
  • 92027
    92027-1152 COLLAR, 25.2X29.8X22.8
    COLLAR, 25.2X29.8X22.8
  • 92027A
    92027-1153 COLLAR, 25.2X29.8X22.9
    COLLAR, 25.2X29.8X22.9
  • 92027B
    92027-1154 COLLAR, 25.2X29.8X23
    COLLAR, 25.2X29.8X23
  • 92027C
    92027-1155 COLLAR, 25.2X29.8X23.1
    COLLAR, 25.2X29.8X23.1
  • 92027D
    92027-1156 COLLAR, 25.2X29.8X23.2
    COLLAR, 25.2X29.8X23.2
  • 92027E
    92027-1157 COLLAR, 25.2X29.8X23.3
    COLLAR, 25.2X29.8X23.3
  • 92027F
    92027-1158 COLLAR, 25.2X29.8X23.4
    COLLAR, 25.2X29.8X23.4
  • 92027G
    92027-1159 COLLAR, 25.2X29.8X23.5
    COLLAR, 25.2X29.8X23.5
  • 92027H
    92027-1160 COLLAR, 25.2X29.8X23.6
    COLLAR, 25.2X29.8X23.6
  • 92027I
    92027-1161 COLLAR, 25.2X29.8X23.7
    COLLAR, 25.2X29.8X23.7
  • 92027J
    92027-1162 COLLAR, 25.2X29.8X23.8
    COLLAR, 25.2X29.8X23.8
  • 92027K
    92027-1163 COLLAR, 25.2X29.8X23.9
    COLLAR, 25.2X29.8X23.9
  • 92027L
    92027-1164 COLLAR, 25.2X29.8X24
    COLLAR, 25.2X29.8X24
  • 92027M
    92027-1165 COLLAR, 25.2X29.8X24.1
    COLLAR, 25.2X29.8X24.1
  • 92037
    92037-1069 CLAMP, L=60
    CLAMP, L=60
  • 92043
    92043-1279 PIN, 11.5X14X14
    PIN, 11.5X14X14
  • 92045
    92045-1165 BEARING, BALL, 6305C2
    BEARING, BALL, 6305C2
  • 92049
    92049-1017 SEAL, OIL, SD, 8187
    SEAL, OIL, SD, 8187
  • 92049A
    92049-1038 SEAL, OIL, TC35527
    SEAL, OIL, TC35527
  • 92049B
    92049-1519 SEAL, OIL, TC13225.5
    SEAL, OIL, TC13225.5
  • 92055
    92055-1044 O-RING, ID=18.64
    O-RING, ID=18.64
  • 92062
    92062-1078 NOZZLE, 6X8 (GREEN)
    NOZZLE, 6X8 (GREEN)
  • 92062A
    92062-1083 NOZZLE, 10X10 (SILVER)
    NOZZLE, 10X10 (SILVER)
  • 92072
    92072-1195 BAND, L=202
    BAND, L=202
  • 92116
    92116-1062 BEARING, ROLLER, HI, CAP30205
    BEARING, ROLLER, HI, CAP30205
  • 92145
    92145-1102 SPRING, CAM DAMPER
    SPRING, CAM DAMPER
  • 92151
    92151-1755 BOLT, FLANGED, M6X14
    BOLT, FLANGED, M6X14
  • 92153
    92153-0433 BOLT, 8X80
    BOLT, 8X80
  • 92153A
    92153-0434 BOLT, 8X95
    BOLT, 8X95
  • 671
    671B2565 O-RING, 65MM
    O-RING, 65MM
