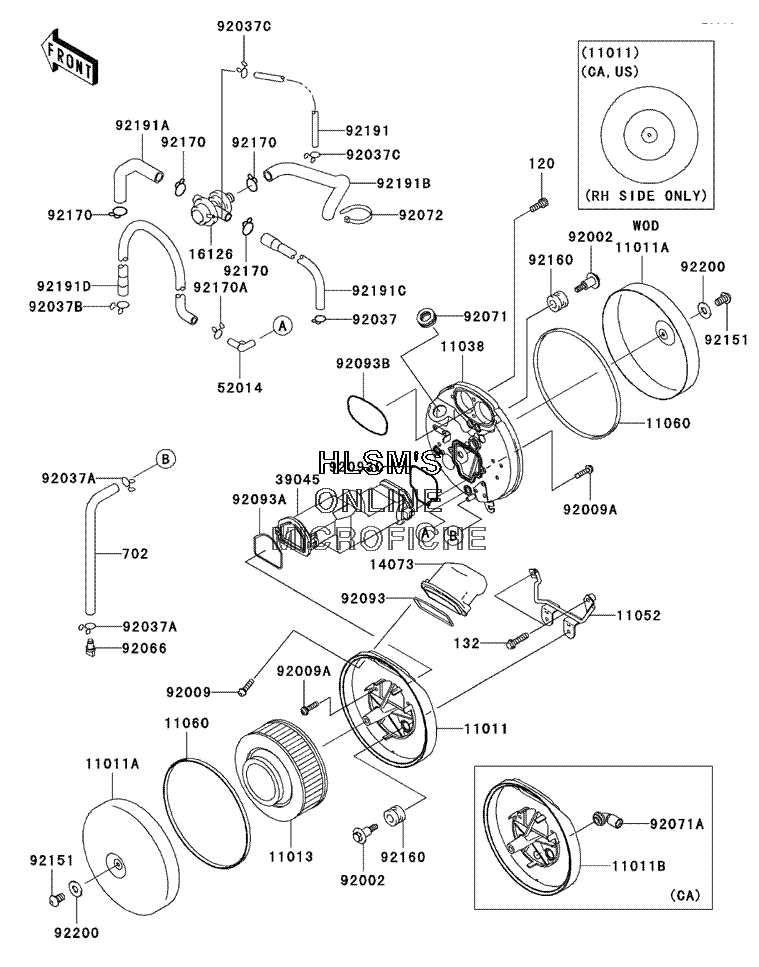

AIR CLEANER для Kawasaki Vulcan 1500 Classic - 2006 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0616 BOLT, SOCKET, 6X16
    BOLT, SOCKET, 6X16
  • 11011
    11011-0020 CASE, AIR FILTER (LEFT) (EXCEPT CALIF.)
    CASE, AIR FILTER (LEFT) (EXCEPT CALIF.)
  • 11011A
    11011-0021 CASE, AIR FILTER, COVER
    CASE, AIR FILTER, COVER
  • 11011B
    11011-1601 CASE, AIR FILTER (LEFT) (CALIF. ONLY)
    CASE, AIR FILTER (LEFT) (CALIF. ONLY)
  • 11013
    11013-1248 ELEMENT, AIR FILTER
    ELEMENT, AIR FILTER
  • 11038
    11038-0005 CASE, ASSY, AIR FILTER (RIGHT)
    CASE, ASSY, AIR FILTER (RIGHT)
  • 11052
    11052-1166 BRACKET
    BRACKET
  • 11060
    11060-1968 GASKET, AIR FILTER CASE
    GASKET, AIR FILTER CASE
  • 14073
    14073-1739 DUCT, AIR FILTER
    DUCT, AIR FILTER
  • 16126
    16126-1384 VALVE, AIR SWITCH
    VALVE, AIR SWITCH
  • 39045
    39045-0003 DUCT, ASSY, CENTER
    DUCT, ASSY, CENTER
  • 52014
    52014-1083 ELBOW
    ELBOW
  • 92002
    92002-1595 BOLT, FLANGED, 6X14X13.5
    BOLT, FLANGED, 6X14X13.5
  • 92009
    92009-1264 SCREW, TAPPING, 5X16
    SCREW, TAPPING, 5X16
  • 92009A
    92009-1905 SCREW, PAN, WP, CROS, 5X20
    SCREW, PAN, WP, CROS, 5X20
  • 92037
    92037-1468 CLAMP
    CLAMP
  • 92037A
    92037-147 CLAMP, TUBE
    CLAMP, TUBE
  • 92037B
    92037-1593 CLAMP
    CLAMP
  • 92037C
    92037-1712 CLAMP
    CLAMP
  • 92066
    92066-1211 PLUG, DRAIN
    PLUG, DRAIN
  • 92071
    92071-1028 GROMMET, AIR FILTER
    GROMMET, AIR FILTER
  • 92071A
    92071-1114 GROMMET, AIR FILTER (CALIF. ONLY)
    GROMMET, AIR FILTER (CALIF. ONLY)
  • 92072
    92072-1195 BAND, L=202
    BAND, L=202
  • 92093
    92093-1408 SEAL, AIR FILTER CASE
    SEAL, AIR FILTER CASE
  • 92093A
    92093-1459 SEAL, DUCT (LEFT)
    SEAL, DUCT (LEFT)
  • 92093B
    92093-1485 SEAL
    SEAL
  • 92093C
    92093-1491 SEAL, DUCT (RIGHT)
    SEAL, DUCT (RIGHT)
  • 92151
    92151-1438 BOLT, 8X14
    BOLT, 8X14
  • 92160
    92160-1594 DAMPER
    DAMPER
  • 92170
    92170-1445 CLAMP, TUBE
    CLAMP, TUBE
  • 92170A
    92170-1695 CLAMP
    CLAMP
  • 92191
    92191-1312 TUBE, THROTTLE, VALVE
    TUBE, THROTTLE, VALVE
  • 92191A
    92191-1359 TUBE, HEAD, FRONT, VALVE
    TUBE, HEAD, FRONT, VALVE
  • 92191B
    92191-1360 TUBE, VALVE, CLEANER
    TUBE, VALVE, CLEANER
  • 92191C
    92191-1369 TUBE, HEAD, REAR, VALVE
    TUBE, HEAD, REAR, VALVE
  • 92191D
    92191-1406 TUBE, BREATHER
    TUBE, BREATHER
  • 92200
    92200-1463 WASHER, 8.5X20X1.6
    WASHER, 8.5X20X1.6
  • 132
    132J0625 BOLT, FLANGED, SMALL, 6X25
    BOLT, FLANGED, SMALL, 6X25
  • 702
    702A07230 TUBE, RUBBER, 7X10X230
    TUBE, RUBBER, 7X10X230
