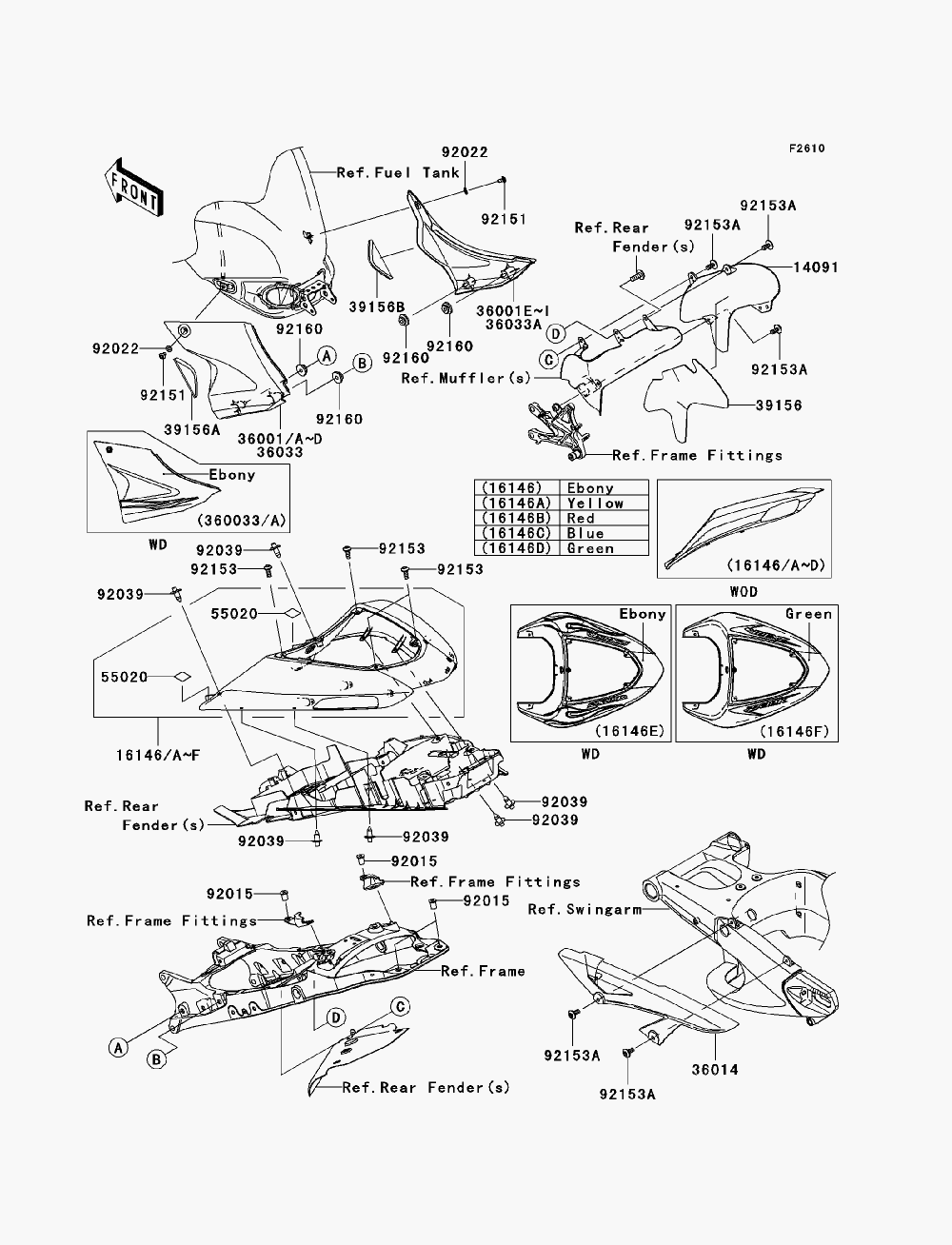

SIDE COVERS W/ CHAIN COVER для Kawasaki NINJA ZX -10R - 2006 года выпуска

  • №
    Артикул
    Название
  • 14091
    14091-0499 COVER, JOINT PIPE
    COVER, JOINT PIPE
  • 16146
    16146-0040-H8 COVER-ASSY, TAIL, EBONY (FOR H8)
    COVER-ASSY, TAIL, EBONY (FOR H8)
  • 16146A
    16146-0040-10A COVER-ASSY, TAIL, P.S.YELLOW (FOR 10A)
    COVER-ASSY, TAIL, P.S.YELLOW (FOR 10A)
  • 16146D
    16146-0040-777 COVER-ASSY, TAIL, L.GREEN (FOR 777)
    COVER-ASSY, TAIL, L.GREEN (FOR 777)
  • 36001
    36001-0071-H8 COVER-SIDE, LEFT HAND, EBONY (FOR H8)
    COVER-SIDE, LEFT HAND, EBONY (FOR H8)
  • 36001A
    36001-0071-10A COVER-SIDE, LEFT HAND, P.S.YELLOW (FOR 10A)
    COVER-SIDE, LEFT HAND, P.S.YELLOW (FOR 10A)
  • 36001D
    36001-0071-777 COVER-SIDE, LEFT HAND, L.GREEN (FOR 777)
    COVER-SIDE, LEFT HAND, L.GREEN (FOR 777)
  • 36001E
    36001-0072-H8 COVER-SIDE, RIGHT HAND, EBONY (FOR H8)
    COVER-SIDE, RIGHT HAND, EBONY (FOR H8)
  • 36001F
    36001-0072-10A COVER-SIDE, RIGHT HAND, P.S.YELLOW (FOR 10A)
    COVER-SIDE, RIGHT HAND, P.S.YELLOW (FOR 10A)
  • 36001I
    36001-0072-777 COVER-SIDE, RIGHT HAND, L.GREEN (FOR 777)
    COVER-SIDE, RIGHT HAND, L.GREEN (FOR 777)
  • 36014
    36014-0029 CASE-CHAIN
    CASE-CHAIN
  • 39156
    39156-0138 PAD, JOINT PIPE COVER
    PAD, JOINT PIPE COVER
  • 39156A
    39156-0144 PAD, SIDE COVER, LEFT HAND
    PAD, SIDE COVER, LEFT HAND
  • 39156B
    39156-0145 PAD, SIDE COVER, RIGHT HAND
    PAD, SIDE COVER, RIGHT HAND
  • 55020
    55020-0241 GUARD
    GUARD
  • 92015
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92022
    92022-183 WASHER, 6.2X11X1.5
    WASHER, 6.2X11X1.5
  • 92039
    92039-0015 RIVET
    RIVET
  • 92151
    92151-1219 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 92153
    92153-1244 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92153A
    92153-1612 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92160
    92160-1613 DAMPER
    DAMPER
