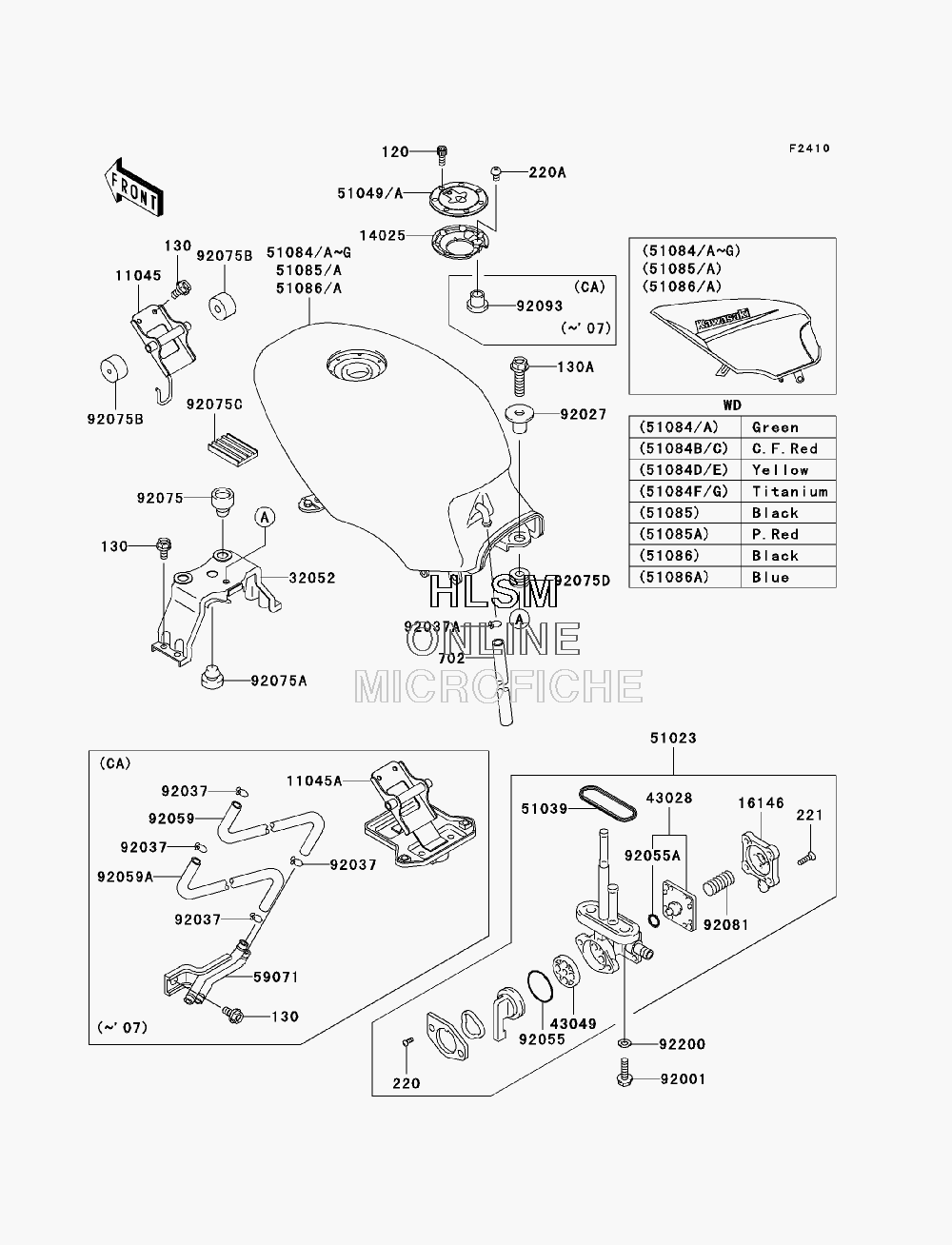

FUEL TANK для Kawasaki NINJA 500R - 2006 года выпуска

  • №
    Артикул
    Название
  • 11045
    11045-1362 BRACKET, FUEL TANK, FRONT (EXCEPT CALIF.)
    BRACKET, FUEL TANK, FRONT (EXCEPT CALIF.)
  • 11045A
    11045-1389 BRACKET, FUEL TANK, FRONT (CALIF. ONLY)
    BRACKET, FUEL TANK, FRONT (CALIF. ONLY)
  • 14025
    14025-1913 COVER, TANK CAP
    COVER, TANK CAP
  • 16146
    16146-1010 COVER-ASSY, TAP DIAPHRAGM
    COVER-ASSY, TAP DIAPHRAGM
  • 32052
    32052-1394 BRACKET-TANK, FUEL, REAR
    BRACKET-TANK, FUEL, REAR
  • 43028
    43028-1033 DIAPHRAGM
    DIAPHRAGM
  • 43049
    43049-1103 PACKING
    PACKING
  • 51023
    51023-1389 TAP-ASSY, FUEL
    TAP-ASSY, FUEL
  • 51039
    51039-003 RING, TAP FLANGED
    RING, TAP FLANGED
  • 51049A
    51049-1130 CAP-TANK, FUEL
    CAP-TANK, FUEL
  • 51084
    51084-5071-777 TANK-COMP-FUEL, L. GREEN (EXCEPT CALIF.) (FOR 777)
    TANK-COMP-FUEL, L. GREEN (EXCEPT CALIF.) (FOR 777)
  • 51084A
    51084-5072-777 TANK-COMP-FUEL, L. GREEN (CALIF. ONLY) (FOR 777)
    TANK-COMP-FUEL, L. GREEN (CALIF. ONLY) (FOR 777)
  • 51084B
    51084-5073-816 TANK-COMP-FUEL, C. F. RED (EXCEPT CALIF.) (FOR 816)
    TANK-COMP-FUEL, C. F. RED (EXCEPT CALIF.) (FOR 816)
  • 51084C
    51084-5074-816 TANK-COMP-FUEL, C. F. RED (CALIF. ONLY) (FOR 816)
    TANK-COMP-FUEL, C. F. RED (CALIF. ONLY) (FOR 816)
  • 59071
    59071-1122 JOINT, EVAPO (CALIF. ONLY)
    JOINT, EVAPO (CALIF. ONLY)
  • 92001
    92001-1091 BOLT, 6X20
    BOLT, 6X20
  • 92027
    92027-1780 COLLAR, L=19.3
    COLLAR, L=19.3
  • 92037
    92037-010 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92037A
    92037-1712 CLAMP
    CLAMP
  • 92055
    92055-1085 RING-O, TAP LEVER
    RING-O, TAP LEVER
  • 92055A
    92055-1664 RING-O
    RING-O
  • 92059
    92059-1767 TUBE, EVAPO (CALIF. ONLY)
    TUBE, EVAPO (CALIF. ONLY)
  • 92059A
    92059-1768 TUBE, EVAPO (CALIF. ONLY)
    TUBE, EVAPO (CALIF. ONLY)
  • 92075
    92075-015 DAMPER
    DAMPER
  • 92075A
    92075-1045 DAMPER
    DAMPER
  • 92075B
    92075-1115 DAMPER, FUEL TANK, FRONT
    DAMPER, FUEL TANK, FRONT
  • 92075C
    92075-1489 DAMPER
    DAMPER
  • 92075D
    92075-1736 DAMPER
    DAMPER
  • 92081
    92081-1240 SPRING, TAP DIAPHRAGM
    SPRING, TAP DIAPHRAGM
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)
    SEAL, FUEL TANK CAP (CALIF. ONLY)
  • 92200
    92200-0117 WASHER, 6.5X11.5X0.8
    WASHER, 6.5X11.5X0.8
  • 120
    120CB0512 BOLT-SOCKET, 5X12
    BOLT-SOCKET, 5X12
  • 130
    130AA0612 BOLT-FLANGED, 6X12 (EXCEPT CALIF.)
    BOLT-FLANGED, 6X12 (EXCEPT CALIF.)
  • 130
    130AA0612 BOLT-FLANGED, 6X12 (CALIF. ONLY)
    BOLT-FLANGED, 6X12 (CALIF. ONLY)
  • 130A
    130BA0830 BOLT-FLANGED, 8X30
    BOLT-FLANGED, 8X30
  • 220
    220AA0308 SCREW-PAN-CROS, 3X8
    SCREW-PAN-CROS, 3X8
  • 220A
    220AB0508 SCREW-PAN-CROSS, 5X8
    SCREW-PAN-CROSS, 5X8
  • 221
    221AA0414 SCREW-CSK-CROS, 4X14
    SCREW-CSK-CROS, 4X14
  • 702
    702A07380 TUBE-BREATHER (BULK)
    TUBE-BREATHER (BULK)
