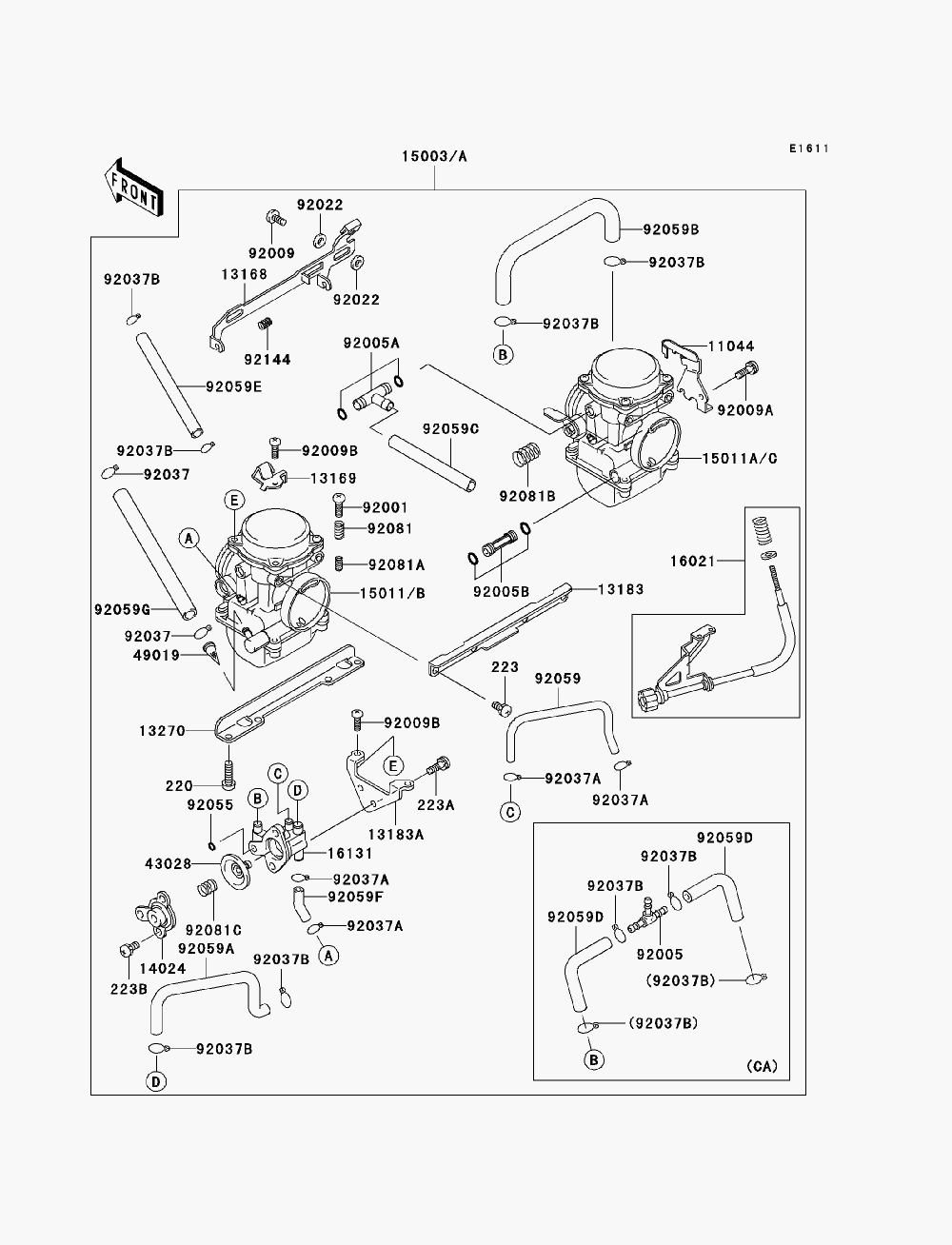

CARBURETOR для Kawasaki NINJA 250R - 2006 года выпуска
-
№АртикулНазвание
-
1104411044-1061 BRACKET, THROTTLE CABLEBRACKET, THROTTLE CABLE
-
1316813168-1330 LEVER, STARTERLEVER, STARTER
-
1316913169-1965 PLATE, STARTER CABLEPLATE, STARTER CABLE
-
1318313183-1029 PLATE, CARBURETOR STAY, UPPPLATE, CARBURETOR STAY, UPP
-
13183A13183-1031 PLATE, AIR CUT VALVEPLATE, AIR CUT VALVE
-
1327013270-1073 PLATE, CARBURETOR STAY, LWRPLATE, CARBURETOR STAY, LWR
-
1402414024-1327 COVER, AIR CUT VALVECOVER, AIR CUT VALVE
-
1500315003-1602 CARBURETOR-ASSY (EXCEPT CALIF.)CARBURETOR-ASSY (EXCEPT CALIF.)
-
15003A15003-1603 CARBURETOR-ASSY (CALIF. ONLY)CARBURETOR-ASSY (CALIF. ONLY)
-
1501115011-1820 CARBURETOR, LEFT HAND (EXCEPT CALIF.)CARBURETOR, LEFT HAND (EXCEPT CALIF.)
-
15011A15011-1821 CARBURETOR, RIGHT HAND (EXCEPT CALIF.)CARBURETOR, RIGHT HAND (EXCEPT CALIF.)
-
15011B15011-1826 CARBURETOR, LEFT HAND (CALIF. ONLY)CARBURETOR, LEFT HAND (CALIF. ONLY)
-
15011C15011-1827 CARBURETOR, RIGHT HAND (CALIF. ONLY)CARBURETOR, RIGHT HAND (CALIF. ONLY)
-
1602116021-1173 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1613116131-1062 BODY-VALVE, DIAPHRAGMBODY-VALVE, DIAPHRAGM
-
4302843028-1053 DIAPHRAGM, 5.9MM, AIR CUT VALVEDIAPHRAGM, 5.9MM, AIR CUT VALVE
-
4901949019-1092 FILTER-FUELFILTER-FUEL
-
9200192001-1998 BOLT, THROTTLE ADJUSTBOLT, THROTTLE ADJUST
-
9200592005-1112 FITTING, FUEL, T-TYPE (CALIF. ONLY)FITTING, FUEL, T-TYPE (CALIF. ONLY)
-
92005A92005-1306 FITTINGFITTING
-
92005B92005-1310 FITTINGFITTING
-
9200992009-1262 SCREWSCREW
-
92009A92009-1365 SCREW, 5X10SCREW, 5X10
-
92009B92009-1446 SCREW, 4X18SCREW, 4X18
-
9202292022-1199 WASHER, 6.1X11X0.8, POLYACETALWASHER, 6.1X11X0.8, POLYACETAL
-
9203792037-1075 CLAMP, FUEL TUBECLAMP, FUEL TUBE
-
92037A92037-1142 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1477 CLAMP, TUBE (EXCEPT CALIF.)CLAMP, TUBE (EXCEPT CALIF.)
-
92037B92037-1477 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
9205592055-1245 O-RINGO-RING
-
9205992059-1140 TUBE, 3.5X6.5X180TUBE, 3.5X6.5X180
-
92059A92059-1201 TUBE, 5X9X160TUBE, 5X9X160
-
92059B92059-1377 TUBE, 5X9X180 (EXCEPT CALIF.)TUBE, 5X9X180 (EXCEPT CALIF.)
-
220220B0616 SCREW-PAN-CROS, 6X16SCREW-PAN-CROS, 6X16
-
223223C0510 SCREW-PAN-WS-CROS, 5X10SCREW-PAN-WS-CROS, 5X10
-
223A223D0408 SCREW-PAN-WS-CROS, 4X8SCREW-PAN-WS-CROS, 4X8
-
223B223D0410 SCREW-PAN-WS-CROS, 4X10SCREW-PAN-WS-CROS, 4X10
-
92059C92059-1465 TUBE, 6.5X9.5X500TUBE, 6.5X9.5X500
-
92059D92059-1627 TUBE, 5X9X90 (CALIF. ONLY)TUBE, 5X9X90 (CALIF. ONLY)
-
92059E92059-1634 TUBE, 5X9X140TUBE, 5X9X140
-
92059F92059-1722 TUBE, 3.5X6.5X26TUBE, 3.5X6.5X26
-
92059G92059-1860 TUBE, 7.3X12.5X150TUBE, 7.3X12.5X150
-
9208192081-1620 SPRINGSPRING
-
92081A92081-1621 SPRING, THROTTLE ADJUST LWRSPRING, THROTTLE ADJUST LWR
-
92081B92081-1622 SPRING, THROTTLE ADJUST CNTSPRING, THROTTLE ADJUST CNT
-
92081C92081-1719 SPRING, AIR CUT VALVESPRING, AIR CUT VALVE
-
9214492144-1048 SPRING, THROTTLE ADJUST UPPSPRING, THROTTLE ADJUST UPP
