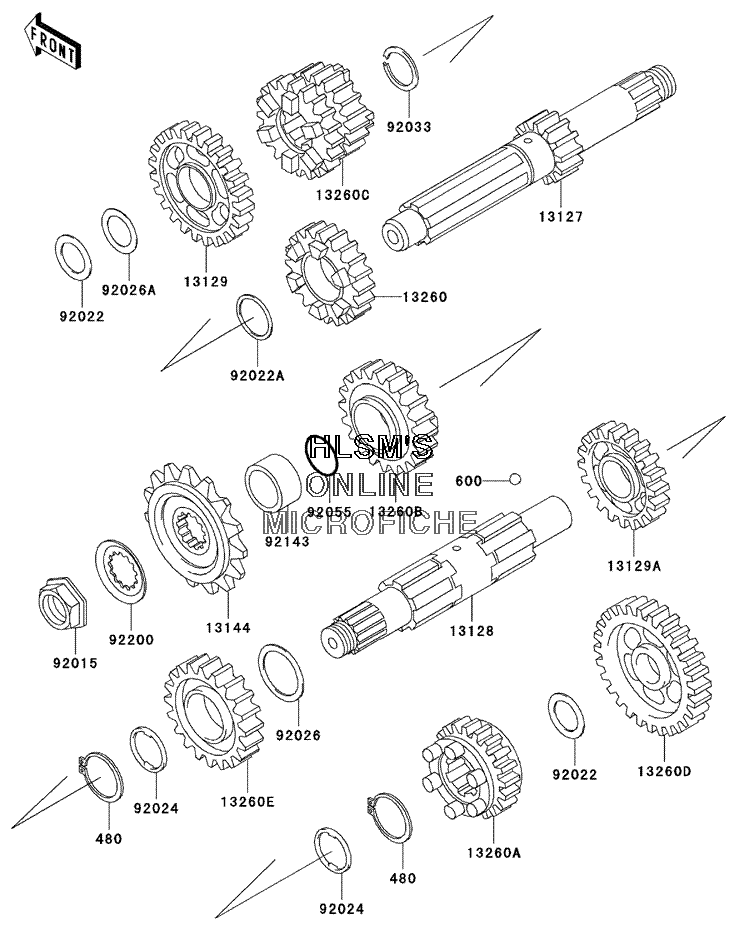

TRANSMISSION для Kawasaki Vulcan 800 - 2005 года выпуска

  • №
    Артикул
    Название
  • 480
    480J3000 CIRCLIP, TYPE, C, 30MM
    CIRCLIP, TYPE, C, 30MM
  • 600
    600A0500 BALL, STEEL, 5/32"
    BALL, STEEL, 5/32"
  • 13127
    13127-1241 SHAFT, TRANSMISSION INPUT (15 TEETH)
    SHAFT, TRANSMISSION INPUT (15 TEETH)
  • 13128
    13128-1204 SHAFT, TRANSMISSION OUTPUT
    SHAFT, TRANSMISSION OUTPUT
  • 13129
    13129-1632 GEAR, INPUT 5TH (28 TEETH)
    GEAR, INPUT 5TH (28 TEETH)
  • 13129A
    13129-1635 GEAR, OUTPUT 3RD (32 TEETH)
    GEAR, OUTPUT 3RD (32 TEETH)
  • 13144
    13144-1304 SPROCKET, OUTPUT (17 TEETH)
    SPROCKET, OUTPUT (17 TEETH)
  • 13260
    13260-1473 GEAR, INPUT 4TH (29 TEETH)
    GEAR, INPUT 4TH (29 TEETH)
  • 13260A
    13260-1476 GEAR, OUTPUT 4TH (29 TEETH)
    GEAR, OUTPUT 4TH (29 TEETH)
  • 13260B
    13260-1477 GEAR, OUTPUT 5TH (24 TEETH)
    GEAR, OUTPUT 5TH (24 TEETH)
  • 13260C
    13260-1486 GEAR, INPUT 2ND AND 3RD (20 AND 26 TEETH)
    GEAR, INPUT 2ND AND 3RD (20 AND 26 TEETH)
  • 13260D
    13260-1487 GEAR, OUTPUT LOW (38 TEETH)
    GEAR, OUTPUT LOW (38 TEETH)
  • 13260E
    13260-1488 GEAR, OUTPUT 2ND (33 TEETH)
    GEAR, OUTPUT 2ND (33 TEETH)
  • 92015
    92015-1963 NUT, 20MM
    NUT, 20MM
  • 92022
    92022-112 WASHER, 20.5X30X1, STEEL
    WASHER, 20.5X30X1, STEEL
  • 92022A
    92022-161 WASHER, 25.3X30X1
    WASHER, 25.3X30X1
  • 92024
    92024-069 WASHER, TOOTHED, 30.5X38X1
    WASHER, TOOTHED, 30.5X38X1
  • 92026
    92026-079 SPACER, 30X38X1.0
    SPACER, 30X38X1.0
  • 92026A
    92026-1535 SPACER, 20.5X30X0.5
    SPACER, 20.5X30X0.5
  • 92033
    92033-026 RING, SNAP
    RING, SNAP
  • 92055
    92055-035 O-RING
    O-RING
  • 92143
    92143-1735 COLLAR
    COLLAR
  • 92200
    92200-1065 WASHER
    WASHER
