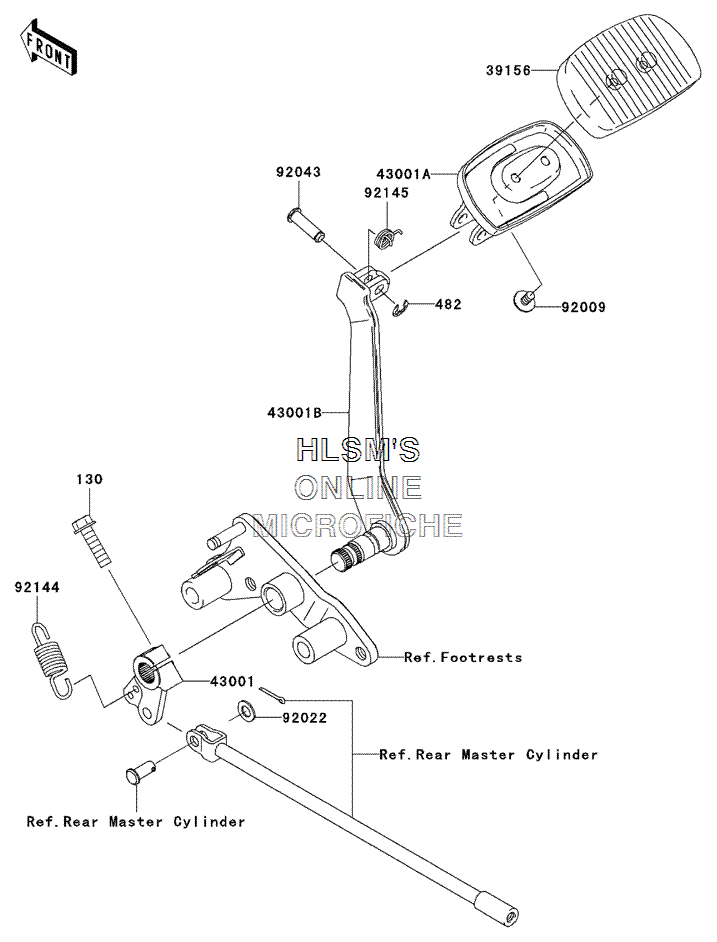

BRAKE PEDAL W/ TORQUE LINK для Kawasaki Vulcan 2000 Limited - 2005 года выпуска
-
№АртикулНазвание
-
130130L0830 BOLT-FLANGEDBOLT-FLANGED
-
482482L7000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
3915639156-0045 PAD, BRAKE PEDALPAD, BRAKE PEDAL
-
4300143001-0022 LEVER-BRAKELEVER-BRAKE
-
43001A43001-0023 LEVER-BRAKELEVER-BRAKE
-
43001B43001-0031 LEVER-BRAKE, PADALLEVER-BRAKE, PADAL
-
9200992009-1818 SCREW, 6X10SCREW, 6X10
-
9202292022-1582 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
-
9204392043-0047 PIN, 8X24.5PIN, 8X24.5
-
9214492144-1169 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
9214592145-0168 SPRINGSPRING
