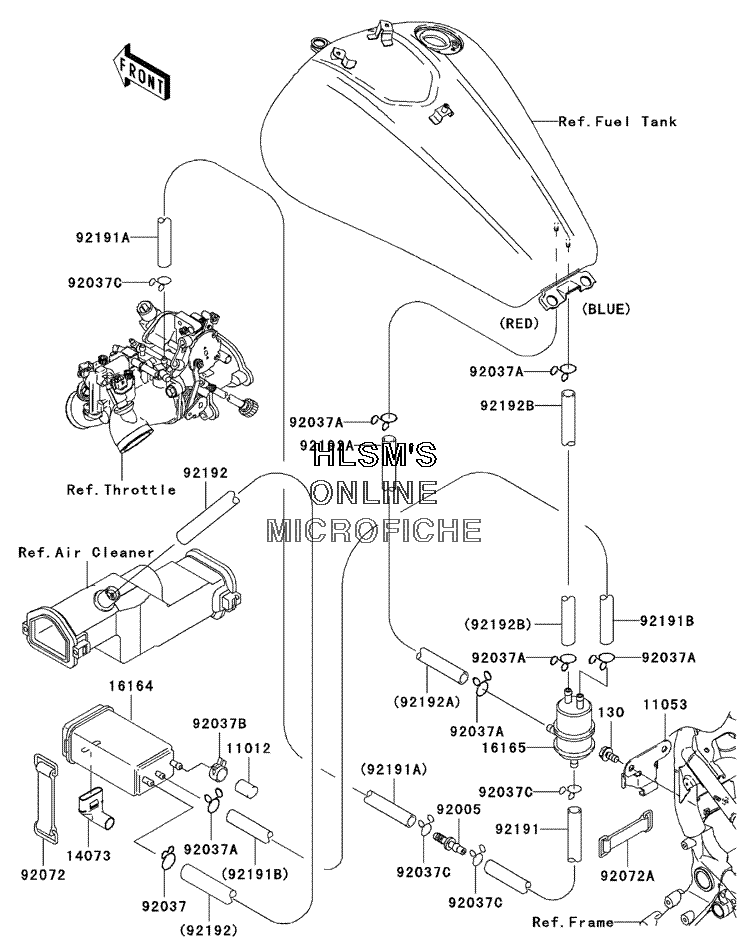

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki Vulcan 1600 Nomad - 2005 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0612 BOLT, FLANGED (CALIF. ONLY)
    BOLT, FLANGED (CALIF. ONLY)
  • 11012
    11012-1388 CAP, CANISTER (CALIF. ONLY)
    CAP, CANISTER (CALIF. ONLY)
  • 11053
    11053-0006 BRACKET, EVAPO (CALIF. ONLY)
    BRACKET, EVAPO (CALIF. ONLY)
  • 14073
    14073-1219 DUCT, CANISTER (CALIF. ONLY)
    DUCT, CANISTER (CALIF. ONLY)
  • 16164
    16164-1070 CANISTER (CALIF. ONLY)
    CANISTER (CALIF. ONLY)
  • 16165
    16165-1001 SEPARATOR (CALIF. ONLY)
    SEPARATOR (CALIF. ONLY)
  • 92005
    92005-1206 FITTING (CALIF. ONLY)
    FITTING (CALIF. ONLY)
  • 92037
    92037-1104 CLAMP, HOSE (CALIF. ONLY)
    CLAMP, HOSE (CALIF. ONLY)
  • 92037A
    92037-147 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92037B
    92037-1512 CLAMP, CANISTER (CALIF. ONLY)
    CLAMP, CANISTER (CALIF. ONLY)
  • 92037C
    92037-1712 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92072
    92072-045 BAND, L=90 (CALIF. ONLY)
    BAND, L=90 (CALIF. ONLY)
  • 92072A
    92072-1419 BAND, L=50 (CALIF. ONLY)
    BAND, L=50 (CALIF. ONLY)
  • 92191
    92191-1375 TUBE, THROTTLE, SEPARATOR (WHITE) (CALIF. ONLY)
    TUBE, THROTTLE, SEPARATOR (WHITE) (CALIF. ONLY)
  • 92191A
    92191-1414 TUBE, 4X9X180 (WHITE) (CALIF. ONLY)
    TUBE, 4X9X180 (WHITE) (CALIF. ONLY)
  • 92191B
    92191-1677 TUBE, SEPARATOR, CANISTER (BLUE) (CALIF. ONLY)
    TUBE, SEPARATOR, CANISTER (BLUE) (CALIF. ONLY)
  • 92192
    92192-0027 TUBE, CANISTER, FILTER (GREEN) (CALIF. ONLY)
    TUBE, CANISTER, FILTER (GREEN) (CALIF. ONLY)
  • 92192A
    92192-0214 TUBE, TANK, SEPARATOR (RED) (CALIF. ONLY)
    TUBE, TANK, SEPARATOR (RED) (CALIF. ONLY)
  • 92192B
    92192-0215 TUBE, TANK, SEPARATOR (BLUE) (CALIF. ONLY)
    TUBE, TANK, SEPARATOR (BLUE) (CALIF. ONLY)
