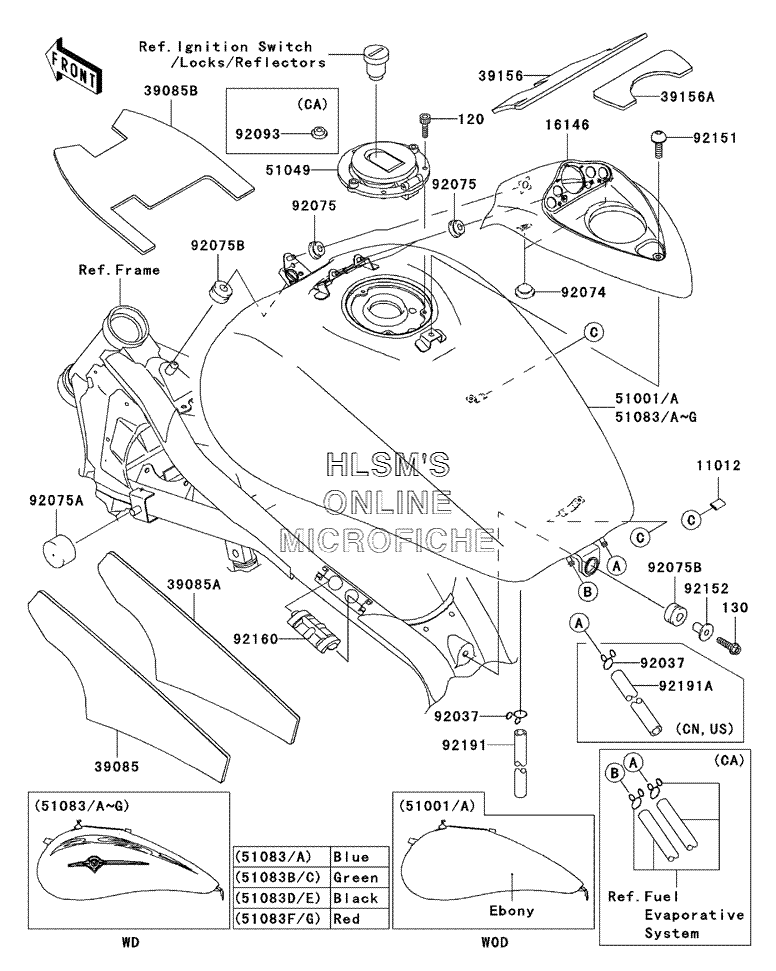

FUEL TANK для Kawasaki Vulcan 1600 Mean Streak - 2005 года выпуска

  • №
    Артикул
    Название
  • 11012
    11012-1725 CAP
    CAP
  • 16146
    16146-0006 COVER-ASSY, FUEL TANK
    COVER-ASSY, FUEL TANK
  • 39085
    39085-1065 PAD-TANK, FUEL TANK (LEFT)
    PAD-TANK, FUEL TANK (LEFT)
  • 39085A
    39085-1066 PAD-TANK, FUEL TANK (RIGHT)
    PAD-TANK, FUEL TANK (RIGHT)
  • 39085B
    39085-1067 PAD-TANK, FUEL TANK, CENTER
    PAD-TANK, FUEL TANK, CENTER
  • 39156
    39156-1700 PAD, FUEL TANK COVER, FRONT
    PAD, FUEL TANK COVER, FRONT
  • 39156A
    39156-1701 PAD, FUEL TANK COVER, REAR
    PAD, FUEL TANK COVER, REAR
  • 51001
    51001-1681-H8 TANK-COMP-FUEL (EBONY) (CALIF, ONLY)
    TANK-COMP-FUEL (EBONY) (CALIF, ONLY)
  • 51001A
    51001-1682-H8 TANK-COMP-FUEL (EBONY) (EXCEPT CALIF.)
    TANK-COMP-FUEL (EBONY) (EXCEPT CALIF.)
  • 51049
    51049-0009 CAP-TANK, FUEL
    CAP-TANK, FUEL
  • 51083F
    51083-5349-724 TANK-COMP-FUEL (P.M.RED) (EXCEPT CALIF.)
    TANK-COMP-FUEL (P.M.RED) (EXCEPT CALIF.)
  • 51083G
    51083-5350-724 TANK-COMP-FUEL (P.M.RED) (CALIF, ONLY)
    TANK-COMP-FUEL (P.M.RED) (CALIF, ONLY)
  • 120
    120S0512 BOLT-SOCKET
    BOLT-SOCKET
  • 130
    130H0830 BOLT-FLANGED, 8X30
    BOLT-FLANGED, 8X30
  • 92037
    92037-147 CLAMP, TUBE (CALIF, ONLY)
    CLAMP, TUBE (CALIF, ONLY)
  • 92037
    92037-147 CLAMP, TUBE (EXCEPT CALIF.)
    CLAMP, TUBE (EXCEPT CALIF.)
  • 92074
    92074-028 PLUG, 7X2
    PLUG, 7X2
  • 92075
    92075-1011 DAMPER
    DAMPER
  • 92075A
    92075-125 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92075B
    92075-1736 DAMPER
    DAMPER
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF, ONLY)
    SEAL, FUEL TANK CAP (CALIF, ONLY)
  • 92151
    92151-1940 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 92152
    92152-1393 COLLAR
    COLLAR
  • 92160
    92160-1751 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92191
    92191-1272 TUBE, DRAIN
    TUBE, DRAIN
  • 92191A
    92191-1529 TUBE, 5X10X650 (EXCEPT CALIF.)
    TUBE, 5X10X650 (EXCEPT CALIF.)
