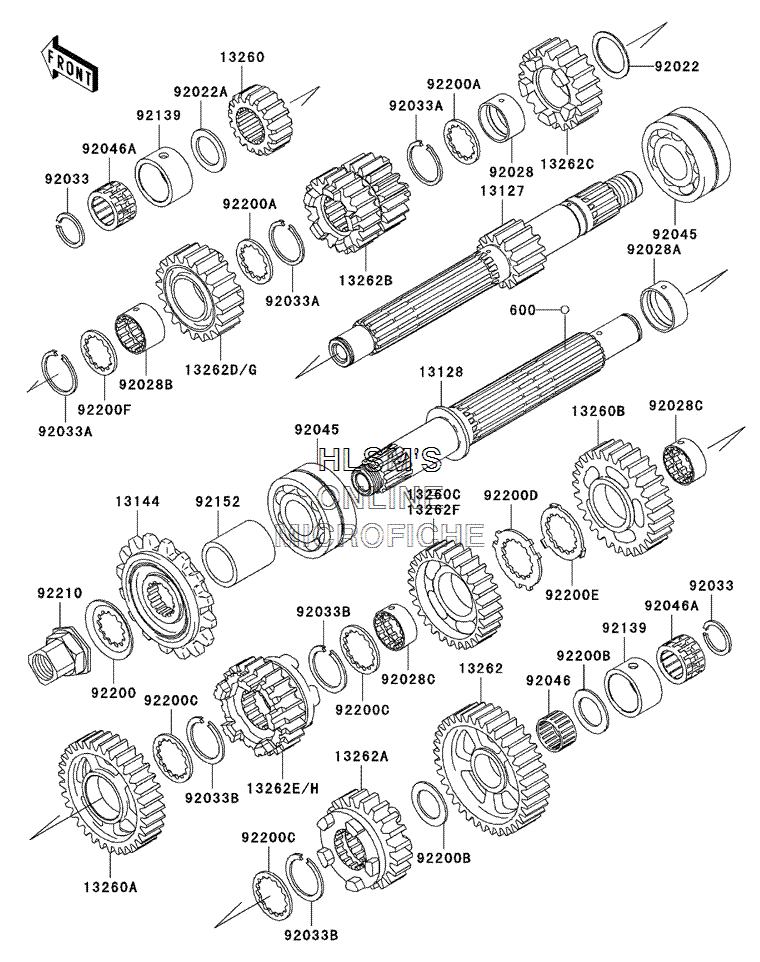

TRANSMISSION для Kawasaki Z1000 - 2004 года выпуска
-
№АртикулНазвание
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1312713127-0007 SHAFT, TRANSMISSION INPUTSHAFT, TRANSMISSION INPUT
-
1312813128-1260 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1314413144-1320 SPROCKET, OUTPUT (16 TEETH)SPROCKET, OUTPUT (16 TEETH)
-
1326013260-1681 GEAR, INPUT 2ND (17 TEETH)GEAR, INPUT 2ND (17 TEETH)
-
13260A13260-1686 GEAR, OUTPUT 2ND (33 TEETH)GEAR, OUTPUT 2ND (33 TEETH)
-
13260B13260-1880 GEAR, OUTPUT 3RD (28 TEETH)GEAR, OUTPUT 3RD (28 TEETH)
-
1326213262-0029 GEAR, OUTPUT LOW (36 TEETH)GEAR, OUTPUT LOW (36 TEETH)
-
13262A13262-0030 GEAR, OUTPUT 5TH (24 TEETH)GEAR, OUTPUT 5TH (24 TEETH)
-
13262B13262-0031 GEAR, INPUT 3RD AND 4TH (18/21 TEETH)GEAR, INPUT 3RD AND 4TH (18/21 TEETH)
-
13262C13262-0062 GEAR, INPUT 5TH (20 TEETH)GEAR, INPUT 5TH (20 TEETH)
-
13262D13262-0074 GEAR, INPUT TOP (21 TEETH)GEAR, INPUT TOP (21 TEETH)
-
13262E13262-0076 GEAR, OUTPUT TOP (23 TEETH)GEAR, OUTPUT TOP (23 TEETH)
-
13262F13262-0077 GEAR, OUTPUT 4TH (28 TEETH) (SERIAL ZRT00AE001736 AND BELOW)GEAR, OUTPUT 4TH (28 TEETH) (SERIAL ZRT00AE001736 AND BELOW)
-
9202292022-1109 WASHER, 25.3X33X1WASHER, 25.3X33X1
-
92022A92022-112 WASHER, 20.5X30X1, STEELWASHER, 20.5X30X1, STEEL
-
9202892028-1735 BUSHING, INPUT 5TH GEARBUSHING, INPUT 5TH GEAR
-
92028A92028-1739 BUSHING, OUTPUT, 2NDBUSHING, OUTPUT, 2ND
-
92028B92028-1915 BUSHING, INPUT TOP GEARBUSHING, INPUT TOP GEAR
-
92028C92028-1968 BUSHING, OUTPUT, 3RD AND 4THBUSHING, OUTPUT, 3RD AND 4TH
-
9203392033-015 RING, SNAP, 20MMRING, SNAP, 20MM
-
92033A92033-026 RING, SNAP, 24MMRING, SNAP, 24MM
-
92033B92033-1249 RING, SNAP, T=1.5RING, SNAP, T=1.5
-
9204592045-0003 BEARING, BALL, DAC2557NSSHBEARING, BALL, DAC2557NSSH
-
9204692046-1219 BEARING, NEEDLE, K20X24X13BEARING, NEEDLE, K20X24X13
-
92046A92046-1303 BEARING, NEEDLE, PK20X27X17X3BEARING, NEEDLE, PK20X27X17X3
-
9213992139-1090 BUSHING, 27X34X18.6BUSHING, 27X34X18.6
-
9215292152-1466 COLLAR, SPROCKETCOLLAR, SPROCKET
-
9220092200-1065 WASHERWASHER
-
92200A92200-1239 WASHER, 25.2X31.0X1.5WASHER, 25.2X31.0X1.5
-
92200B92200-1375 WASHER, 20.5X31X1.5WASHER, 20.5X31X1.5
-
92200C92200-1457 WASHER, T=2.0WASHER, T=2.0
-
92200D92200-1522 WASHER, OUTPUT 4THWASHER, OUTPUT 4TH
-
92200E92200-1523 WASHER, OUTPUT 3RDWASHER, OUTPUT 3RD
-
92200F92200-1524 WASHER, INPUTWASHER, INPUT
-
9221092210-1098 NUT, SPROCKETNUT, SPROCKET
