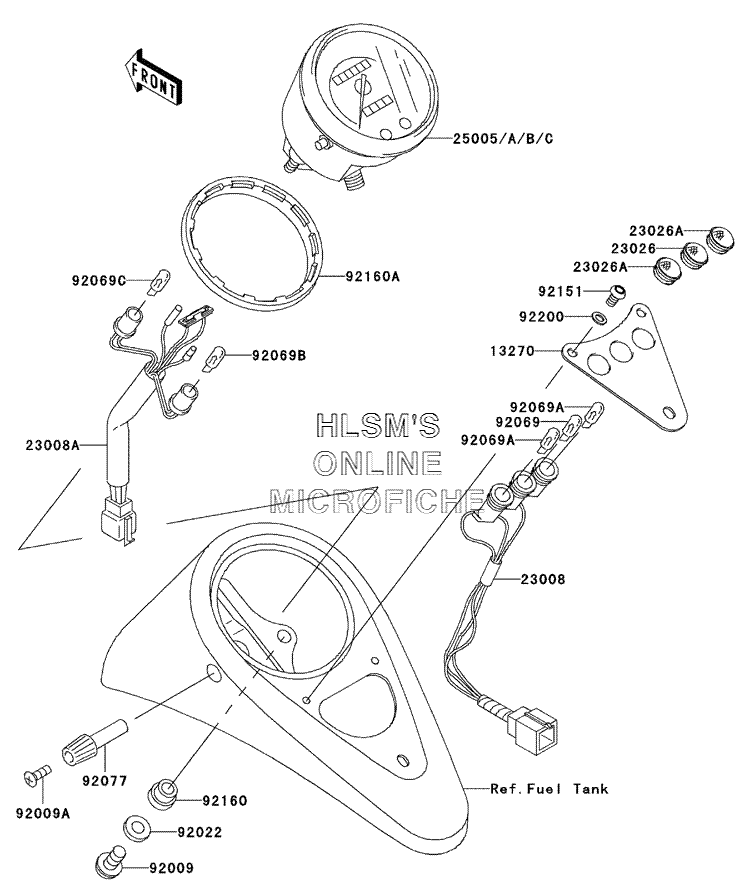

METER(S) для Kawasaki Vulcan 800 Drifter - 2004 года выпуска`
-
№АртикулНазвание
-
1327013270-1637 PLATE, PILOT LAMPPLATE, PILOT LAMP
-
2300823008-1546 SOCKET, ASSY, PILOT LAMPSOCKET, ASSY, PILOT LAMP
-
23008A23008-1604 SOCKET, ASSY, SPEEDOMETERSOCKET, ASSY, SPEEDOMETER
-
2302623026-1171 LENS (GREEN)LENS (GREEN)
-
23026A23026-1173 LENS (RED)LENS (RED)
-
25005C25005-1724 SPEEDOMETER, MPHSPEEDOMETER, MPH
-
9200992009-1690 SCREW, 4X6SCREW, 4X6
-
92009A92009-1799 SCREW, 3X8SCREW, 3X8
-
9202292022-1949 WASHER, 4.3X12.5X1WASHER, 4.3X12.5X1
-
9206992069-1007 BULB, 12V 3.4W, T10BULB, 12V 3.4W, T10
-
92069A92069-1059 BULB, 12V 1.7W, T10BULB, 12V 1.7W, T10
-
92069B92069-1068 BULB, 12V 3W, T6.5BULB, 12V 3W, T6.5
-
92069C92069-1070 BULB, 12V 1.7W, T6.5BULB, 12V 1.7W, T6.5
-
9207792077-1117 KNOB, TRIPKNOB, TRIP
-
9215192151-1449 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
9216092160-1068 DAMPERDAMPER
-
92160A92160-1380 DAMPER, SHOCK, METERDAMPER, SHOCK, METER
-
9220092200-1465 WASHER, 6.2X10X1WASHER, 6.2X10X1
