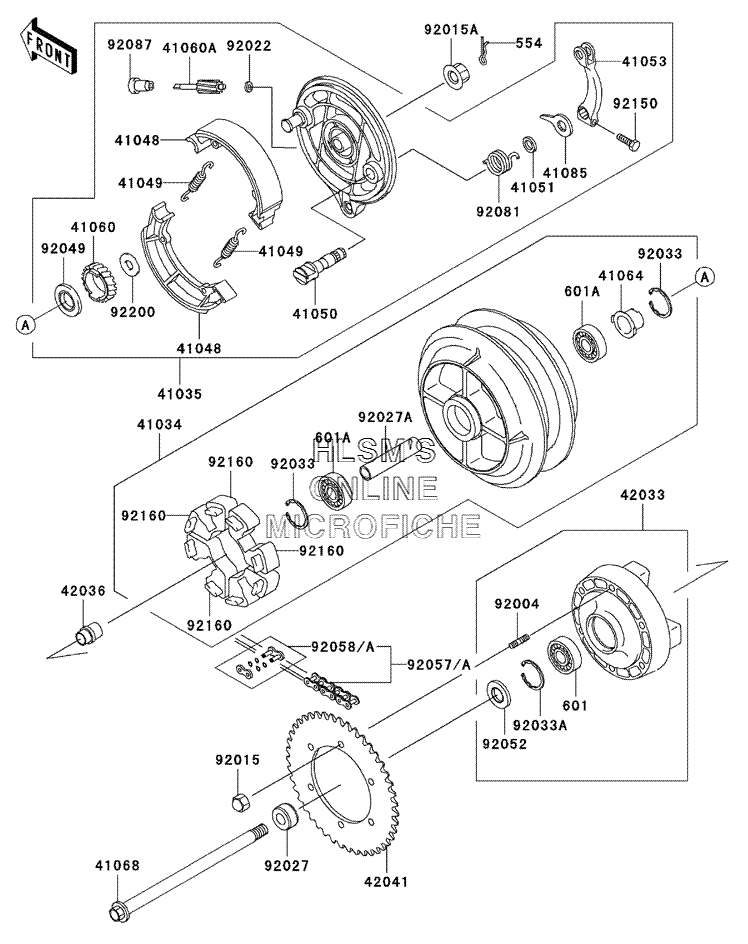

WHEEL - REAR W/ CHAIN для Kawasaki Vulcan 800 Classic - 2004 года выпуска
-
№АртикулНазвание
-
554554A1000 PIN, SNAP, 10MMPIN, SNAP, 10MM
-
601601B6205UG BEARING, BALL, #6205UGBEARING, BALL, #6205UG
-
601A601B6303UU BEARING, BALL, #6303UUC3BEARING, BALL, #6303UUC3
-
4103441034-1248 DRUM, ASSY, REAR BRAKEDRUM, ASSY, REAR BRAKE
-
4103541035-1482 PANEL, ASSY, BRAKE, REARPANEL, ASSY, BRAKE, REAR
-
4104841048-1070 SHOE, BRAKESHOE, BRAKE
-
4104941049-012 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
4105041050-1013 CAM, BRAKECAM, BRAKE
-
4105141051-003 SEAL, BRAKE CAMSEAL, BRAKE CAM
-
4105341053-1063 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
4106041060-1154 GEAR, METER SCREW (23 TEETH)GEAR, METER SCREW (23 TEETH)
-
41060A41060-1155 GEAR, METER SCREW (8 TEETH)GEAR, METER SCREW (8 TEETH)
-
4106441064-1057 RECEIVER, SPEEDOMETERRECEIVER, SPEEDOMETER
-
4106841068-1365 AXLE, REARAXLE, REAR
-
4108541085-1054 INDICATORINDICATOR
-
4203342033-1219 COUPLING, ASSY, REAR HUBCOUPLING, ASSY, REAR HUB
-
4203642036-1146 SLEEVE, REAR HUB, L=33SLEEVE, REAR HUB, L=33
-
4204142041-1473 SPROCKET, HUB (42 TEETH)SPROCKET, HUB (42 TEETH)
-
9200492004-1275 STUD, 10X19STUD, 10X19
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1946 NUT, FLANGED, 16MMNUT, FLANGED, 16MM
-
9202292022-1511 WASHER, 5X9.5X0.8WASHER, 5X9.5X0.8
-
9202792027-1321 COLLAR, REAR AXLE, L=18.5 (LEFT)COLLAR, REAR AXLE, L=18.5 (LEFT)
-
92027A92027-1555 COLLAR, 17.2X25X96COLLAR, 17.2X25X96
-
9203392033-1042 RING, SNAP, 47MMRING, SNAP, 47MM
-
92033A92033-1043 RING, SNAP, 52MMRING, SNAP, 52MM
-
9204992049-1057 SEAL, OIL, BJN30427, C3SEAL, OIL, BJN30427, C3
-
9205292052-006 SEAL, OIL, TWC35527SEAL, OIL, TWC35527
-
9205792057-0002 CHAIN, DRIVE, EK50MV, XX112LCHAIN, DRIVE, EK50MV, XX112L
-
92058A92058-1098 JOINT, CHAIN, DRIVEJOINT, CHAIN, DRIVE
-
9208192081-1816 SPRING, BRAKE CAM LEVER RETURNSPRING, BRAKE CAM LEVER RETURN
-
9208792087-1060 BUSHING, METER GEARBUSHING, METER GEAR
-
9215092150-1797 BOLT, 8X27BOLT, 8X27
-
9216092160-1697 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9220092200-1269 WASHER, 24X32X1.5WASHER, 24X32X1.5
