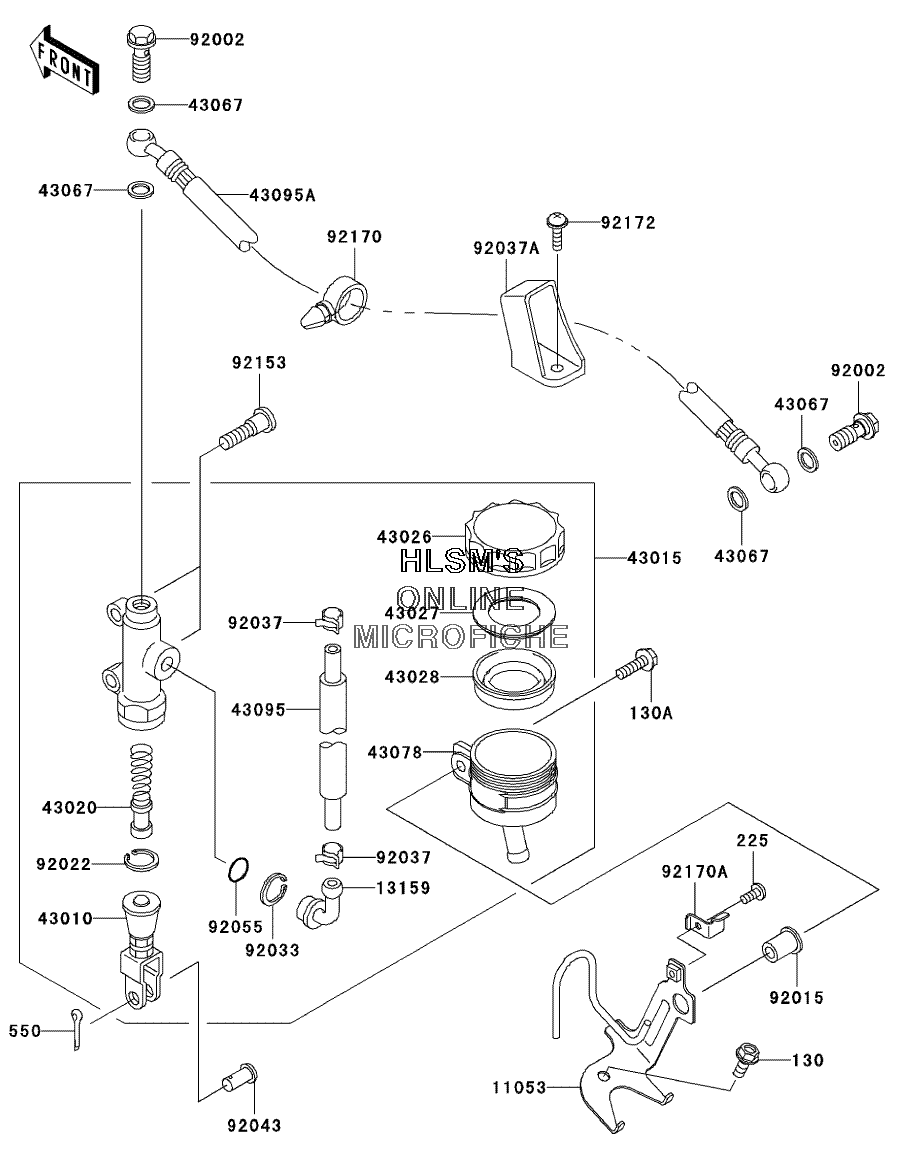

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA ZX-6RR - 2004 года выпуска`
-
№АртикулНазвание
-
130130L0614 BOLT, FLANGEDBOLT, FLANGED
-
130A130V0620 BOLT, FLANGEDBOLT, FLANGED
-
225225F0412 SCREW, PAN, WSP, CROSSCREW, PAN, WSP, CROS
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
1105311053-0292 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
1315913159-1052 CONNECTOR, REAR MASTER CYLINDERCONNECTOR, REAR MASTER CYLINDER
-
4301043010-0002 ROD, ASSY., BRAKEROD, ASSY., BRAKE
-
4301543015-0005 CYLINDER, ASSY., MASTER, REARCYLINDER, ASSY., MASTER, REAR
-
4302043020-1120 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4302643026-1051 CAP, BRAKECAP, BRAKE
-
4302743027-1051 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
4302843028-1057 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4307843078-1082 RESERVOIR, REAR MASTER CYLINDERRESERVOIR, REAR MASTER CYLINDER
-
4309543095-1121 HOSE, BRAKE, REAR MASTER CYLINDERHOSE, BRAKE, REAR MASTER CYLINDER
-
43095A43095-1285 HOSE, BRAKE, REARHOSE, BRAKE, REAR
-
9200292002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
9201592015-1700 NUTNUT
-
9202292022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9203392033-1186 RING, SNAP, 20.5MMRING, SNAP, 20.5MM
-
9203792037-1547 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92037A92037-1896 CLAMP, HOSECLAMP, HOSE
-
9204392043-1303 PIN, 8MMPIN, 8MM
-
9205592055-1251 O-RING, MASTER CYLINDERO-RING, MASTER CYLINDER
-
9215392153-0403 BOLT, SOCKET, 8X32BOLT, SOCKET, 8X32
-
9217092170-1067 CLAMPCLAMP
-
92170A92170-1879 CLAMP, RESERVE TANK CAPCLAMP, RESERVE TANK CAP
-
9217292172-0004 SCREW, 6X14SCREW, 6X14
