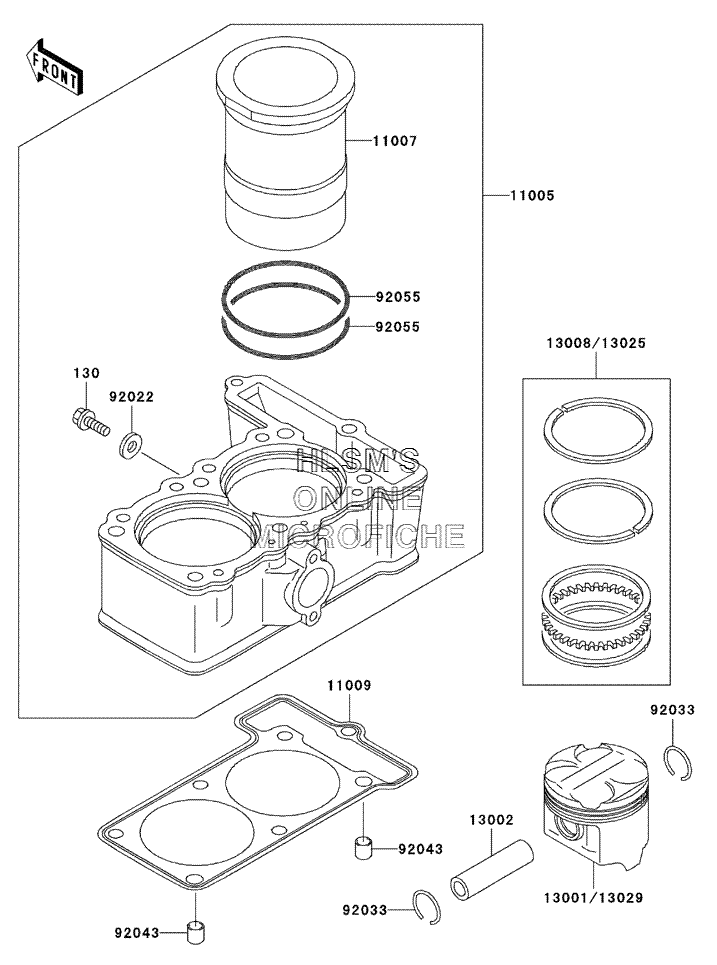

CYLINDER/PISTON(S) для Kawasaki NINJA 250R - 2004 года выпуска`
-
№АртикулНазвание
-
130130C0610 BOLT, FLANGED, 6X10 (BLACK)BOLT, FLANGED, 6X10 (BLACK)
-
1100511005-1623 CYLINDER, ENGINECYLINDER, ENGINE
-
1100711007-1111 LINER, CYLINDERLINER, CYLINDER
-
1100911009-1572 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-1325 PISTON, ENGINE (STD)PISTON, ENGINE (STD)
-
1300213002-1097 PIN, PISTONPIN, PISTON
-
1300813008-1157 RING, SET, PISTON (STD)RING, SET, PISTON (STD)
-
1302513025-1120 RING, SET, PISTON (O/S, 0.50)RING, SET, PISTON (O/S, 0.50)
-
1302913029-1201 PISTON, ENGINE (O/S 0.50)PISTON, ENGINE (O/S 0.50)
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203392033-1161 RING, SNAP, PISTON PINRING, SNAP, PISTON PIN
-
9204392043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9205592055-1338 O-RING, 68.2X2.4O-RING, 68.2X2.4
