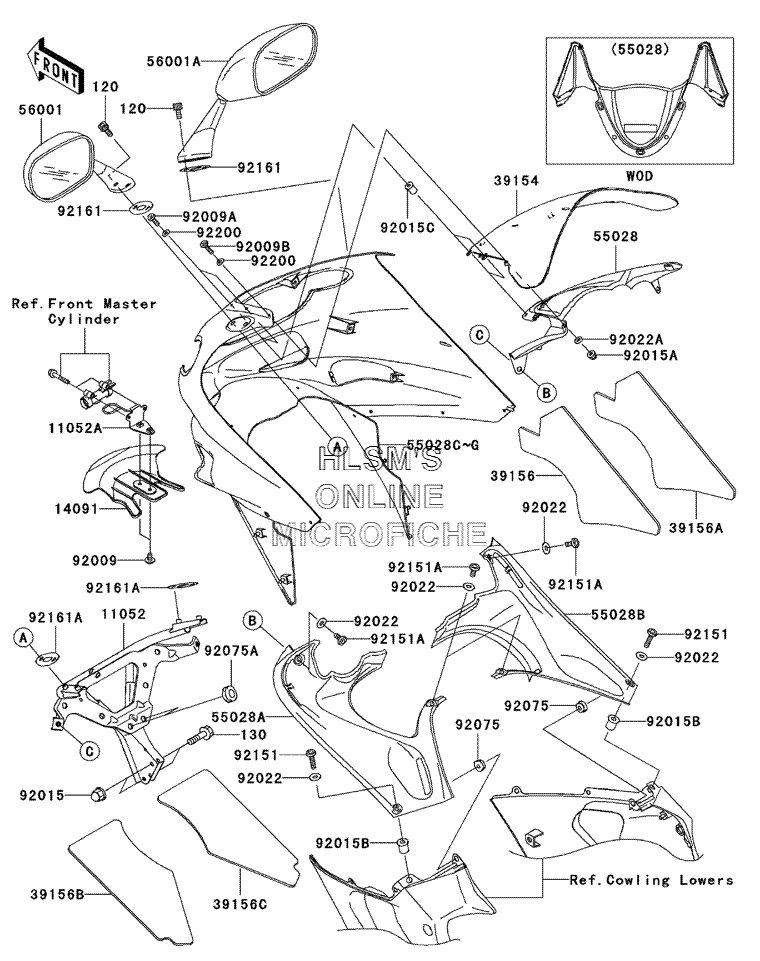

COWLING для Kawasaki ZZR1200 - 2003 года выпуска

  • №
    Артикул
    Название
  • 120
    120P0616 BOLT, SOCKET, 6X16
    BOLT, SOCKET, 6X16
  • 130
    130J0830 BOLT, FLANGED, 8X30
    BOLT, FLANGED, 8X30
  • 11052
    11052-1675 BRACKET, METER AND MIRROR
    BRACKET, METER AND MIRROR
  • 11052A
    11052-1870 BRACKET, UNDER BRACKET COVER
    BRACKET, UNDER BRACKET COVER
  • 14091
    14091-1504 COVER, UNDER BRACKET
    COVER, UNDER BRACKET
  • 39154
    39154-1156 WINDSHIELD
    WINDSHIELD
  • 39156
    39156-1712 PAD, UPPER COWLING (LEFT)
    PAD, UPPER COWLING (LEFT)
  • 39156A
    39156-1713 PAD, UPPER COWLING (RIGHT)
    PAD, UPPER COWLING (RIGHT)
  • 39156B
    39156-1714 PAD, INNER COWLING, REAR (LEFT)
    PAD, INNER COWLING, REAR (LEFT)
  • 39156C
    39156-1715 PAD, INNER COWLING, REAR (RIGHT)
    PAD, INNER COWLING, REAR (RIGHT)
  • 55028
    55028-1444-265 COWLING, INNER, FRONT (M.F.BLACK)
    COWLING, INNER, FRONT (M.F.BLACK)
  • 55028A
    55028-1445-265 COWLING, INNER, REAR (LEFT) (M.F.BLACK)
    COWLING, INNER, REAR (LEFT) (M.F.BLACK)
  • 55028B
    55028-1446-265 COWLING, INNER, REAR (RIGHT) (M.F.BLACK)
    COWLING, INNER, REAR (RIGHT) (M.F.BLACK)
  • 55028D
    55028-1447-218 COWLING, UPPER (P.M.BLACK) [CA, US]
    COWLING, UPPER (P.M.BLACK) [CA, US]
  • 55028E
    55028-1447-235 COWLING, UPPER (C.T.BLUE) (CANADA ONLY)
    COWLING, UPPER (C.T.BLUE) (CANADA ONLY)
  • 55028F
    55028-1447-473 COWLING, UPPER (M.SILVER) (CANADA ONLY)
    COWLING, UPPER (M.SILVER) (CANADA ONLY)
  • 56001
    56001-1543 MIRROR, ASSY (LEFT)
    MIRROR, ASSY (LEFT)
  • 56001A
    56001-1544 MIRROR, ASSY (RIGHT)
    MIRROR, ASSY (RIGHT)
  • 92009
    92009-1661 SCREW, 6X10
    SCREW, 6X10
  • 92009A
    92009-1909 SCREW, 5X16
    SCREW, 5X16
  • 92009B
    92009-1934 SCREW, 5X20
    SCREW, 5X20
  • 92015
    92015-1174 NUT, CAP, 8MM (BLACK)
    NUT, CAP, 8MM (BLACK)
  • 92015A
    92015-1263 NUT, LOCK, FLANGE CAP, 5MM
    NUT, LOCK, FLANGE CAP, 5MM
  • 92015B
    92015-1700 NUT
    NUT
  • 92015C
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92022
    92022-1143 WASHER, 6.5X16X1
    WASHER, 6.5X16X1
  • 92022A
    92022-1521 WASHER, NYLON, 5.3X11.5X1.5
    WASHER, NYLON, 5.3X11.5X1.5
  • 92075
    92075-1011 DAMPER
    DAMPER
  • 92075A
    92075-1067 DAMPER
    DAMPER
  • 92151
    92151-1611 BOLT, SOCKET, 6X25
    BOLT, SOCKET, 6X25
  • 92151A
    92151-1654 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92161
    92161-1234 DAMPER, MIRROR
    DAMPER, MIRROR
  • 92161A
    92161-1298 DAMPER, MIRROR
    DAMPER, MIRROR
  • 92200
    92200-1480 WASHER, NYLON, 5.3X11.5X0.5
    WASHER, NYLON, 5.3X11.5X0.5
