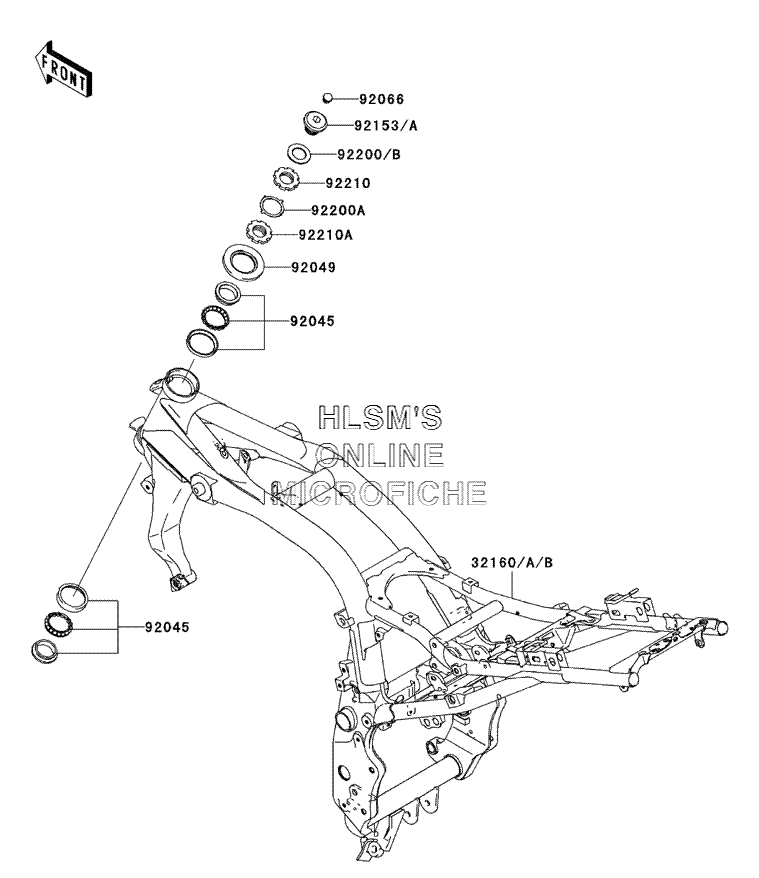

FRAME для Kawasaki Z1000 - 2003 года выпуска
-
№АртикулНазвание
-
3216032160-0023 FRAME, COMP (SERIAL JKAZRCA1 3A003582 AND ABOVE)FRAME, COMP (SERIAL JKAZRCA1 3A003582 AND ABOVE)
-
32160B32160-1813 FRAME, COMP (SERIAL JKAZRCA1 3A003581 AND BELOW)FRAME, COMP (SERIAL JKAZRCA1 3A003581 AND BELOW)
-
9204592045-1384 BEARING, BALL, SF07A17PX1V1BEARING, BALL, SF07A17PX1V1
-
9204992049-1483 SEAL, OIL, MX043N2SEAL, OIL, MX043N2
-
9206692066-1184 PLUGPLUG
-
9215392153-0337 BOLT, 26MMBOLT, 26MM
-
9220092200-0024 WASHER, 27X42X2.3WASHER, 27X42X2.3
-
92200A92200-0036 WASHERWASHER
-
9221092210-0062 NUT, STEERING STEM 35MMNUT, STEERING STEM 35MM
-
92210A92210-0077 NUT, STEERING STEM, 35MMNUT, STEERING STEM, 35MM
