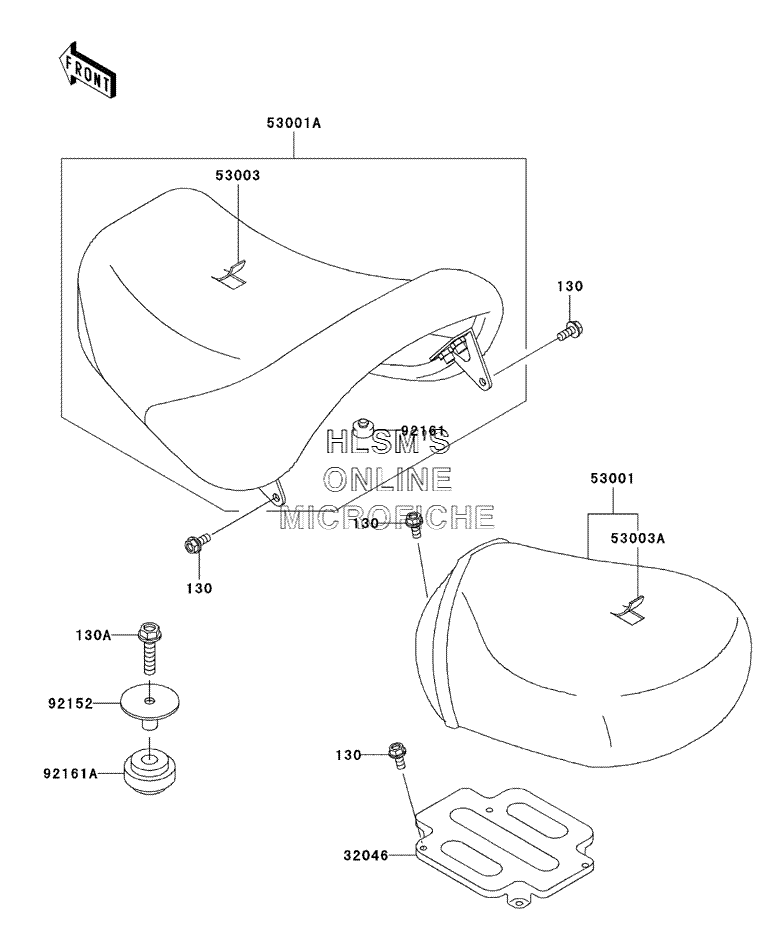

SEAT для Kawasaki Vulcan 1500 Nomad Fi - 2003 года выпуска
-
№АртикулНазвание
-
130130J0614 BOLT, FLANGED, 6X14 (BLACK)BOLT, FLANGED, 6X14 (BLACK)
-
130A130J0835 BOLT, FLANGED, 8X35 (BLACK)BOLT, FLANGED, 8X35 (BLACK)
-
3204632046-1458 BRACKET, SEAT, REARBRACKET, SEAT, REAR
-
5300153001-1906-MA SEAT, ASSY, REAR, W/BAND (BLACK)SEAT, ASSY, REAR, W/BAND (BLACK)
-
53001A53001-1947-MA SEAT, ASSY, FRONT (BLACK)SEAT, ASSY, FRONT (BLACK)
-
5300353003-1410-MA LEATHER, FRONT SEAT (BLACK)LEATHER, FRONT SEAT (BLACK)
-
53003A53003-1438-MA LEATHER, REAR SEAT (BLACK)LEATHER, REAR SEAT (BLACK)
-
9215292152-1100 COLLARCOLLAR
-
9216192161-1065 DAMPER, SEATDAMPER, SEAT
-
92161A92161-1157 DAMPERDAMPER
