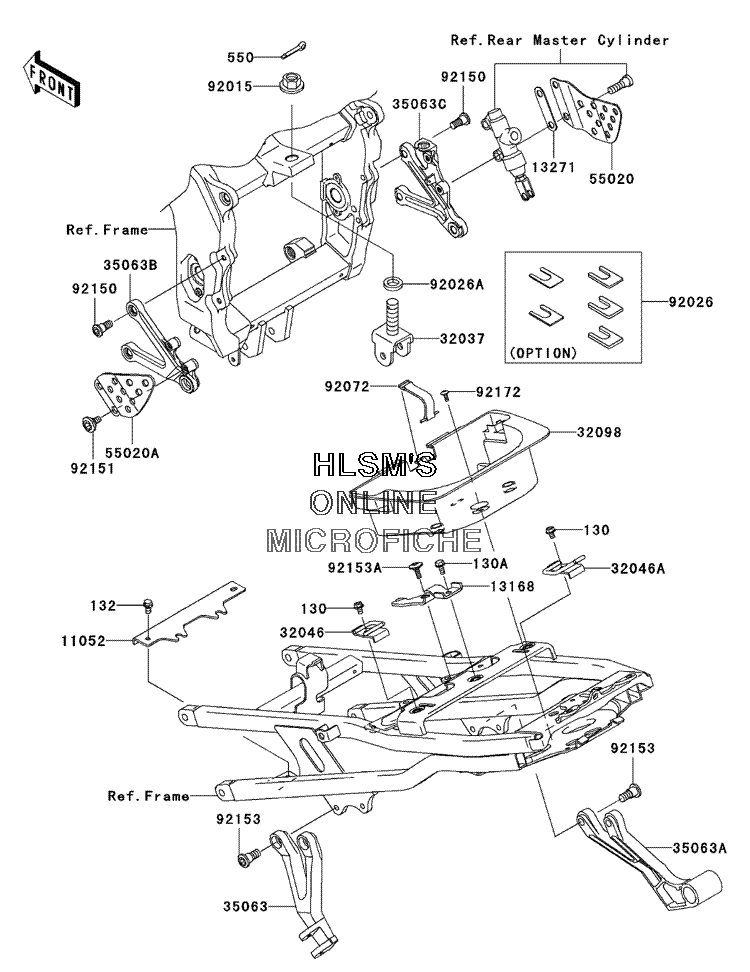

FRAME FITTINGS для Kawasaki NINJA ZX-6RR - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0612 BOLT, FLANGED
    BOLT, FLANGED
  • 130A
    130J0616 BOLT, FLANGED, 6X16 (BLACK)
    BOLT, FLANGED, 6X16 (BLACK)
  • 132
    132J0610 BOLT, FLANGED, SMALL, 6X10
    BOLT, FLANGED, SMALL, 6X10
  • 550
    550D4025 PIN, COTTER, 4.0X25
    PIN, COTTER, 4.0X25
  • 11052
    11052-1951 BRACKET, BATTERY CASE
    BRACKET, BATTERY CASE
  • 13168
    13168-1765 LEVER, FRONT SEAT
    LEVER, FRONT SEAT
  • 13271
    13271-0104 PLATE, FOOT GUARD
    PLATE, FOOT GUARD
  • 32037
    32037-1887 BRACKET, SHOCKABSORBER
    BRACKET, SHOCKABSORBER
  • 32046
    32046-1522 BRACKET, SEAT (LEFT)
    BRACKET, SEAT (LEFT)
  • 32046A
    32046-1523 BRACKET, SEAT (RIGHT)
    BRACKET, SEAT (RIGHT)
  • 32098
    32098-1144 CASE, TOOL
    CASE, TOOL
  • 35063
    35063-0031-458 STAY, REAR STEP (LEFT) (P.SILVER)
    STAY, REAR STEP (LEFT) (P.SILVER)
  • 35063A
    35063-0032-458 STAY, REAR STEP (RIGHT) (P.SILVER)
    STAY, REAR STEP (RIGHT) (P.SILVER)
  • 35063B
    35063-0037-458 STAY, FRONT STEP (LEFT) (P.SILVER)
    STAY, FRONT STEP (LEFT) (P.SILVER)
  • 35063C
    35063-1257-458 STAY, FRONT STEP (RIGHT) (P.SILVER)
    STAY, FRONT STEP (RIGHT) (P.SILVER)
  • 55020
    55020-0025 GUARD, FRONT STEP STAY (RIGHT)
    GUARD, FRONT STEP STAY (RIGHT)
  • 55020A
    55020-1627 GUARD, FRONT STEP STAY (LEFT)
    GUARD, FRONT STEP STAY (LEFT)
  • 92015
    92015-1881 NUT, FLANGED, 16MM
    NUT, FLANGED, 16MM
  • 92026
    92026-1586 SPACER, SET (OPT)
    SPACER, SET (OPT)
  • 92026A
    92026-1594 SPACER, 16.5X26X6
    SPACER, 16.5X26X6
  • 92072
    92072-1349 BAND, TOOL
    BAND, TOOL
  • 92150
    92150-1839 BOLT, SOCKET, 8X20
    BOLT, SOCKET, 8X20
  • 92151
    92151-1334 BOLT, 6MM
    BOLT, 6MM
  • 92153
    92153-0412 BOLT, SOCKET, 8X20
    BOLT, SOCKET, 8X20
  • 92153A
    92153-1262 BOLT, SOCKET, 6X18
    BOLT, SOCKET, 6X18
  • 92172
    92172-0008 SCREW, 5X12
    SCREW, 5X12
