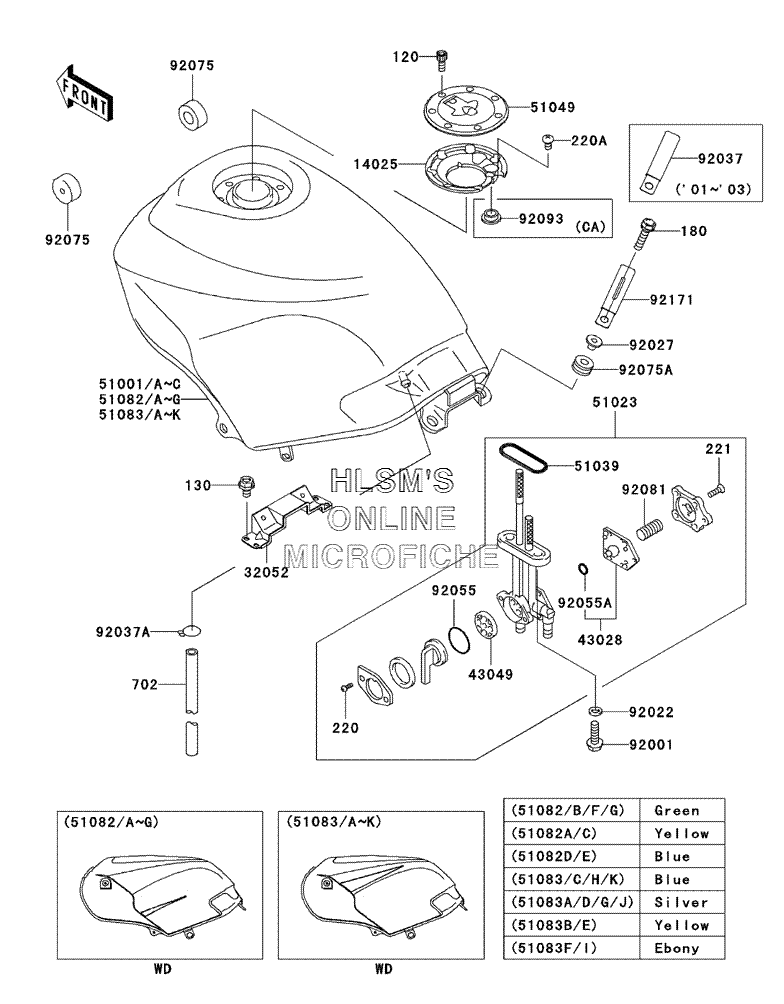

FUEL TANK для Kawasaki NINJA 250R - 2003 года выпуска

  • №
    Артикул
    Название
  • 14025
    14025-1913 COVER, TANK CAP
    COVER, TANK CAP
  • 32052
    32052-1254 BRACKET, TANK, REAR
    BRACKET, TANK, REAR
  • 43028
    43028-1068 DIAPHRAGM, TAP
    DIAPHRAGM, TAP
  • 43049
    43049-1103 PACKING
    PACKING
  • 51023
    51023-1393 TAP, ASSY, FUEL
    TAP, ASSY, FUEL
  • 51039
    51039-003 RING, TAP FLANGED
    RING, TAP FLANGED
  • 51049
    51049-1131 CAP, TANK, FUEL
    CAP, TANK, FUEL
  • 51082A
    51082-5030-1B TANK, COMP, FUEL (P.C.YELLOW) (US ONLY)
    TANK, COMP, FUEL (P.C.YELLOW) (US ONLY)
  • 51082C
    51082-5032-1B TANK, COMP, FUEL (P.C.YELLOW) (CALIF. ONLY)
    TANK, COMP, FUEL (P.C.YELLOW) (CALIF. ONLY)
  • 51082D
    51082-5314-GW TANK, COMP, FUEL (M.S.BLUE) (US ONLY)
    TANK, COMP, FUEL (M.S.BLUE) (US ONLY)
  • 51082E
    51082-5315-GW TANK, COMP, FUEL (M.S.BLUE) (CALIF. ONLY)
    TANK, COMP, FUEL (M.S.BLUE) (CALIF. ONLY)
  • 51082F
    51082-5316-7F TANK, COMP, FUEL (L.GREEN) (US ONLY)
    TANK, COMP, FUEL (L.GREEN) (US ONLY)
  • 51082G
    51082-5317-7F TANK, COMP, FUEL (L.GREEN) (CALIF. ONLY)
    TANK, COMP, FUEL (L.GREEN) (CALIF. ONLY)
  • 120
    120S0512 BOLT, SOCKET
    BOLT, SOCKET
  • 130
    130H0610 BOLT, FLANGED, 6X10
    BOLT, FLANGED, 6X10
  • 180
    180D0625 BOLT, UPSET, WS, 6X25
    BOLT, UPSET, WS, 6X25
  • 220
    220C0308 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220A
    220F0508 SCREW, PAN, CROSS
    SCREW, PAN, CROSS
  • 221
    221B0414 SCREW, CSK, CROS, 4X14
    SCREW, CSK, CROS, 4X14
  • 702
    702A071000 TUBE, RUBBER, 7X10X1000
    TUBE, RUBBER, 7X10X1000
  • 92001
    92001-1091 BOLT, 6X20
    BOLT, 6X20
  • 92022
    92022-183 WASHER, 6.2X11X1.5
    WASHER, 6.2X11X1.5
  • 92027
    92027-251 COLLAR, L=13.1
    COLLAR, L=13.1
  • 92037
    92037-1069 CLAMP, L=60
    CLAMP, L=60
  • 92037A
    92037-1712 CLAMP
    CLAMP
  • 92055
    92055-1085 O-RING, TAP LEVER
    O-RING, TAP LEVER
  • 92055A
    92055-1664 O-RING
    O-RING
  • 92075
    92075-1115 DAMPER, FUEL TANK, FRONT
    DAMPER, FUEL TANK, FRONT
  • 92075A
    92075-1690 DAMPER
    DAMPER
  • 92081
    92081-1240 SPRING, TAP DIAPHRAGM
    SPRING, TAP DIAPHRAGM
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)
    SEAL, FUEL TANK CAP (CALIF. ONLY)
