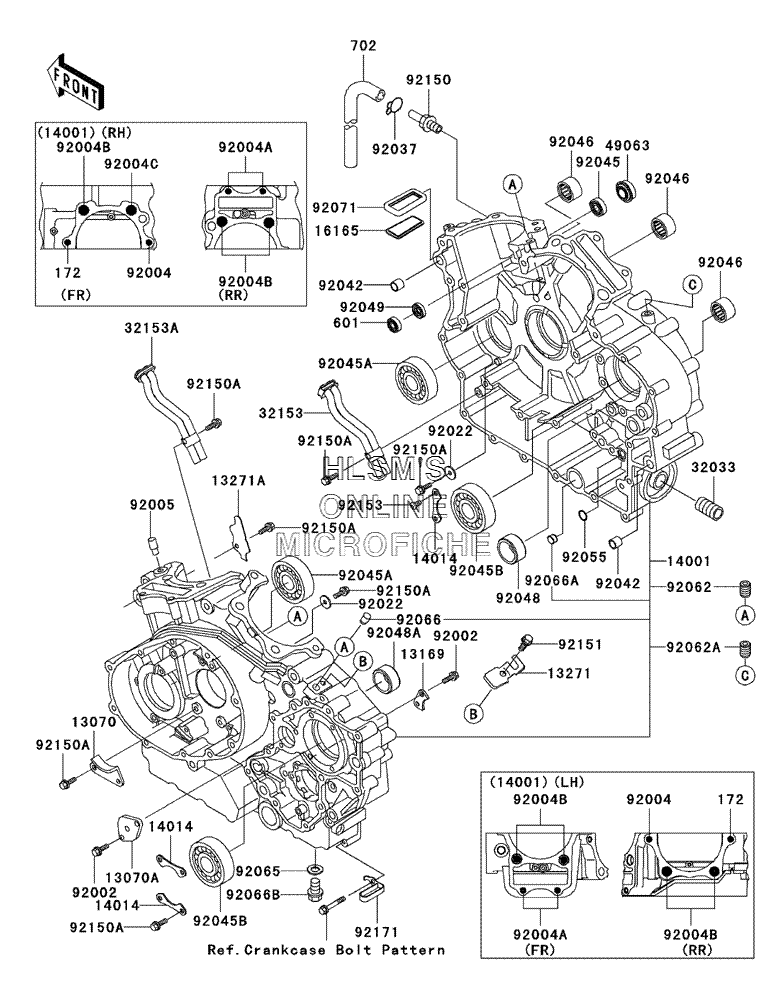

CRANKCASE для Kawasaki Vulcan 1500 Drifter - 2002 года выпуска`
-
№АртикулНазвание
-
1307013070-1168 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
13070A13070-1372 GUIDEGUIDE
-
1316913169-014 PLATE, GEAR CHANGE DRUMPLATE, GEAR CHANGE DRUM
-
1327113271-1448 PLATEPLATE
-
13271A13271-1727 PLATEPLATE
-
1400114001-5394 SET, CRANKCASESET, CRANKCASE
-
1401414014-1084 PLATE, POSITIONPLATE, POSITION
-
1616516165-1058 SEPARATORSEPARATOR
-
3203332033-1535 PIPE, OIL FILTERPIPE, OIL FILTER
-
3215332153-1262 PIPE, RIGHT CRANKCASEPIPE, RIGHT CRANKCASE
-
32153A32153-1263 PIPE, LEFT CRANKCASEPIPE, LEFT CRANKCASE
-
4906349063-1057 SEAL, MECHANICALSEAL, MECHANICAL
-
9200292002-1439 BOLT, 6X16BOLT, 6X16
-
9200492004-0011 STUD, 8X25STUD, 8X25
-
92004A92004-1174 STUD, 8X231STUD, 8X231
-
92004B92004-1225 STUD, 12X250STUD, 12X250
-
92004C92004-1240 STUD, 12X250STUD, 12X250
-
9200592005-1155 FITTINGFITTING
-
9202292022-1517 WASHER, 6X19.5X2WASHER, 6X19.5X2
-
9203792037-1835 CLAMPCLAMP
-
9204292042-028 PIN, DOWEL, 11X14X12.5PIN, DOWEL, 11X14X12.5
-
9204592045-1151 BEARING, BALL, 6001JRXLLU/5KBEARING, BALL, 6001JRXLLU/5K
-
92045A92045-1189 BEARING, BALL, 63/28BEARING, BALL, 63/28
-
92045B92045-1190 BEARING, BALL, 6306SH2BEARING, BALL, 6306SH2
-
9204692046-1292 BEARING, NEEDLEBEARING, NEEDLE
-
9204892048-1103 RACERACE
-
92048A92048-1113 RACERACE
-
9204992049-1228 SEAL, OIL, AC037AE0SEAL, OIL, AC037AE0
-
9205592055-1373 O-RING, 13.2X2.4O-RING, 13.2X2.4
-
9206292062-1078 NOZZLE, 6X8 (GREEN)NOZZLE, 6X8 (GREEN)
-
92062A92062-1089 NOZZLENOZZLE
-
9206592065-097 GASKET, 12X22X2GASKET, 12X22X2
-
9206692066-1012 PLUG, OIL LINE, 7.2X8PLUG, OIL LINE, 7.2X8
-
92066A92066-1110 PLUGPLUG
-
92066B92066-1174 PLUG, OIL DRAIN, 12X15PLUG, OIL DRAIN, 12X15
-
9207192071-1269 GROMMET, SEPARATORGROMMET, SEPARATOR
-
9215092150-1161 BOLTBOLT
-
92150A92150-1868 BOLT, 6X12BOLT, 6X12
-
9215192151-1416 BOLT, 6X8BOLT, 6X8
-
9215392153-0344 BOLT, 6X12BOLT, 6X12
-
172172G0825 BOLT, STUD, 8X25BOLT, STUD, 8X25
-
601601A6001 BEARING, BALLBEARING, BALL
-
702702A04330 TUBE, RUBBER, 4X330TUBE, RUBBER, 4X330
-
9217192171-1273 CLAMPCLAMP
