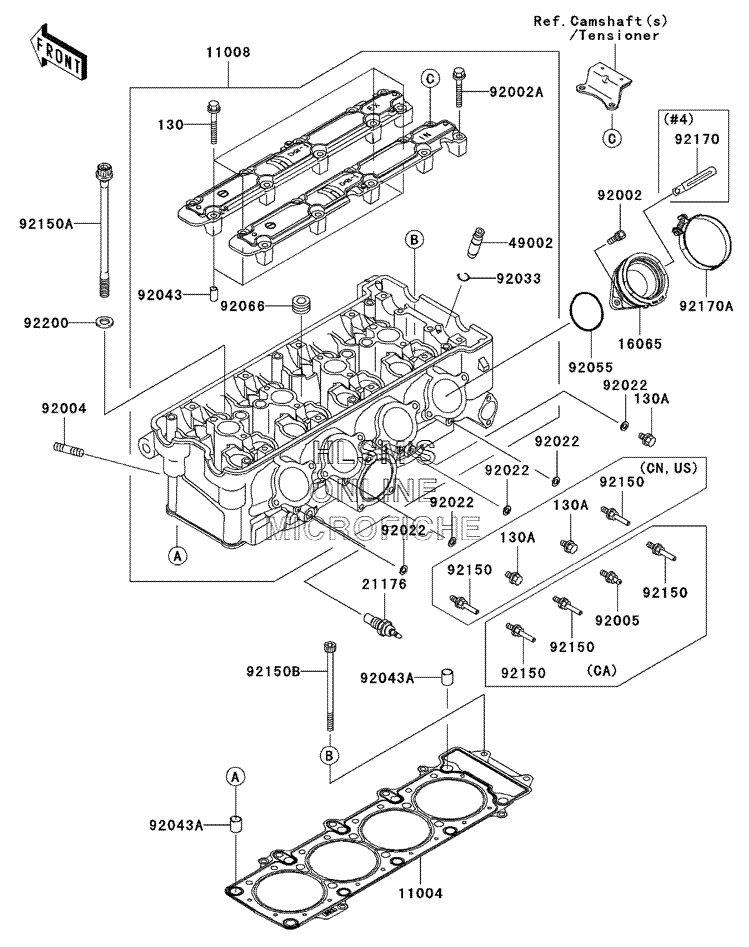

CYLINDER HEAD для Kawasaki NINJA ZX-9R - 2002 года выпуска`
-
№АртикулНазвание
-
130130P0645 BOLT, FLANGEDBOLT, FLANGED
-
130A130Y0610 BOLT, FLANGED (CALIF. ONLY)BOLT, FLANGED (CALIF. ONLY)
-
130A130Y0610 BOLT, FLANGED (EXCEPT CALIF.)BOLT, FLANGED (EXCEPT CALIF.)
-
1100411004-1345 GASKET, HEADGASKET, HEAD
-
1100811008-1420 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
1606516065-1381 HOLDER, CARBURETORHOLDER, CARBURETOR
-
2117621176-1075 SENSORSENSOR
-
4900249002-1116 GUIDE, VALVEGUIDE, VALVE
-
9200292002-1143 BOLT, 6X16BOLT, 6X16
-
92002A92002-1756 BOLT, 6X40BOLT, 6X40
-
9200492004-1249 STUD, 8X22STUD, 8X22
-
9200592005-1221 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203392033-1247 RING, SNAPRING, SNAP
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-4009 PIN, 10.1X12X14PIN, 10.1X12X14
-
9205592055-1401 O-RING, 43.7X1.9O-RING, 43.7X1.9
-
9206692066-0002 PLUG, PT1/2X12.5PLUG, PT1/2X12.5
-
9215092150-1161 BOLT (EXCEPT CALIF.)BOLT (EXCEPT CALIF.)
-
9215092150-1161 BOLT (CALIF. ONLY)BOLT (CALIF. ONLY)
-
92150A92150-1368 BOLT, 10X165BOLT, 10X165
-
92150B92150-1755 BOLT, SOCKET, 6X110BOLT, SOCKET, 6X110
-
9217092170-1514 CLAMPCLAMP
-
92170A92170-1882 CLAMPCLAMP
-
9220092200-1042 WASHER, 10.5X19X2.3WASHER, 10.5X19X2.3
