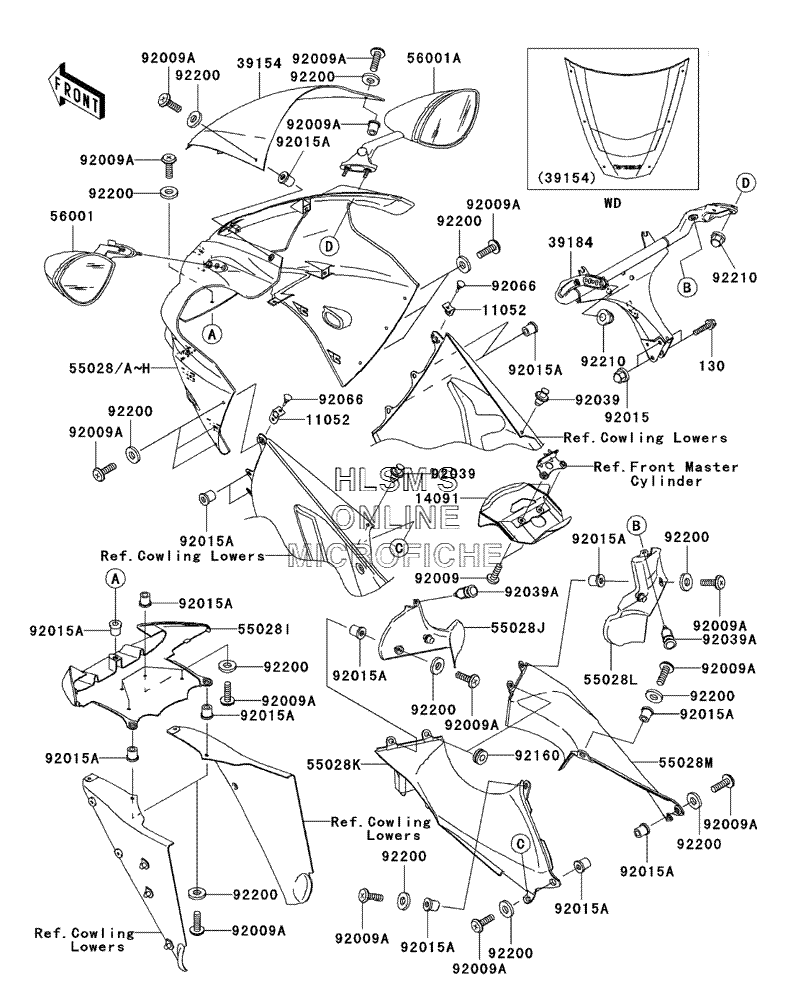

COWLING для Kawasaki NINJA ZX-12R - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0840 BOLT, FLANGED, 8X40
    BOLT, FLANGED, 8X40
  • 11052
    11052-1657 BRACKET
    BRACKET
  • 14091
    14091-1211 COVER, UNDER BRACKET
    COVER, UNDER BRACKET
  • 39154
    39154-5018 WINDSHIELD
    WINDSHIELD
  • 39184
    39184-1089 BRACKET, ASSY, MIRROR AND METER
    BRACKET, ASSY, MIRROR AND METER
  • 55028A
    55028-1425-218 COWLING, UPPER (P.M.BLACK)
    COWLING, UPPER (P.M.BLACK)
  • 55028B
    55028-1425-234 COWLING, UPPER (P.RED)
    COWLING, UPPER (P.RED)
  • 55028C
    55028-1425-235 COWLING, UPPER (C.T.BLUE)
    COWLING, UPPER (C.T.BLUE)
  • 55028I
    55028-1426-263 COWLING, DUCT (M.F.C.GRAY)
    COWLING, DUCT (M.F.C.GRAY)
  • 55028J
    55028-1434-263 COWLING, INNER FRONT (LEFT) (M.F.C.GRAY)
    COWLING, INNER FRONT (LEFT) (M.F.C.GRAY)
  • 55028K
    55028-1435-263 COWLING, INNER REAR (LEFT) (M.F.C.GRAY)
    COWLING, INNER REAR (LEFT) (M.F.C.GRAY)
  • 55028L
    55028-1436-263 COWLING, INNER FRONT (RIGHT) (M.F.C.GRAY)
    COWLING, INNER FRONT (RIGHT) (M.F.C.GRAY)
  • 55028M
    55028-1437-263 COWLING, INNER REAR (RIGHT) (M.F.C.GRAY)
    COWLING, INNER REAR (RIGHT) (M.F.C.GRAY)
  • 56001
    56001-1574 MIRROR, ASSY (LEFT)
    MIRROR, ASSY (LEFT)
  • 56001A
    56001-1575 MIRROR, ASSY (RIGHT)
    MIRROR, ASSY (RIGHT)
  • 92009
    92009-1661 SCREW, 6X10
    SCREW, 6X10
  • 92009A
    92009-1909 SCREW, 5X16
    SCREW, 5X16
  • 92015
    92015-1174 NUT, CAP, 8MM (BLACK)
    NUT, CAP, 8MM (BLACK)
  • 92015A
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92039
    92039-1227 RIVET
    RIVET
  • 92039A
    92039-1286 RIVET
    RIVET
  • 92066
    92066-1576 PLUG
    PLUG
  • 92160
    92160-1278 DAMPER
    DAMPER
  • 92200
    92200-1480 WASHER, NYLON, 5.3X11.5X0.5
    WASHER, NYLON, 5.3X11.5X0.5
  • 92210
    92210-0003 NUT, CAP, 6MM
    NUT, CAP, 6MM
