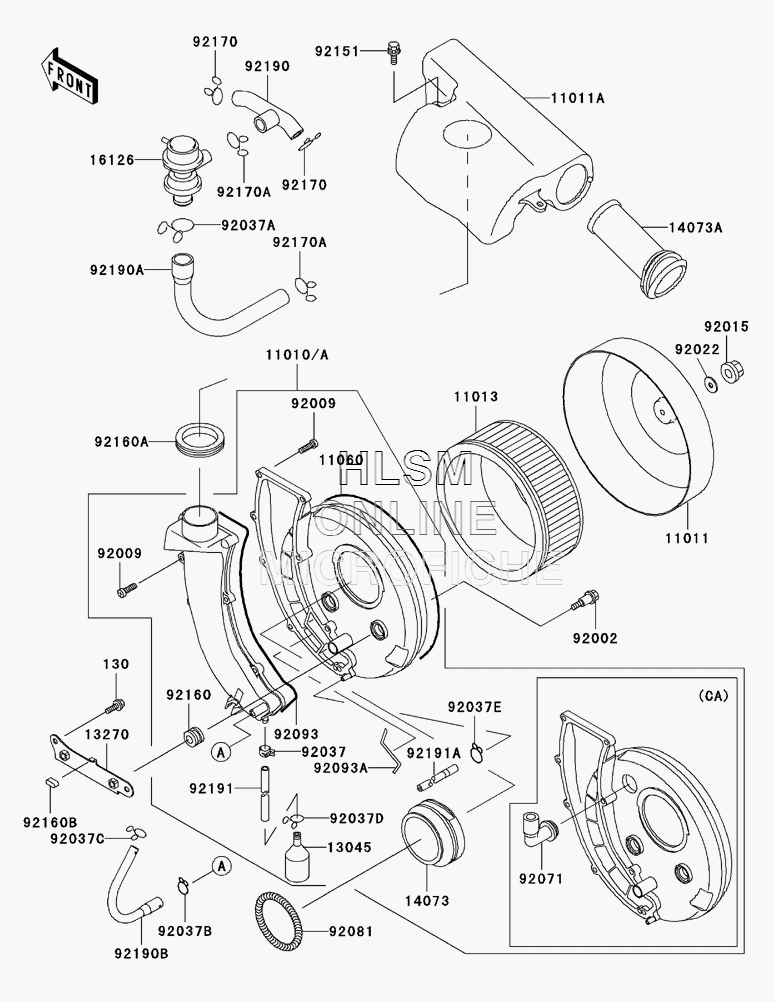

AIR CLEANER для Kawasaki Vulcan 800 - 2001 года выпуска
-
№АртикулНазвание
-
1101011010-1670 FILTER, ASSY., AIR (US ONLY)FILTER, ASSY., AIR (US ONLY)
-
11010A11010-1671 FILTER, ASSY., AIR (CALIF. ONLY)FILTER, ASSY., AIR (CALIF. ONLY)
-
1101111011-1453 CASE, AIR FILTER, COVERCASE, AIR FILTER, COVER
-
11011A11011-1454 CASE, AIR FILTER, CHAMBERCASE, AIR FILTER, CHAMBER
-
1101311013-1243 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1106011060-1721 GASKET, AIR FILTERGASKET, AIR FILTER
-
1304513045-1057 RECEIVER, OILRECEIVER, OIL
-
1327013270-1388 PLATE, AIR FILTER CASEPLATE, AIR FILTER CASE
-
1407314073-1622 DUCT, AIR FILTERDUCT, AIR FILTER
-
14073A14073-1623 DUCT, AIR FILTER CHAMBERDUCT, AIR FILTER CHAMBER
-
1612616126-1289 VALVE, AIR SWITCHVALVE, AIR SWITCH
-
9200292002-1595 BOLTBOLT
-
9200992009-1399 SCREW, TAPPING, 5X20SCREW, TAPPING, 5X20
-
9201592015-1385 NUT, CAP, 6MMNUT, CAP, 6MM
-
9202292022-193 WASHER, 6.5X20X1.6 (WHITE)WASHER, 6.5X20X1.6 (WHITE)
-
9203792037-010 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1076 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1271 CLAMP, FUEL TUBECLAMP, FUEL TUBE
-
92037C92037-147 CLAMP, TUBECLAMP, TUBE
-
92037D92037-1712 CLAMPCLAMP
-
92037E92037-3025 CLAMP, TUBECLAMP, TUBE
-
9207192071-1114 GROMMET, AIR FILTER (CALIF. ONLY)GROMMET, AIR FILTER (CALIF. ONLY)
-
9208192081-1638 SPRING, DUCTSPRING, DUCT
-
9209392093-1501 SEAL, AIR FILTERSEAL, AIR FILTER
-
92093A92093-1502 SEAL, AIR FILTERSEAL, AIR FILTER
-
9215192151-1579 BOLTBOLT
-
9216092160-1594 DAMPERDAMPER
-
92160A92160-1600 DAMPERDAMPER
-
92160B92160-1605 DAMPER, PLATEDAMPER, PLATE
-
9217092170-1017 CLAMPCLAMP
-
92170A92170-1445 CLAMP, TUBECLAMP, TUBE
-
9219092190-1600 TUBE, AIR SWITCH, HEADTUBE, AIR SWITCH, HEAD
-
92190A92190-1601 TUBE, AIR SWITCH, FILTER CASETUBE, AIR SWITCH, FILTER CASE
-
92190B92190-1602 TUBE, BREATHERTUBE, BREATHER
-
9219192191-1111 TUBE, 6X9X345TUBE, 6X9X345
-
130130J0616 BOLT, FLANGED, 6X16 (BLACK)BOLT, FLANGED, 6X16 (BLACK)
-
92191A92191-1112 TUBETUBE
