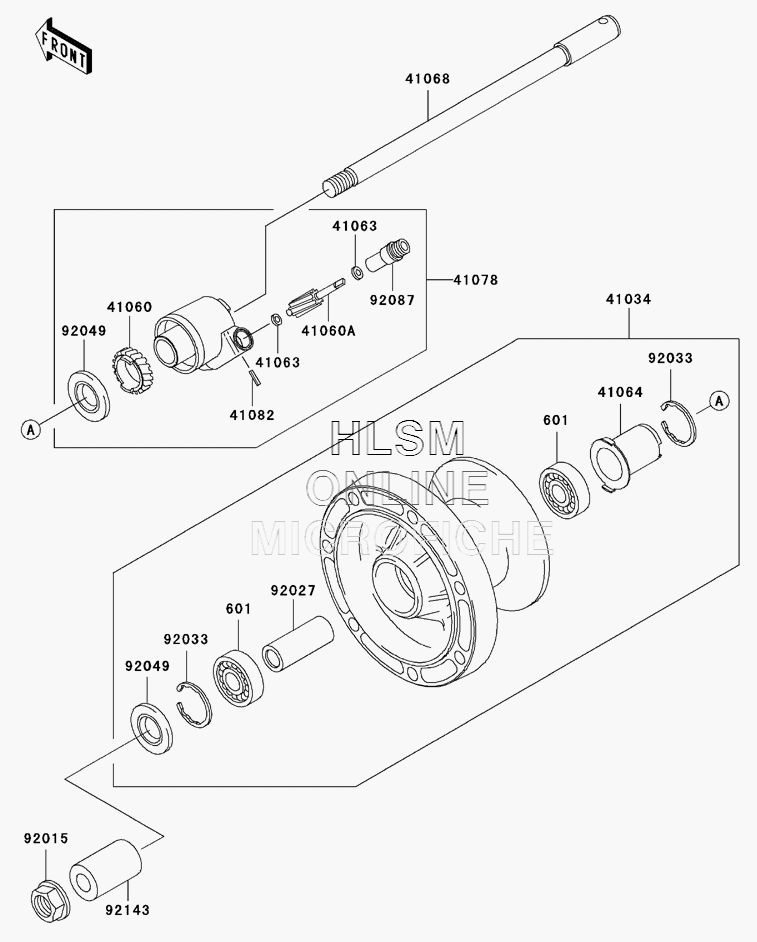

WHEEL - FRONT для Kawasaki Vulcan 800 Drifter - 2001 года выпуска

  • №
    Артикул
    Название
  • 601
    601B6004UU BEARING, BALL, #6004UUC3
    BEARING, BALL, #6004UUC3
  • 41034
    41034-1293 DRUM, ASSY., FRONT BRAKE
    DRUM, ASSY., FRONT BRAKE
  • 41060
    41060-1160 GEAR, METER SCREW (25 TEETH)
    GEAR, METER SCREW (25 TEETH)
  • 41060A
    41060-1161 GEAR, METER SCREW, 9T
    GEAR, METER SCREW, 9T
  • 41063
    41063-001 WASHER, 5.1X9X0.4
    WASHER, 5.1X9X0.4
  • 41064
    41064-1059 RECEIVER, SPEEDOMETER
    RECEIVER, SPEEDOMETER
  • 41068
    41068-1378 AXLE, FRONT
    AXLE, FRONT
  • 41078
    41078-1106 CASE, ASSY., METER GEAR
    CASE, ASSY., METER GEAR
  • 41082
    41082-001 PIN, SPRING
    PIN, SPRING
  • 92015
    92015-1993 NUT, FLANGED, 18MM
    NUT, FLANGED, 18MM
  • 92027
    92027-1752 COLLAR, 20.2X28X70
    COLLAR, 20.2X28X70
  • 92033
    92033-1041 RING, SNAP, 42MM
    RING, SNAP, 42MM
  • 92049
    92049-1057 SEAL, OIL, BJN30427, C3
    SEAL, OIL, BJN30427, C3
  • 92087
    92087-1056 BUSHING, METER GEAR
    BUSHING, METER GEAR
  • 92143
    92143-1837 COLLAR, FRONT AXLE (LEFT) L=48.5
    COLLAR, FRONT AXLE (LEFT) L=48.5
