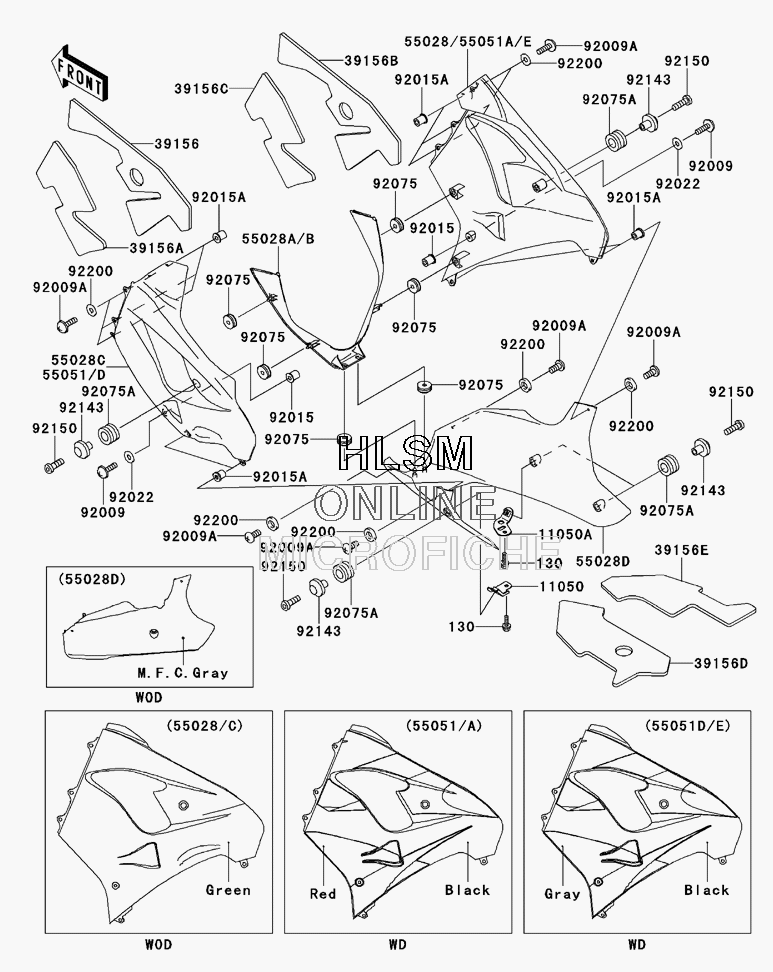

COWLING - LOWERS для Kawasaki NINJA ZX-9R - 2001 года выпуска

  • №
    Артикул
    Название
  • 11050
    11050-1456 BRACKET, LOWER COWLING (LEFT)
    BRACKET, LOWER COWLING (LEFT)
  • 11050A
    11050-1778 BRACKET, LOWER COWLING (RIGHT)
    BRACKET, LOWER COWLING (RIGHT)
  • 39156
    39156-1603 PAD, SIDE COWLING (LEFT/UPPER)
    PAD, SIDE COWLING (LEFT/UPPER)
  • 39156A
    39156-1604 PAD, SIDE COWLING (LEFT/LOWER)
    PAD, SIDE COWLING (LEFT/LOWER)
  • 39156B
    39156-1605 PAD, SIDE COWLING (RIGHT/UPPER)
    PAD, SIDE COWLING (RIGHT/UPPER)
  • 39156C
    39156-1606 PAD, SIDE COWLING (RIGHT/LOWER)
    PAD, SIDE COWLING (RIGHT/LOWER)
  • 39156D
    39156-1607 PAD, LOWER COWLING (LEFT)
    PAD, LOWER COWLING (LEFT)
  • 39156E
    39156-1608 PAD, LOWER COWLING (RIGHT)
    PAD, LOWER COWLING (RIGHT)
  • 55028
    55028-1363-217 COWLING, FRONT (C.GOLD)
    COWLING, FRONT (C.GOLD)
  • 55028A
    55028-1363-32 COWLING, FRONT (P.R.BLUE) (CANADA ONLY)
    COWLING, FRONT (P.R.BLUE) (CANADA ONLY)
  • 55028B
    55028-1363-7F COWLING, FRONT (L.GREEN)
    COWLING, FRONT (L.GREEN)
  • 55028C
    55028-1393-B5 COWLING, LOWER (BLACK)
    COWLING, LOWER (BLACK)
  • 55051
    55051-5120-7F COWLING, ASSY, SIDE (LEFT) (L.GREEN)
    COWLING, ASSY, SIDE (LEFT) (L.GREEN)
  • 55051A
    55051-5121-7F COWLING, ASSY, SIDE (RIGHT) (L.GREEN)
    COWLING, ASSY, SIDE (RIGHT) (L.GREEN)
  • 55051B
    55051-5124-32 COWLING, ASSY, SIDE (LEFT) (P.R.BLUE) (CANADA ONLY)
    COWLING, ASSY, SIDE (LEFT) (P.R.BLUE) (CANADA ONLY)
  • 55051C
    55051-5125-32 COWLING, ASSY, SIDE (RIGHT) (P.R.BLUE) (CANADA ONLY)
    COWLING, ASSY, SIDE (RIGHT) (P.R.BLUE) (CANADA ONLY)
  • 55051F
    55051-5132-217 COWLING, ASSY, SIDE (LEFT) (C.GOLD)
    COWLING, ASSY, SIDE (LEFT) (C.GOLD)
  • 55051G
    55051-5133-217 COWLING, ASSY, SIDE (RIGHT) (C.GOLD)
    COWLING, ASSY, SIDE (RIGHT) (C.GOLD)
  • 92009
    92009-1664 SCREW, 6X22
    SCREW, 6X22
  • 92009A
    92009-1909 SCREW, 5X16
    SCREW, 5X16
  • 92015
    92015-1700 NUT
    NUT
  • 92015A
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92022
    92022-1143 WASHER, 6.5X16X1
    WASHER, 6.5X16X1
  • 92075
    92075-1067 DAMPER
    DAMPER
  • 92075A
    92075-1634 DAMPER
    DAMPER
  • 92143
    92143-1226 COLLAR (BLACK)
    COLLAR (BLACK)
  • 92150
    92150-1553 BOLT, SOCKET, 6X18
    BOLT, SOCKET, 6X18
  • 130
    130J0612 BOLT, FLANGED
    BOLT, FLANGED
  • 92200
    92200-1480 WASHER, NYLON, 5.3X11.5X0.5
    WASHER, NYLON, 5.3X11.5X0.5
