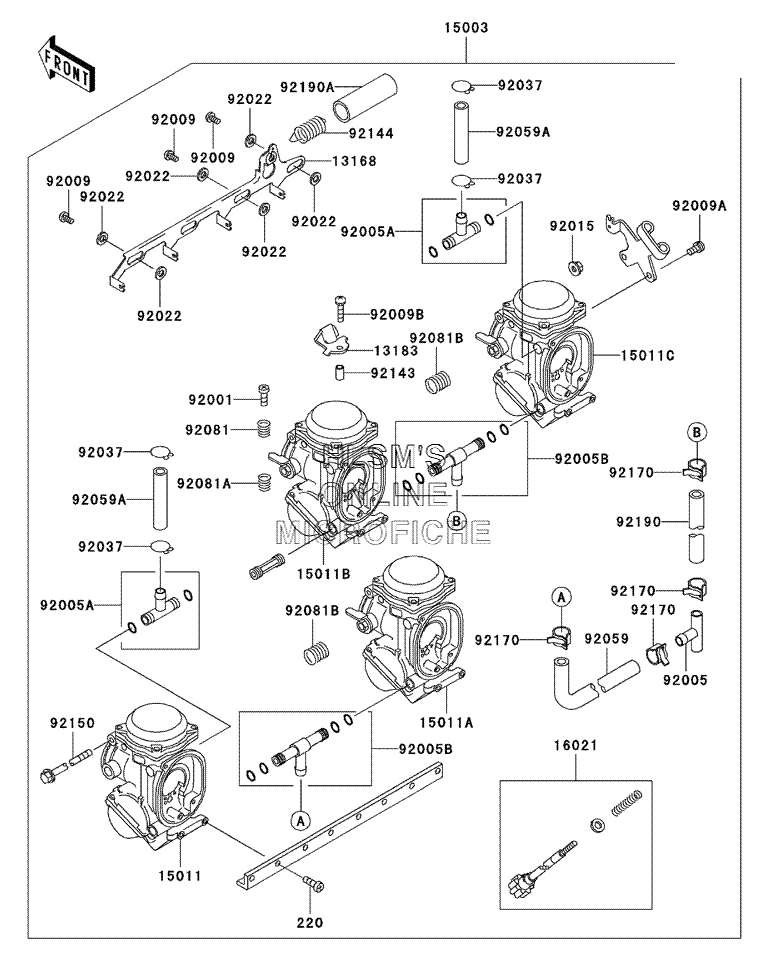

CARBURETOR для Kawasaki NINJA ZX-7R - 2001 года выпуска

  • №
    Артикул
    Название
  • 220
    220D0514 SCREW, PAN, CROS, 5X14
    SCREW, PAN, CROS, 5X14
  • 13168
    13168-1593 LEVER, STARTER
    LEVER, STARTER
  • 13183
    13183-1592 PLATE, STARTER CABLE
    PLATE, STARTER CABLE
  • 15003
    15003-1268 CARBURETOR ASSY
    CARBURETOR ASSY
  • 15011
    15011-1231 CARBURETOR (LEFT/OUTSIDE)
    CARBURETOR (LEFT/OUTSIDE)
  • 15011A
    15011-1232 CARBURETOR (LEFT/INSIDE)
    CARBURETOR (LEFT/INSIDE)
  • 15011B
    15011-1233 CARBURETOR (RIGHT/INSIDE)
    CARBURETOR (RIGHT/INSIDE)
  • 15011C
    15011-1234 CARBURETOR (RIGHT/OUTSIDE)
    CARBURETOR (RIGHT/OUTSIDE)
  • 16021
    16021-1190 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 92001
    92001-1998 BOLT, THROTTLE ADJUST
    BOLT, THROTTLE ADJUST
  • 92005
    92005-1272 FITTING, T, TYPE
    FITTING, T, TYPE
  • 92005A
    92005-1288 FITTING
    FITTING
  • 92005B
    92005-1306 FITTING
    FITTING
  • 92009
    92009-1262 SCREW
    SCREW
  • 92009A
    92009-1597 SCREW
    SCREW
  • 92009B
    92009-1632 SCREW, 4X18
    SCREW, 4X18
  • 92015
    92015-1259 NUT, FLANGED, 5MM
    NUT, FLANGED, 5MM
  • 92022
    92022-1199 WASHER, 6.1X11X0.8, POLYACETAL
    WASHER, 6.1X11X0.8, POLYACETAL
  • 92037
    92037-1194 CLAMP, TUBE
    CLAMP, TUBE
  • 92059
    92059-1029 TUBE, FUEL, 7.3X12.5X200
    TUBE, FUEL, 7.3X12.5X200
  • 92059A
    92059-1738 TUBE, 7X11X45
    TUBE, 7X11X45
  • 92081
    92081-1620 SPRING, THROTTLE ADJUST UPPER
    SPRING, THROTTLE ADJUST UPPER
  • 92081A
    92081-1621 SPRING, THROTTLE ADJUST LOWER
    SPRING, THROTTLE ADJUST LOWER
  • 92081B
    92081-1622 SPRING, THROTTLE ADJUST CENTER
    SPRING, THROTTLE ADJUST CENTER
  • 92143
    92143-1265 COLLAR, 4X5.2X9.6
    COLLAR, 4X5.2X9.6
  • 92144
    92144-1518 SPRING, STARTER LEVER
    SPRING, STARTER LEVER
  • 92150
    92150-1416 BOLT
    BOLT
  • 92170
    92170-1051 CLAMP, TUBE
    CLAMP, TUBE
  • 92190
    92190-1053 TUBE, 7.3X12.5X80
    TUBE, 7.3X12.5X80
  • 92190A
    92190-1157 TUBE, STARTER SPRING
    TUBE, STARTER SPRING
