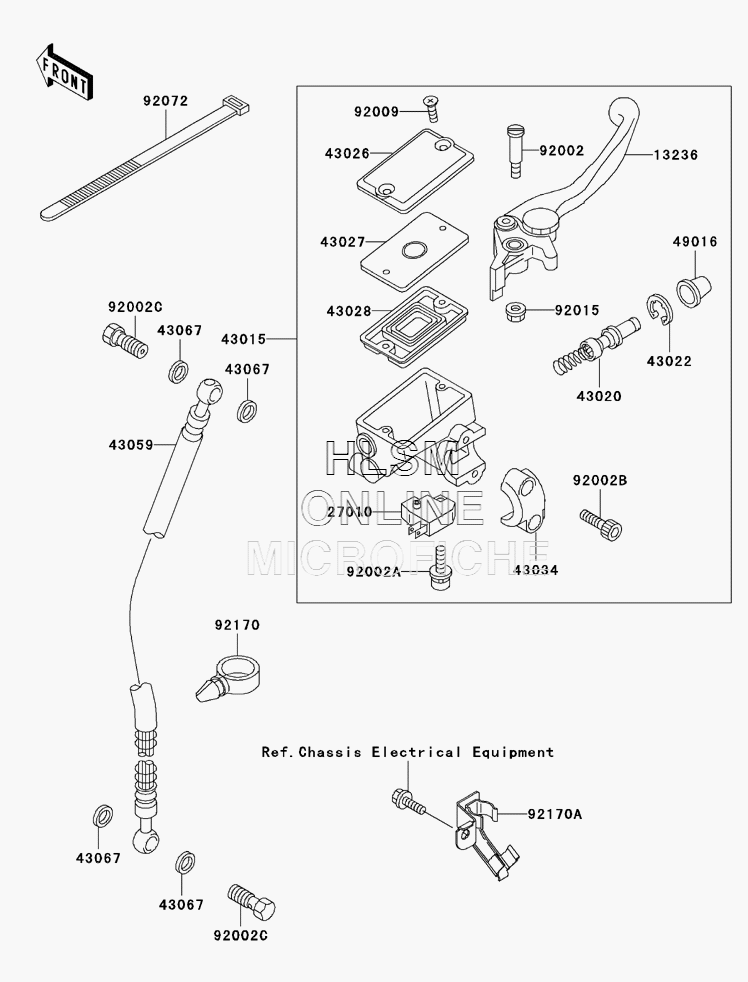

BRAKE - MASTER CYLINDER - FRONT для Kawasaki NINJA 500R - 2001 года выпуска`
-
№АртикулНазвание
-
1323613236-1185 LEVER, COMP, FRONT BRAKELEVER, COMP, FRONT BRAKE
-
2701027010-1170 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-1479 CYLINDER, ASSY, MASTER, FRONTCYLINDER, ASSY, MASTER, FRONT
-
4302043020-1056 PISTON, COMP, BRAKE, FRONTPISTON, COMP, BRAKE, FRONT
-
4302243022-1010 STOPPER, BRAKE, PISTONSTOPPER, BRAKE, PISTON
-
4302643026-1076 CAP, BRAKECAP, BRAKE
-
4302743027-1055 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
4302843028-1058 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4303443034-1053 HOLDER, BRAKE, MASTER CYLINDERHOLDER, BRAKE, MASTER CYLINDER
-
4305943059-1860 HOSE, BRAKE, FRONTHOSE, BRAKE, FRONT
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4901649016-1044 COVER, SEAL, MASTER CYLINDERCOVER, SEAL, MASTER CYLINDER
-
9200292002-1322 BOLT, LEVER SET (BLACK)BOLT, LEVER SET (BLACK)
-
92002A92002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002B92002-1324 BOLT, SOCKET, 6X20 (BLACK)BOLT, SOCKET, 6X20 (BLACK)
-
92002C92002-1907 BOLT, OIL, L=23BOLT, OIL, L=23
-
9200992009-1458 SCREW, 4MMSCREW, 4MM
-
9201592015-1233 NUT, FLANGED, 6MM (BLACK)NUT, FLANGED, 6MM (BLACK)
-
9207292072-1195 BAND, L=202BAND, L=202
-
9217092170-1067 CLAMPCLAMP
-
92170A92170-1499 CLAMP, HOSECLAMP, HOSE
