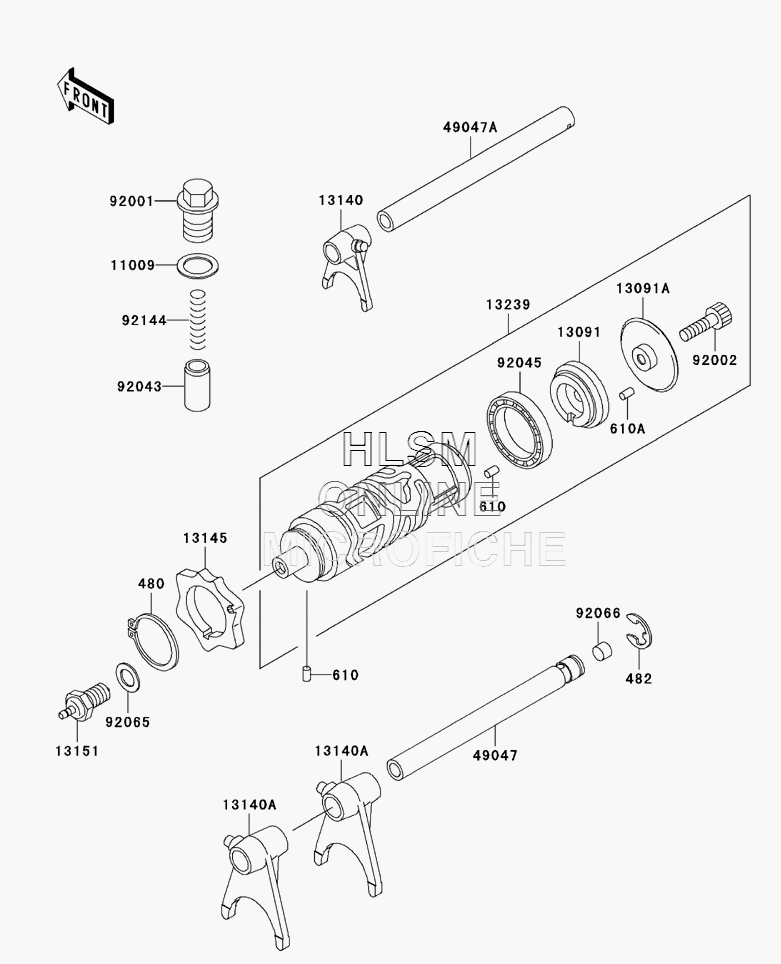

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki NINJA 250R - 2001 года выпуска`
-
№АртикулНазвание
-
480480J3000 CIRCLIP, TYPE, C, 30MMCIRCLIP, TYPE, C, 30MM
-
482482J0100 CIRCLIP, TYPE, E, 10MMCIRCLIP, TYPE, E, 10MM
-
610610A0406 ROLLER, 4X6ROLLER, 4X6
-
610A610A0408 ROLLER, 4X8ROLLER, 4X8
-
1100911009-1008 GASKET, 15.5X22X1GASKET, 15.5X22X1
-
1309113091-1417 HOLDERHOLDER
-
13091A13091-1464 HOLDER, CHANGE DRUMHOLDER, CHANGE DRUM
-
1314013140-1148 FORK, SHIFT, INFORK, SHIFT, IN
-
13140A13140-1149 FORK, SHIFT, OUTFORK, SHIFT, OUT
-
1314513145-1058 CAM, CHANGE DRUMCAM, CHANGE DRUM
-
1315113151-1080 SWITCH, COMP, NEUTRALSWITCH, COMP, NEUTRAL
-
1323913239-1131 DRUM, ASSY, CHANGEDRUM, ASSY, CHANGE
-
4904749047-1067 ROD, SHIFT, OUTROD, SHIFT, OUT
-
49047A49047-1095 ROD, SHIFTROD, SHIFT
-
9200192001-1037 BOLT, NEUTRAL POSITIONBOLT, NEUTRAL POSITION
-
9200292002-1696 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
9204392043-076 PINPIN
-
9204592045-1152 BEARING, BALL, 6806BEARING, BALL, 6806
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1246 PLUGPLUG
-
9214492144-1580 SPRING, NEUTRAL POSITIONSPRING, NEUTRAL POSITION
